HG-500 Plastic PVC/PE Recycled Milling Pulverizer Machine

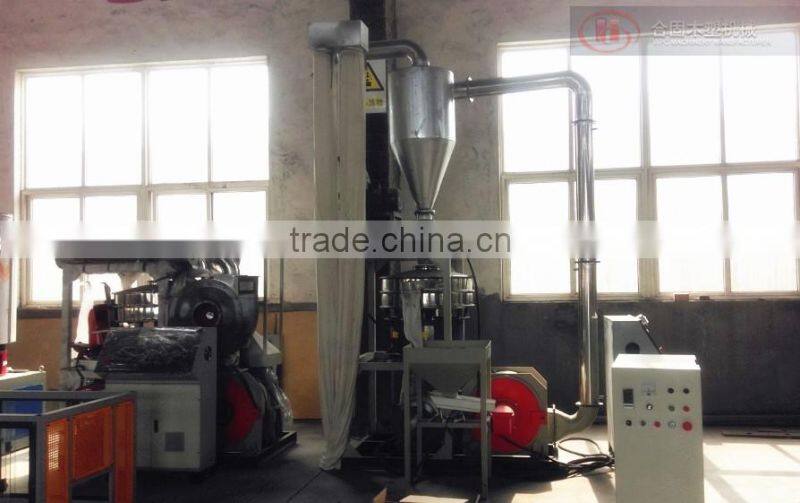

HG-500 Plastic PVC/PE Recycled Milling Pulverizer Machine photo-1
US$ 8,000 - 11,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HEGU
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao CHINA
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name HEGU
Model Number HG-500
Use Waste Plastic Crusher
Plastic Type PVC
Shaft Design Single
Power 37kw
Capacity 200-300kg/h
Voltage 380V/50Hz/3Phase or customerized
Power(W) 42kw
Dimension(L*W*H) 5900*1450*2900mm
Weight 1200kg
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application of HG-500 Plastic PVC/PE recycled milling pulverizer machine

HG series Plastic PVC/PE recycled milling pulverizer machine made by Qingdao Hegu Wood Plastic Machinery Co., Ltd is mainly used to crush PVC and PE granules of thermoplasticity plastic and rubber The granules can be directly used for wpc extrusion.

Main Features on PVC/PE recycled milling pulverizer machine

1)New disk design with high-yield,strong resistance and the life if this grinding disk is double than the ordinary ones.

2)Professional bearings cam reach a high rotation rate.At the same time using only one drive motor to ensure the efficient grinding crash, which greatly saves time and operation of machinery and control engineering.

3)Installation and maintenance is easy,open the door to cover clean-up.

4)Milling process of the whole seal,without dust leakage.

Video play address of PVC milling pulverizer machine

MP4: /play/u/435498305/p/1/e/6/t/1/47965040.mp4

SPECIFICATION ON HG-50 PLASTIC PVC PE RECYCLECD PULVERIZER MACHINE
Main motor power
37kw
Capacity (PVC 40-100mesh)
220kg/h
Contactor
ABB brand
Material of conveying pipe
Stainless steel
Cutter head
1 set, external diameter 483±1mm
Toothed plate
12 pieces, high quality alloy steel
Moving blade
24 pieces, high quality alloy steel
Motor RPM
2950
Vee belt
B type
Air blower power
3kw
Output powder
40~100mesh PVC, 200~300kg/hour
Cyclone device
1 set
Cooling straight pipe
1 set, diameter 190mm made of stainless steel.
Detailed Images
Model
HG-400
HG-500
HG-600
Main motor power
30
37
45
Max. milling capacity
120kg/h
300kg/h
380kg/h

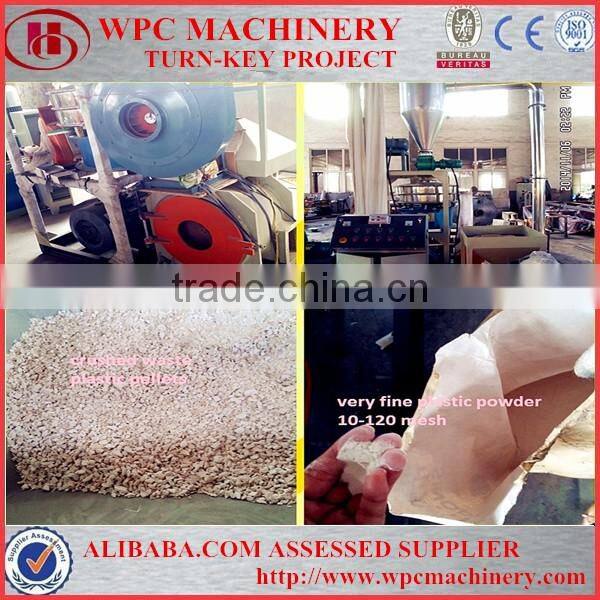

Products show

Plastic crusher for large pipes or profiles, film, bottles, etc

Wood chipper machine for wpc product wood material.

PVC powder miller milling machine

Wood pulverizer (Sawdust, rice husks, plant  straw, etc)

Powder dryer for wood and plastic powders.

       High cold/hot mixture machine powder material mixer

Waste plastic crushing and cleaning machine for PP PE PET etc.

PP PE plastic parallel twin screw recycled granulating pelletizer line

WPC product sanding machine

WPC product brushing machine

WPC product embossing machine

WPC product engraving machine 3D CNC

WPC profile laminating machine

WPC door laminating machine

Contact Information

Sales special seat


Ms. Julia Zhang
Cellphone: +86-15863010505

Whatsapp: +86-15863010505
Skype: live:juliazhang871023

Packing & Delivery
Packaging
Size
1200*1200*1700mm
Weight
800kw



Packaging Details

Standard sea-worthy packaging, wooden pollets with film for moistureproof, chains for fixing the goods, plywood boxes for electrical parts or quick-wear parts, etc. In about 1 20' container.
Our Service

Engineers team

Engineers available to service all over the world, free within one year quality guarantee, and $100/day after one year.

Software updating

Life long technical support. Improving our technologies on machine parts, process and software for much smarter.

24hour online maintain

Anytime on line trouble shooting by telephone and email for saving your time and cost.
