Rubber and Plastic Crushing machine
- 10 Set / Sets per Month
- Qingdao
- T/T
-
Hot Sale Expanded Polystyrene Compactor | Eps Foam Cold Press Recycling Compressing Machine
-
New EPS Densifier / Styrofoam Densifier / Waste EPS XPS Foam Cold Press Recycling Machine
-
EPE EPP XPS EPS Foam Crusher | extruded polystyrene board XPS board crusher
-
EPE EPS EPP XPS Polystyrene Foam Recycling Machine | Plastic Foam Hot Melting Machine
-
Solar Panel Aluminum Frame Removing Dismantling Recycling Machine
-
Drug Glass Bottle Crusher Medicinal Glass Bottle Crusher for Recycling
Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HEGU TONGSAN |
| Model Number: | SWP360 | Use: | Other, bottle, film, palstic pipe, waste plastic crusher | Plastic Type: | Other, PP PE PVC |
| Shaft Design: | Single | Power: | 11kw | Capacity: | 300-400kg/h |
| Voltage: | 220V 380V or as local | Power(W): | 11kw 15HP | Dimension(L*W*H): | 2M*3M*3.5M |
| Weight: | 1500-2000kgs | Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

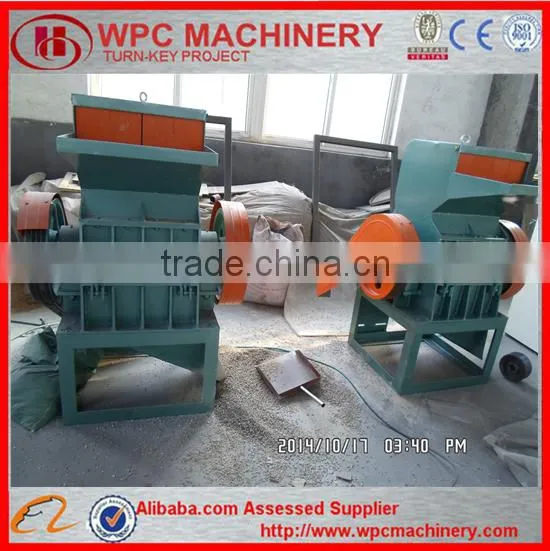

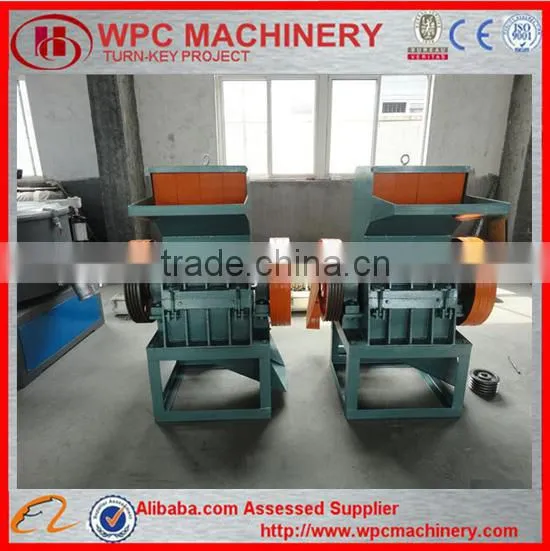

Rubber and Plastic Crushing machine
High output waste plastic rubber crushing machine
Recycled plastic crushing machine
waste rubber plastic products crusher
crushing machine running video:
Technical parameters Rubber and Plastic Crushing machine different moels for your choice:
| Para.⁄ Model | SWP160 | SWP260 | SWP360 | SWP400 | SWP500 | SWP630 |
Rotatry blade dia.(mm) | 160 | 260 | 360 | 400 | 500 | 630 |
| Moving blade speed (rpm) | 480 | 580 | 536 | 404 | 550 | 401 |
| Moving blade piece number | 3 | 3 | 3 | 5 | 12 | 3 |
| Sifter hole dia. | 8 | 10 | 10 | 12 | 10 | 12 |
| Grain size | 3-8 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 |
| Breaking capacity (kg/h) | 60-120 | 250-300 | 300-400 | 300-450 | 400-1000 | 700-1500 |
| Motor power(kw) | 3 | 7.5 | 11 | 15 | 22 | 30 |

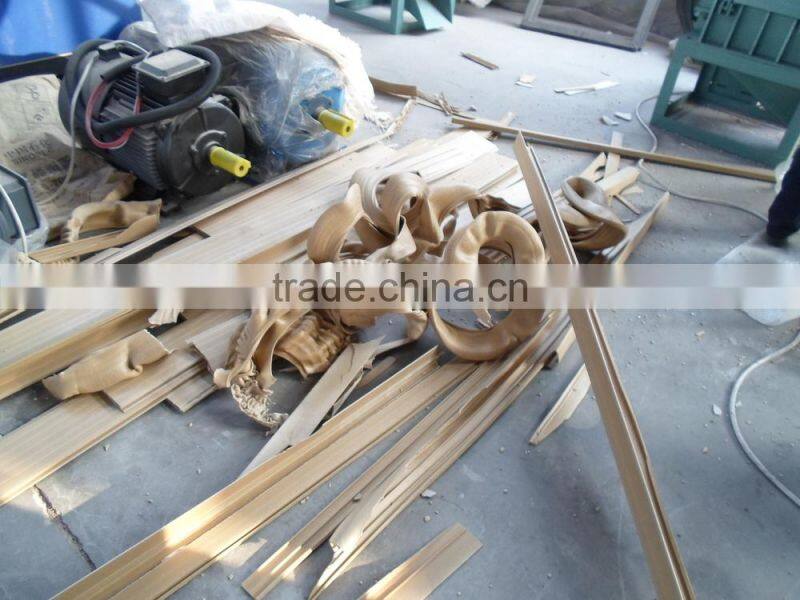

Rubber and Plastic Crushing machine is designed to crush various sorts of plastic and rubber with thermoplasticity such as plastic profile, pipe, rod, thread, film and waste rubber products, The granule can be directly used for extrusion and injection.

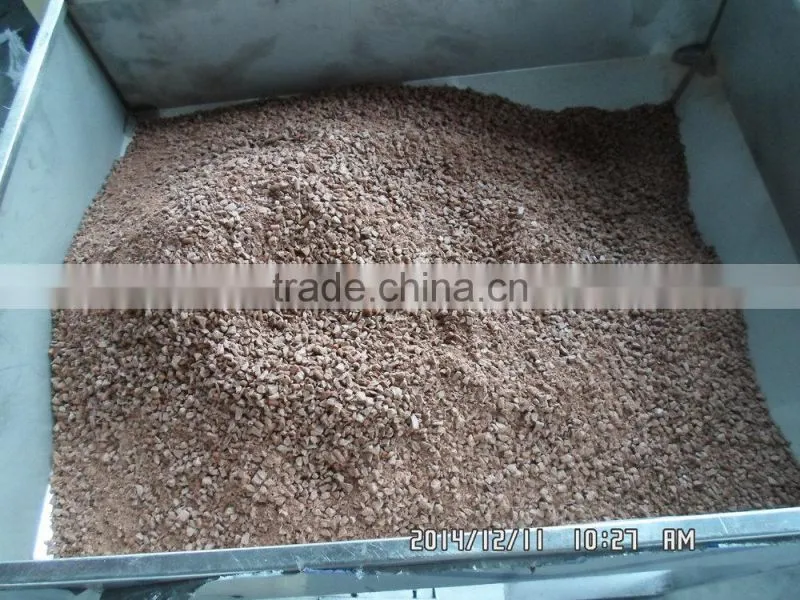

Rubber and Plastic Crushing machine the crusher and recycled plastic pellets can be directly reused in production line
SWP Series Plastic Crusher Plastic recycling machine, the crushed PVC WPC material reused for PVC WPC extrusion machine line

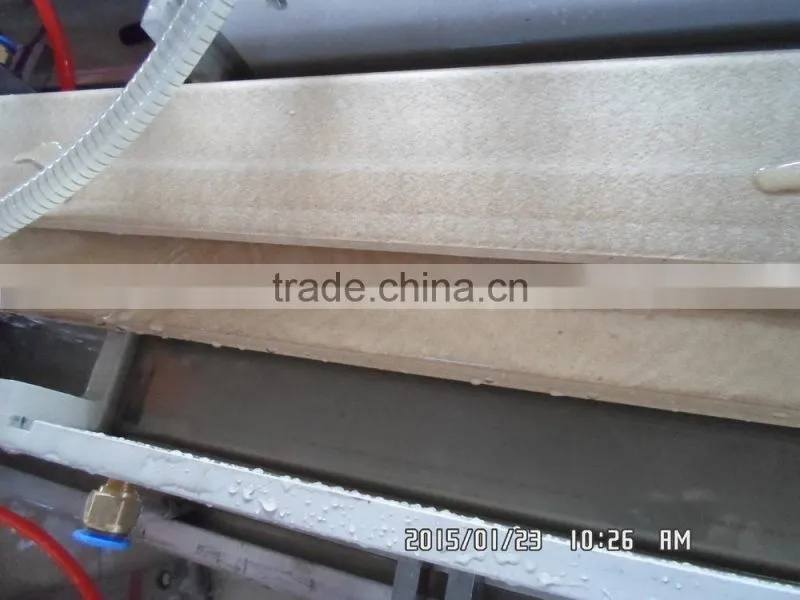

PVC WPC profile extruded products
Guarantee:
1 year (12 months) counting from the machinery installed and tested by our engineer, free change for the broken spare part for free during guarantee period.
Install and test:
Professional engineer will be sent to your company to install, test and teach operator at your factory
Operation book and video:
Operational manual book and video will be sent together with custom clearance documents
Plastic Machines Running Video Channel on YouTube:
/channel/UCLjkWCOZY8FAOFdjsDXQxKQ
Wood Plastic Composite WPC Machines Running Videos on YouTube:
/channel/UCQLX-pDkJgaW23Z4ke3cc1g
We have many WPC product making machine lines in stock, any interest or query, please send an inquiry via this page or contact me by email.
Skype: s88sally
Mobile/ Whatsapp/ Viber: 0086-183-6623-6672
I will always give the earlist reply to you, Thanks!
