Specifications
1.best extruder for Pellet Machines2.inverters to adjust speed
3.clean itself automatically
4.kinds of material
Professional Extruder Food Machinery Manufacturer
Use the advanced technology to produce pellet

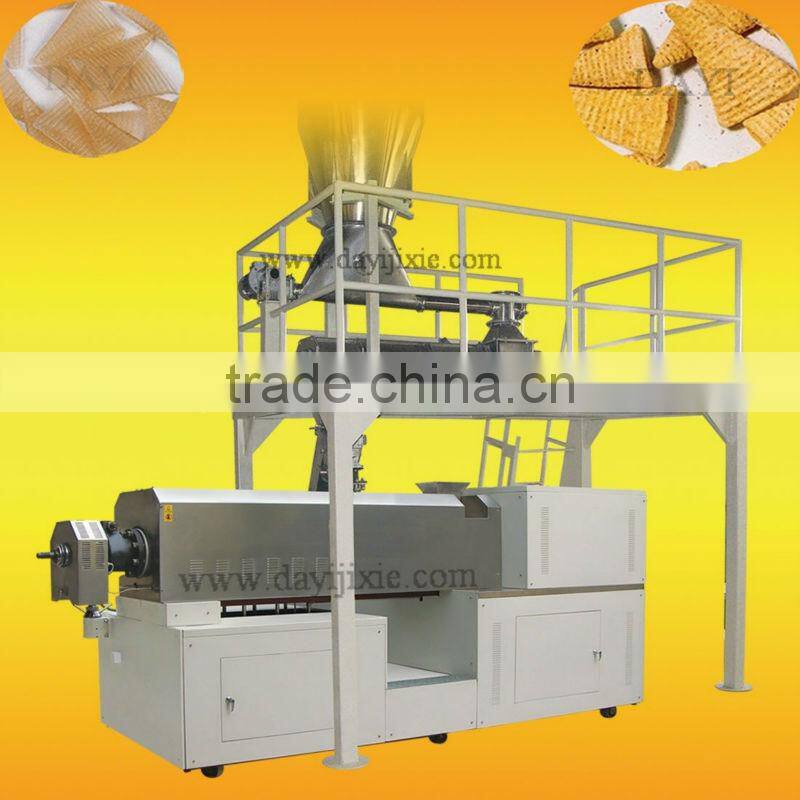

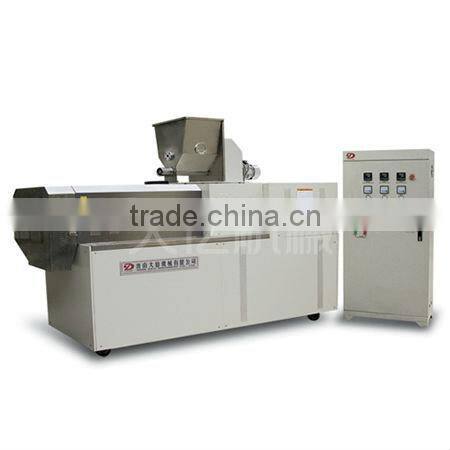

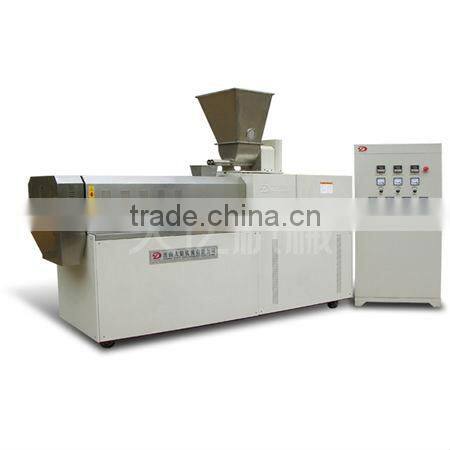

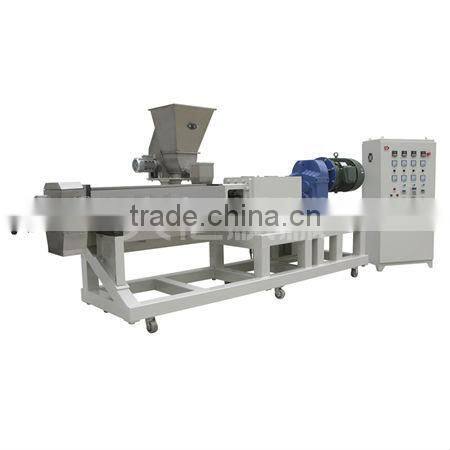

Double Screw Extruder
SLG 65-C
SLG-65CJ
SLG65-D
SLG-65DJ
SLG-70A
Technical Parameter
Model | SLG35-A | SLG65-C | SLG65-D | SLG65-CJ | SLG65-DJ | SLG70-A |
Capacity | 10-30kg/h | 100-150kg/h | 100-150kg/h | 100-150kg/h | 100-150kg/h | 250-300kg/h |
Insatalled power | 9.04kw | 30.45kw | 34kw | 41.45kw | 44.04kw | 65kw |
Power consumption | 6kw | 22kw | 23kw | 29kw | 31kw | 45kw |
Main motor power | 5.5kw | 22kw | 22kw | 30kw | 30kw | 45kw |
Speed style | Inverter | Inverter | Inverter | Inverter | Inverter | Inverter |
Dimension | 2500*700*1600mm | 2600*950*2000mm | 3460*1100*1960mm | 3060*950*2050mm | 3900*1100*1960mm | 4400*1300*2200mm |
Products | Direct extruder/t&teach | Direct extruder | Direct extruder | Pet food/ Breakfast cereal | Pet food/ Breakfast cereal | Pet food/ Breakfast cereal |
Large size double-screw extruder
Model | SLG65-F | SLG85-A |
Capacity | 300-500kg/h | 500-800kg/h |
Insatalled power | 97 kw | 112 kw |
Power consumption | 67 kw | 72 kw |
Main motor power | 75 kw | 90 kw |
Speed style | Inverter | Inverter |
Dimension | 4800*3000*4200mm | 6000*2200*4500mm |
Products | Textured protein | Extrusion food |

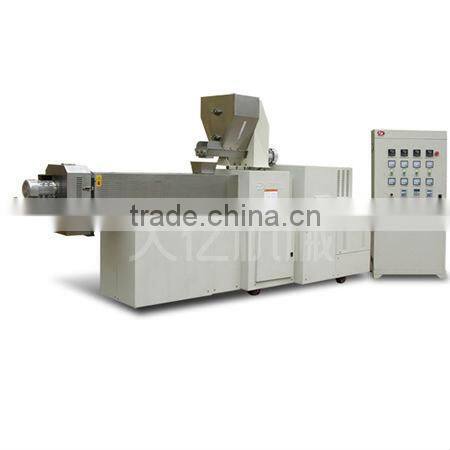

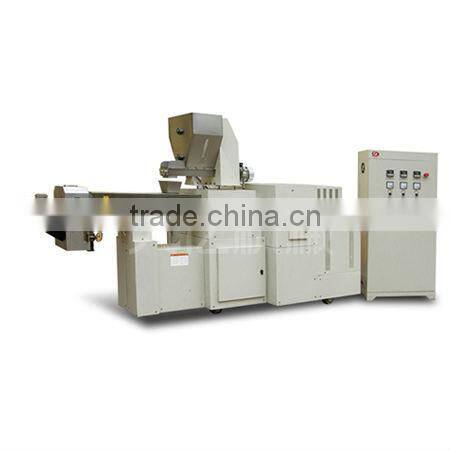

Single Screw Extruder
MCJ-II
MCJ-III

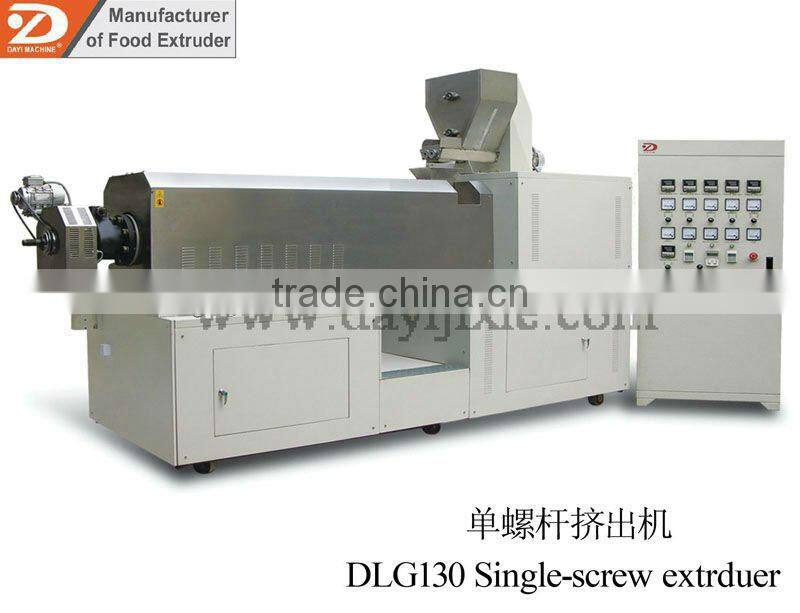

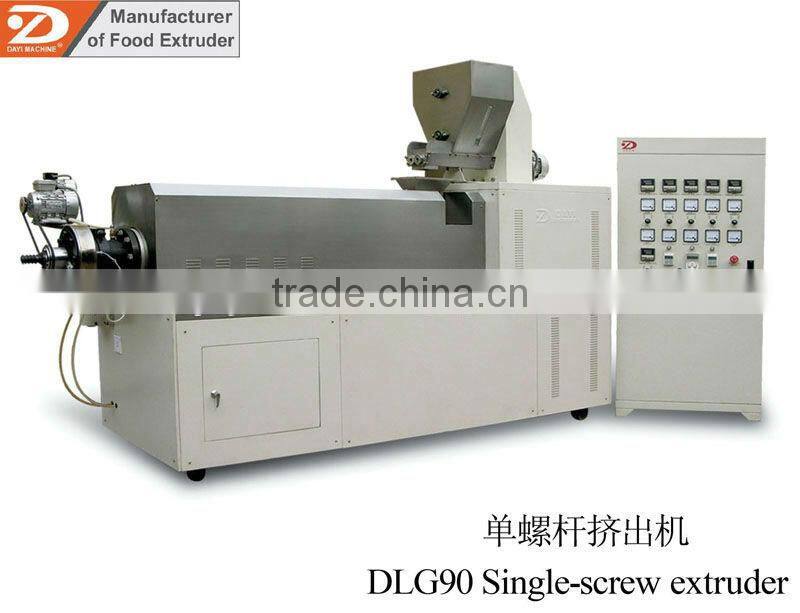

Model | DLG90 | DLG130 | MCJ-II | MCJ-III | BS |
Capacity | 60-85kg/h | 110-140kg/h | 60-85kg/h | 110-140kg/h | 70-80kg/h |
Installed power | 35kw | 62kw | 60kw | 94kw | 10kw |
Power consumption | 24kw | 43kw | 42kw | 66kw | 7kw |
Main motor power | 22kw | 37kw | 37kw | 59kw | 7.5kw |
Speed style | Inverter | Inverter | Inverter | Inverter | Stable speed |
Dimension | 3450*960*2060mm | 4100*1100*2260mm | 3450*1700*3000mm | 4100*1700*3000mm | 1700*1000*1800mm |
Products | Twice extruded/flour food | Twice extruded/flour food | 3D extruded | 3D extruded | Dog chewing food/flour food |
Jinan Dayi Extrusion Machinery Co., Ltd. Is the advanced professional manufacturer of Extrusion Food Machinery in China.
Our single-screw & double-screw extrusion machines have been used to produce a lot of snacks, such as, extrusion leisure snacks, breakfast cereal food, pet food, aquatic feeds, textured proteins, vegetarian meat, etc;
We will serve the best for you, both quality and technology. Contact me~
