Automatic corn flakes Cereals machine
1. Description:
Corn flakes breakfast cereal production line can produce corn flakes which is one kind of nutritional convenient food which is produced by this process line, using grist as basic material, with different shapes, such as, granule, flake, animal, etc. One outstanding characteristic of the breakfast cereal is that it contains abundant compound carbohydrates and dietary fibre, strengthens lots of microelements, such as vitamin and mineral, and also can be added with cocoa and sugar, like honey and maltose. It can be drunk directly after mixed into coffee, milk, yoghourt or functional drink. Children can eat breakfast cereal as sweet crispy snack.
2. Raw materials: adopts corn flour as raw materials

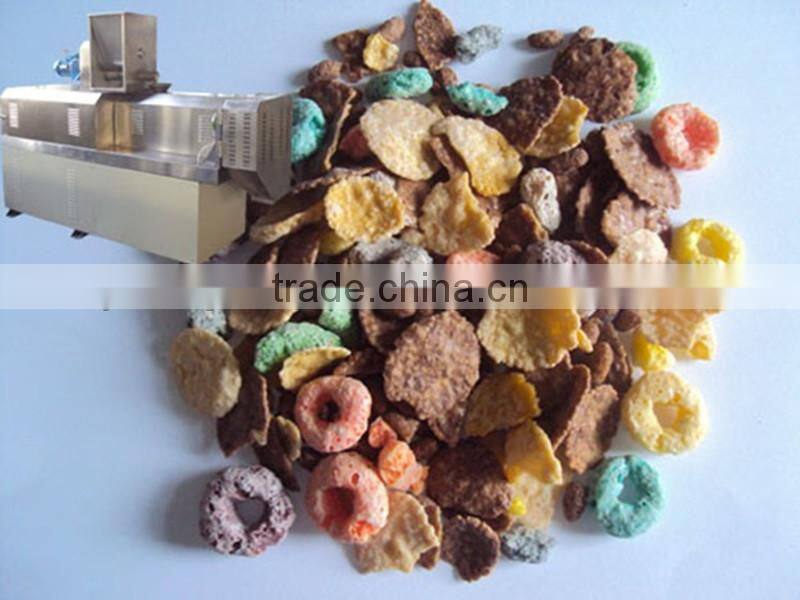

3. Products: This line can be used to produce snacks, cereals by adjusting the moulds from extruder
4. Capacity: 150kg/h, 260kg/h, 500kg/h

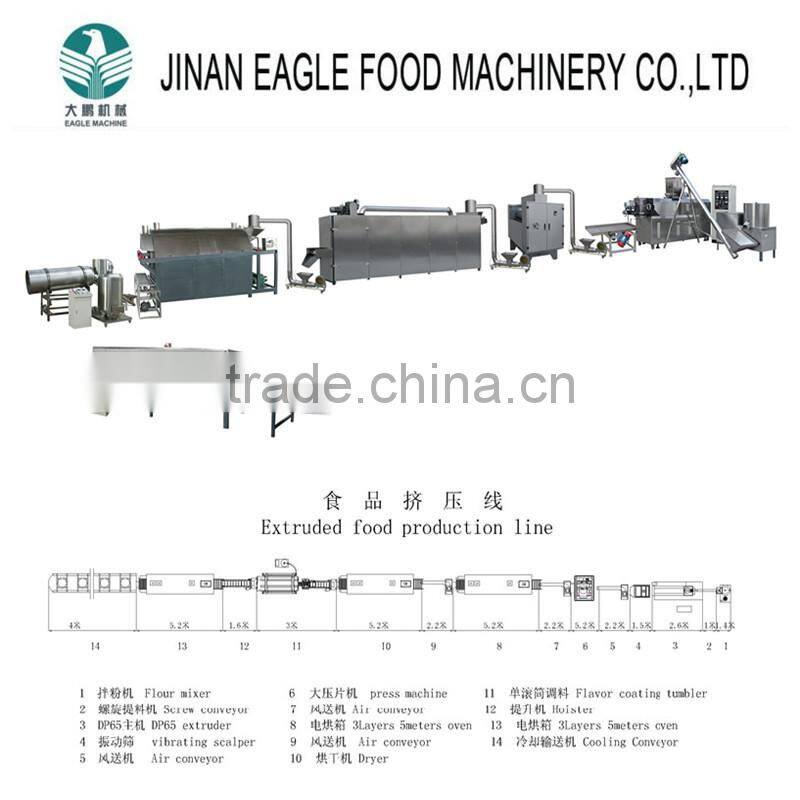

5. Flow chart:
Mixing system---Extrusion system---Drying system—Sugar Spraying system ---Drying system---- Packing system
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
7. Machines Materials: All the machines are made by stainless steel
8. Technical Parameters
Model |
Installed power |
Real power |
Output |
Dimension |
DP-65 |
140kw |
90kw |
150kg/h |
39000x1200x2200mm |
DP-70 |
160kw |
120kw |
200kg/h |
41000x1500x2200mm |
DP-85 |
190kw |
140kw |
300kg/h |
43000x3500x4300mm |
