snacks food extruder processing line
1.Description:
Snacks extruder adopts corn, rice, wheat, oat, barley etc as ingredients to make puffs snack. Through friction of screw and barrel, the grains are cooked in the extruder Barrel. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
2. Raw materials For Snacks Food:
Adopts corn, rice, wheat, oat, barley, millet, sorghum etc as main ingredients.
Other material: salt sugar powder, flavor material, cocoa powder and so on….

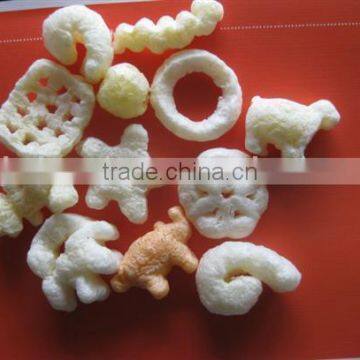

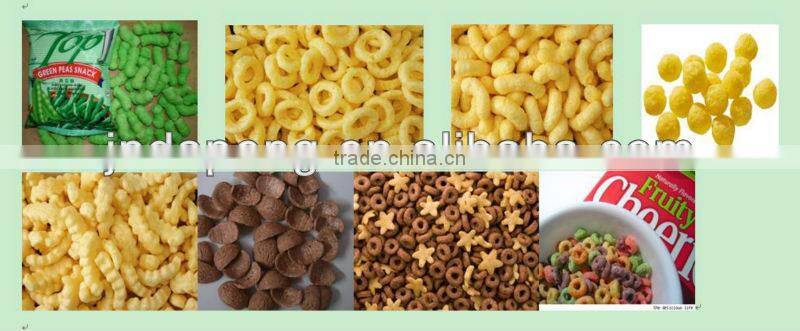

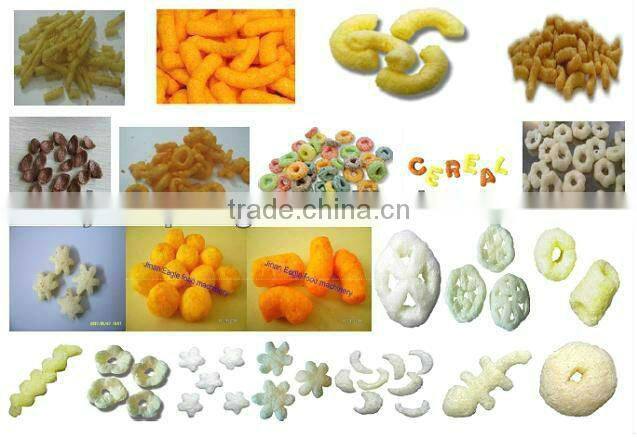

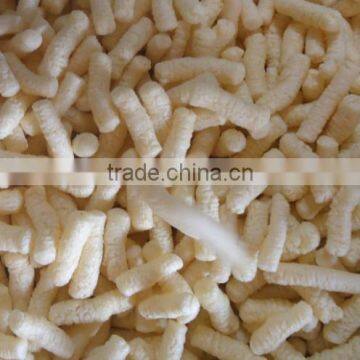

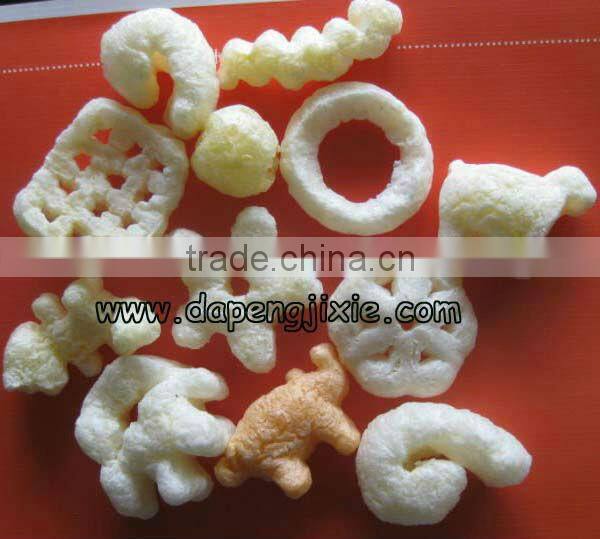

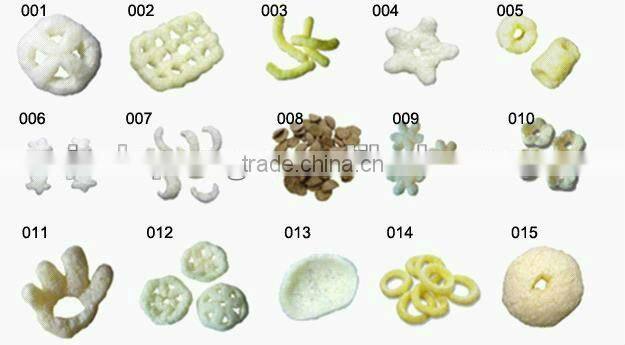

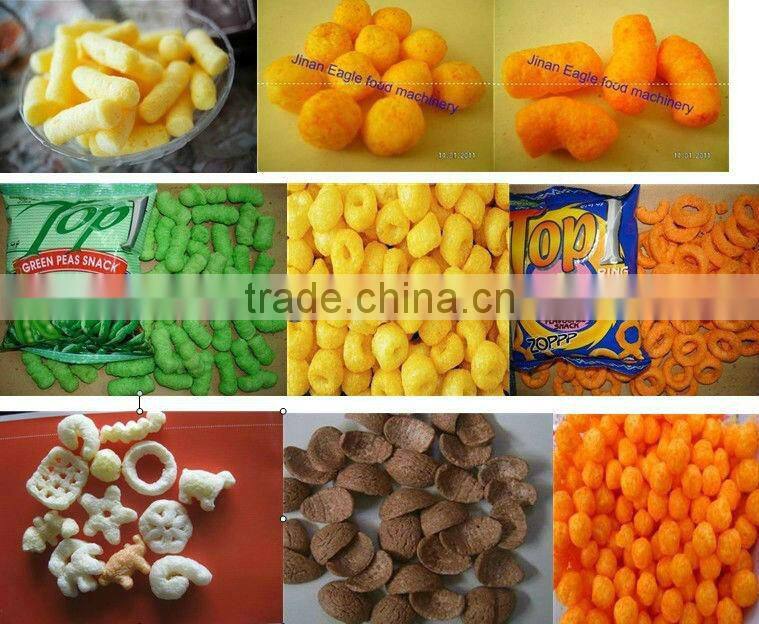

3. Snacks food Products shapes:
Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder
4. Corn snacsk food extruder Capacity:
100-150kg/h, 200-240kg/h, 500kg/h

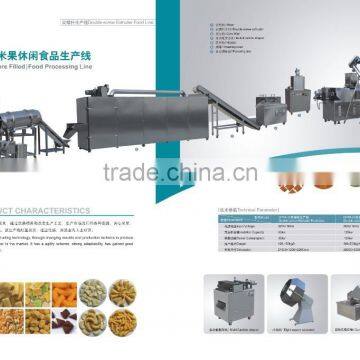

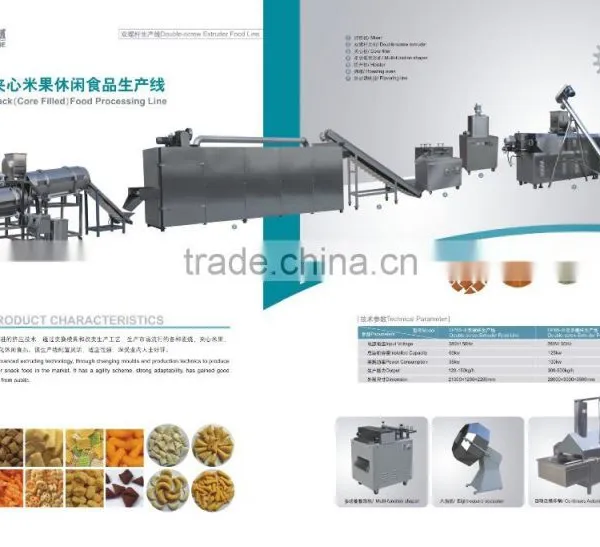

5. Puffed snacks food equipment Flow chart:
Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system
6. China standard industrial Voltage for the machine:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers’ Local voltage according to different countries (400v 415v 480v…….).
7. Machines Materials:
All the Snacks food machines are made by stainless steel, this whole line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
8. Technical Parameters
Model | Installed power | Real power | Output | Dimension |
D65 | 70kw | 40kw | 100-150kg/h | 20000x1200x2200mm |
DP70 | 100kw | 70kw | 200-240kg/h | 25000x1500x2200mm |
DP85 | 200kw | 150kw | 400-500kg/h | 30000x3500x4300mm |
Q1: If we buy machines, what is the after-sale service?
Jinan Eagle Food machinery manufacture will send the engineer to buyer’s factory. Offer the trainee program, start the related food production as customer request.
Q2: If machines wearable parts need to change, what should we do?
Jinan Eagle Food machinery manufacture will offer the wearable parts all the time. And offer the on-line video instruction for the operation.
Q3: What is the payment terms if we want to buy the machines?
Usually it is 30% by T/T, pay the balance by T/T before delivery or L/C at sight
