lead free soldering
Specification

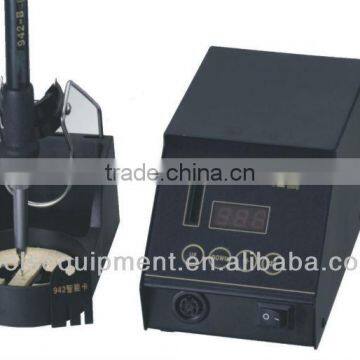

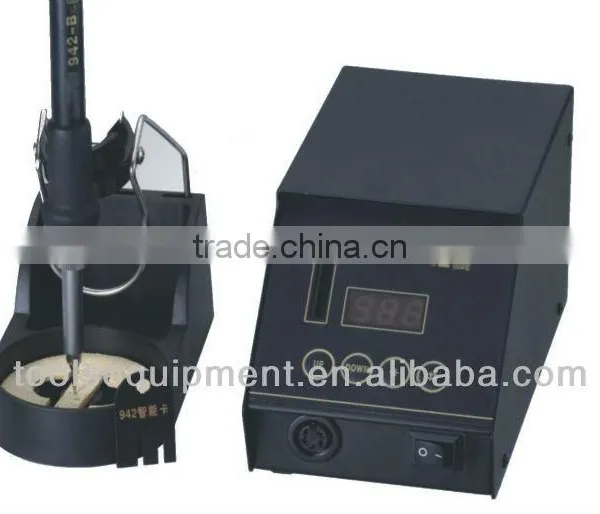

Model No.:WILLDONE 942ESD
Input Voltage/Frequency:AC220V/50Hz, AC110V/60Hz
Power Consumption:80W
Temperature Range:200~450 (392~842)
Temperature Stability:±5 (no load)
Output Voltage:AC27V
Heating:70W/27V ceramic
Tip to Ground Potential:≤2MV
Tip to Ground Resistance:≤2Ω
Dimension:L188*W100*H106mm
Weight:2550g
Function
*Temperature locking by control card to prevent inadvertent changes
*Range of temperature limits can be set according to the demands; if temperature exceeds the limit set by the operator, the unit sounds the alarm.
*Calibrate temperature manually
*Save energy
*ESD Safe by design
Feature
1) Rapid heating and quick heat recovery suit for lead free soldering.
2) Imported heating element with long life time.
3) High quality, moderate price, two years warranty for main body.
4) Patent product, own brand
