electric screwdriver brushless
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | / | |
| Model Number | GE-3L, GE series | Power Source | Electricity | |
| Type | Precision Screwdriver | Rated Voltage | 220V/110V | |
| Frequency | 50/60HZ | Rated Input Power | / | |
| Max. Torque | 0.3N.m | No-Load Speed | 1000 r.p.m | |

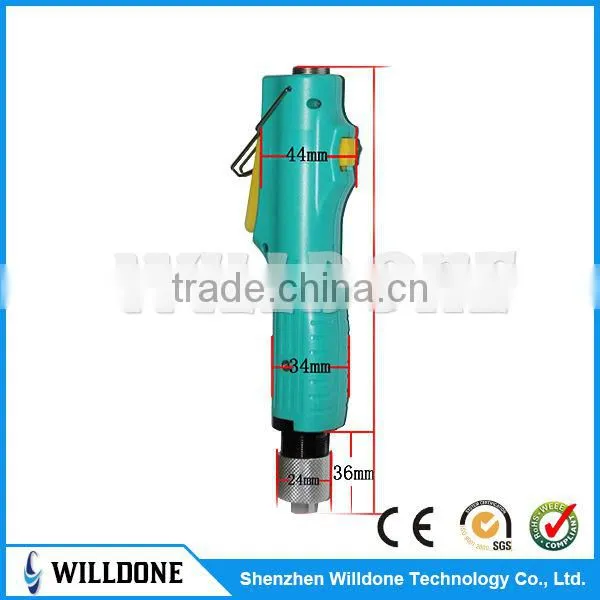

| Dimensions | 235/236mm x diameter37 | Weight | 280g |
Product Description
High quality electric Screwdriver brushless GH-5PL
1) with the impoted motor, it is very stable quality, long life, good function
2) Low vibration, low niose, is speical used for dust-free working enviroment, very green product
3) magnetic induction system built-in, very sensitive to brake with low impact force, it can not be broken after being used a long time
4) power supply is very compact and light, 100V-250V
5)power supply cord is made of silicon material and it is three pin cords
6) torque distance is designed accurately, torque force is also accurate, which is designed for mobile phone, digital camera,
7)lever start type or push start type.
Model number | GH-5PL | GH-10PL | GH-15PL | GH-20PL | GH-25PL | |
Input Voltage | DC-30V | |||||
Torque | (Kgf.cm) | 0.5-5 | 1-10 | 2-15 | 3-20 | 5-25 |
(lbf.in) | 0.44-4.4 | 0.88-8.8 | 1.76-13.2 | 2.64-15.84 | 4.4-22 | |
(N.m) | 0.049-0.49 | 0.098-0.98 | 0.196-1.47 | 0.294-1.764 | 0.49-2.45 | |
Torque accuracy | ±3% | ±3% | ±3% | ±3% | ±3% | |
Torque adjustment | stepless | stepless | stepless | stepless | stepless | |
Start Mode | Push start | Push start | Push start | Push start | Push start | |
Rotation speed w/o load(r.p.m) | 1000 | 0~1200 | 0~1200 | 0~1200 | 0~1200 | |
Current w/o load(A) | 0.3A | 0.3A | 0.3A | 0.3A | 0.3A | |
Screwddia.(mm) | Machine screw | 1.6-2.6 | 2.0-3.0 | 2.3-3.5 | 2.6-4.0 | 2.6-4.0 |
Tapping screw | 1.6-2.0 | 1.6-2.6 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | |
bits | dia.4 | dia.5.00/dia.6.35 | dia.5.00/dia.6.35 | dia.5.00/dia.6.35 | dia.5.00/dia.6.35 | |
High quality electric Screwdriver brushless GH-5PL
