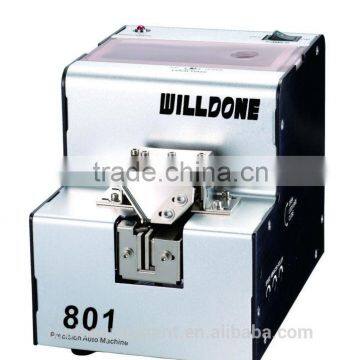

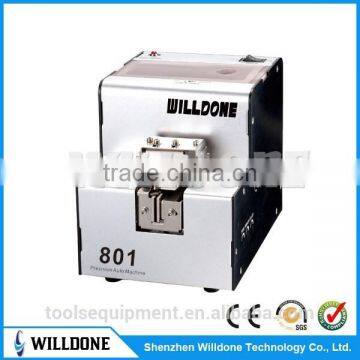

Automatic Screw Feeder
801 – C and 801 screw feeder is our company new R&D products base on 800/800 C screw feeder, 801 and 801 – C screw feeder are improved and optimized on material selection and mechanical structure. First of all make some improvement according to the orbit easy deformation, not smooth, block the screws, vulnerable etc shortcomings;801 – C and 801 orbit is choosing Japan imported stainless steel materials, processing after its material hardness up to over 60 degrees, good toughness and no deformation.
The high quality stainless steel material after finishing, smooth, assurance screw can smooth come out.
Screw feeder vibration part is an area of high malfunctioning, we will this with our patent technology improved (the technology temporary not open, this not as a detailed description), 801 – C and 801 performance and stability is ascension.
1) Imported orbit materials, good toughness, and smooth, not block screw, durable.
2) Patent design vibrator, vibrator always vibration, never stop.
3) Guide Tsui fluctuation adjusted by screw, convenient and accurate, adjust distance can be accurate to 0.01 mm.
4) Brush fluctuation adjusted by screw, very convenient.
5) 801 – C type with screw counting function: set A single product Shared screw quantity, cycling and counting ways to additive or decline. B lock screws total records, can count a machine total records a period out of the screw.
6) Adjust orbit randomly, suitable for screw diameter range 1.0 mm to 5.0 mm, it also suitable for diameter 1.0 mm screw.
Technical parameters
Model 801
Dimension 123(W)×181(D)×145(H)mm
Weight 2.9Kg
DC Power supply AC220V, DC12V500mA AC ADAPTER
thread form : M screw & self-tapping
screw material ferrous metal
Screw length range less 20mm
orbit adjustment range 1.0mm-5.0mm
continuous pickup speed 1.5S/pc
Screw counter amount 9999(pcs)
Total accumulative amount 9999*9999(pcs)
Screw counter function
Tsui up and down adjust with screw stem ,more easier
Brush up and down adjust with screw stem, more easier
The Tsui and brush height of 801/801-C screw feeder can fine-tuning ,
The Tsui and brush height of 800/800-C screw feeder can’t fine-tuning
Automatic screw feeder
