Mma Tig Welding Electrode Used for Mma Tig Welding Machine

Mma Tig Welding Electrode Used for Mma Tig Welding Machine photo-1
Mma Tig Welding Electrode Used for Mma Tig Welding Machine photo-2
Mma Tig Welding Electrode Used for Mma Tig Welding Machine photo-3
US$ 0.2999 - 9.999 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shaanxi, China
Brand Name:
YUHENG
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin OR Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shaanxi, China
Brand Name YUHENG
Model Number WT20-5
Arc Current a
Pulse Frequency a
Pilot Arc Current a
Rated Duty Cycle a
Dimensions 1.0 or 1.6/2.0/2.4/3.2/4.0/5.0/6.3/8.0/10mm, 1.0 or 1.6/2.0/2.4/3.2/4.0/5.0/6.3/8.0/10mm
Usage welding
Voltage a
Power(W) a
Certification tuv
After-sales Service Provided No overseas service provided

mma tig welding
WT10/20/30/40,WP,WZ3/8,WL10/15/20,WCe20 wolfram mma tig welding
Applications of all types tungsten mma tig welding electrodes  0.5/0.7/0.8/1.0/1.6mm

PURE Tungsten Color Coded GREEN
PURE Tungsten Color Coded GREEN, are best suited for AC Tig welding applications.
Pure Tungsten, Green, AWS Class EWP, AC welding applications. Least expensive of all electrodes. Applications: aluminum and magnesium alloys.

THORIATED Tungsten Color Code RED, YELLOW, or ORANGE
THORIATED Tungsten Color Code RED, YELLOW, or ORANGE, are best suited for DC Tig welding applications.
2% Thoriated, Red, AWS Class EWTH-2, DC welding applications. The most common type of electrode used today. Applications: carbon & stainless steel, nickel alloys and titanium.

LANTHANATED Tungsten Color Code BLACK, GOLD or BLUE
LANTHANATED Tungsten Color Code BLACK, GOLD or BLUE, are suitable for AC & DC welding applications.
Lanthanated, Black, AWS Class EWLA-1.5, AC & DC welding applications. Non-Radioactive Good arc characteristics in ac/dc applications. Applications: carbon & stainless steel,nickel alloys and titanium.

CERIATED Tungsten Color Code GREY or ORANGE
CERIATED Tungsten Color Code GREY or ORANGE, are best suited for low amperage DC welding applications.
Ceriated, Grey, An excellant alternative to Thoriated tungsten especially in low amperage welding. Takes 10% less current to start and has a very stable arc.

ZIRCONIATED Tungsten Color Code WHITE or BROWN
ZIRCONIATED Tungsten Color Code WHITE or BROWN, are best suited for AC Tig welding applications.
Zirconiated, White, AC Welding applications. Better start up than Pure Tungsten, Balls up well and has a more stable arc than Pure Tungsten. Better current carrying capacity and high resistance to contamination during welding.

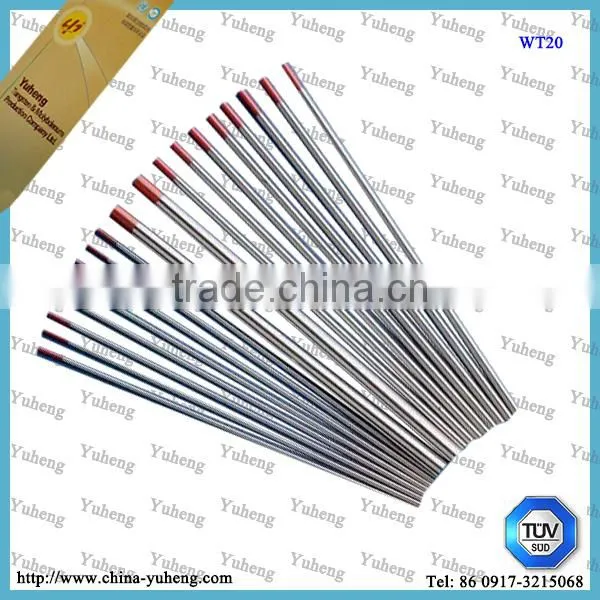

 Photos of wt20 red welder mma tig welding electrodes
 mma tig welding electrode used for mma tig welding machine

mma tig welding electrode used for mma tig welding machine


Packaging & Shipping

 1) 10 pieces china tungsten electrode welding put into 1 plastic box, or plastic bag is available as client's requirement.

 2) Then packed in one carton box.

 3) Shipping by Air or Express as following for refer and option,  within One Week from China to Client's office



DHL           UPS               FEDEX            EMS                    SF               TNT or Other way as client request
