Home > Industrial Equipment & Components > Welding & Soldering Supplies > Welding Rod > ISO6848 WT20 2% THORIATED Welder Wolfram Elektroda

ISO6848 WT20 2% THORIATED Welder Wolfram Elektroda

Shaanxi Yuheng Tungsten & Molybdenum Industrial Co., Ltd.
ISO6848 WT20 2% THORIATED Welder Wolfram Elektroda thumbnail-1
ISO6848 WT20 2% THORIATED Welder Wolfram Elektroda thumbnail-2
ISO6848 WT20 2% THORIATED Welder Wolfram Elektroda thumbnail-3
ISO6848 WT20 2% THORIATED Welder Wolfram Elektroda photo-1

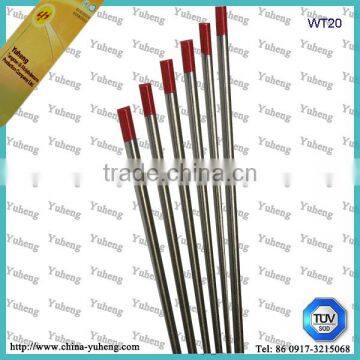

ISO6848 WT20 2% THORIATED Welder Wolfram Elektroda photo-2
ISO6848 WT20 2% THORIATED Welder Wolfram Elektroda photo-3
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
YUHENG
Model Number:
WT20
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin OR Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name YUHENG
Model Number WT20
Material Tungsten
Length 50/75/150/175mm, 50/75/150/175mm
Operating Current a
Welding Current a
Operating Temperature a
Diameter 1.0/1.6/2.0/2.4/3.2/4.0/5.0/6.3/8.0/10mm
Application tig mig welding, for TIG MIG welding of carbon & stainless steel etc



wolfram elektroda
Tungsten material Non-Radioactive wolfram elektroda
Applications of all types tungsten wolfram elektroda

PURE Tungsten Color Coded GREEN
PURE Tungsten Color Coded GREEN, are best suited for AC Tig welding applications.
Pure Tungsten, Green, AWS Class EWP, AC welding applications. Least expensive of all electrodes. Applications: aluminum and magnesium alloys.

THORIATED Tungsten Color Code RED, YELLOW, or ORANGE
THORIATED Tungsten Color Code RED, YELLOW, or ORANGE, are best suited for DC Tig welding applications.
2% Thoriated, Red, AWS Class EWTH-2, DC welding applications. The most common type of electrode used today. Applications: carbon & stainless steel, nickel alloys and titanium.

LANTHANATED Tungsten Color Code BLACK, GOLD or BLUE
LANTHANATED Tungsten Color Code BLACK, GOLD or BLUE, are suitable for AC & DC welding applications.
Lanthanated, Black, AWS Class EWLA-1.5, AC & DC welding applications. Non-Radioactive Good arc characteristics in ac/dc applications. Applications: carbon & stainless steel,nickel alloys and titanium.

CERIATED Tungsten Color Code GREY or ORANGE
CERIATED Tungsten Color Code GREY or ORANGE, are best suited for low amperage DC welding applications.
Ceriated, Grey, An excellant alternative to Thoriated tungsten especially in low amperage welding. Takes 10% less current to start and has a very stable arc.

ZIRCONIATED Tungsten Color Code WHITE or BROWN
ZIRCONIATED Tungsten Color Code WHITE or BROWN, are best suited for AC Tig welding applications.
Zirconiated, White, AC Welding applications. Better start up than Pure Tungsten, Balls up well and has a more stable arc than Pure Tungsten. Better current carrying capacity and high resistance to contamination during welding.



 Photos of  wt20 wolfram elektroda
 ISO6848 WT20 2% THORIATED welder wolfram elektroda

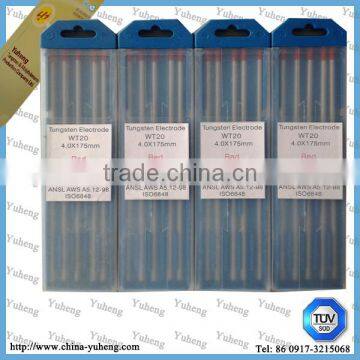

 ISO6848 WT20 2% THORIATED welder wolfram elektroda


Packaging & Shipping

 1) 10 pieces china tungsten electrode welding put into 1 plastic box, or plastic bag is available as client's requirement.

 2) Then packed in one carton box.

 3) Shipping by Air or Express as following for refer and option,  within One Week from China to Client's office



DHL           UPS               FEDEX            EMS                    SF               TNT or Other way as client request











Our Services

We always pursue cooperation, win-win strategy and honesty to work with our customers, Truly high technology, technolgy innovation as the driving force for thre purpose of excellent quality, and honesty as a creed. Dedicated to new and old customer to provide quality products and good serivces
To provide our best service for each clients, no matter where they come from.



Company Information



Shaanxi Yuheng Tungsten& Molybdenum Industrial Co., Ltd is located in Baoji city, China.
It is specialized in the research and produce nonferrous metals such as Tungsten( Tungsten/ tig welding wolfram electrodes have WT10/WT20/WT30/WT40/WL10/WL15/WL20/WP/WZ3/WZ8/WY20), Molybdenum, Titanium,

those alloys for more than 17years in this line. And we have more than 8years export experience in the world.
Especially in South Korean, USA and Europe market such as poland, UK, Germany etc

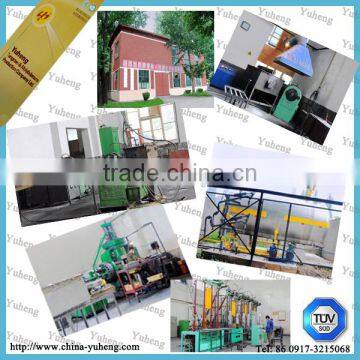

Our facotry tig mig welding wolfram rod







FAQ



Attention:
Chemical Certificates available if needed. Recommended for short welding cycles on low-amp, DC orbital tube, pipe, thin sheet and small part applications.  Provides low current and arc ignition with good arc stability.  This tungsten is not recommend for higher applications.  If you are in need of other tungsten, Thoriated, Lanthanated, Pure, Zirconiated, Tri-Mix, etc, we have it all.
Non-radioactive tungsten with similar performance as 2% Thoriated tungsten.
Offers stability and consistency not seen on most other types of tungsten. Results include, increase in weld quality and dramatic increase in service.
