Tig Tungsten Electrode 2.4mmx175mm for Cutting and Welding

Tig Tungsten Electrode 2.4mmx175mm for Cutting and Welding thumbnail-1
Tig Tungsten Electrode 2.4mmx175mm for Cutting and Welding thumbnail-2
Tig Tungsten Electrode 2.4mmx175mm for Cutting and Welding thumbnail-3
Tig Tungsten Electrode 2.4mmx175mm for Cutting and Welding thumbnail-4
Tig Tungsten Electrode 2.4mmx175mm for Cutting and Welding photo-1
Tig Tungsten Electrode 2.4mmx175mm for Cutting and Welding photo-2
Tig Tungsten Electrode 2.4mmx175mm for Cutting and Welding photo-3
Tig Tungsten Electrode 2.4mmx175mm for Cutting and Welding photo-4
US$ 0.2999 - 5.999 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
yuheng
Model Number:
wt10/20/30/40/,wl10/15/20,wz3/wz8,wp
Contact Supplier Request Quote Chat Now
Shaanxi Yuheng Tungsten & Molybdenum Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai /Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name yuheng
Model Number wt10/20/30/40/,wl10/15/20,wz3/wz8,wp
Material Tungsten
Length 75/80/150/175mm, 75/80/150/175mm
Operating Current a
Welding Current a
Operating Temperature 25
Diameter 1.0/1.6/2.0/2.4/3.0/3.2 mm, 1.0/1.6/2.0/2.4/3.0/3.2 mm
Application Electrodes for Tig welding and Plasms welding,, for welding alu, mg etc
tig Electrode
"YUHENG" brand Products are Widely used in Chemistry, Machinery, Aerospace, Marine, Precise electronics and Welding industry;

 Main products include Tungsten rods, Tungsten electrodes, Tungsten wire, Tungsten crucibles, Molybdenum sheet, Molybdenum bars, Molybdenum wire, Molybdenum electrodes, Molybdenum Crucibles, Titanium sheet , Titanium bars,Titanium wire and other Nonferrous metal materials.

E
lectrode 2.4mm

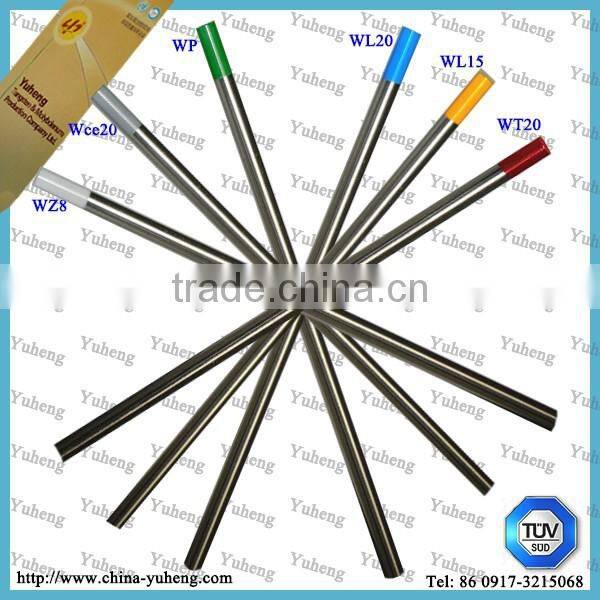

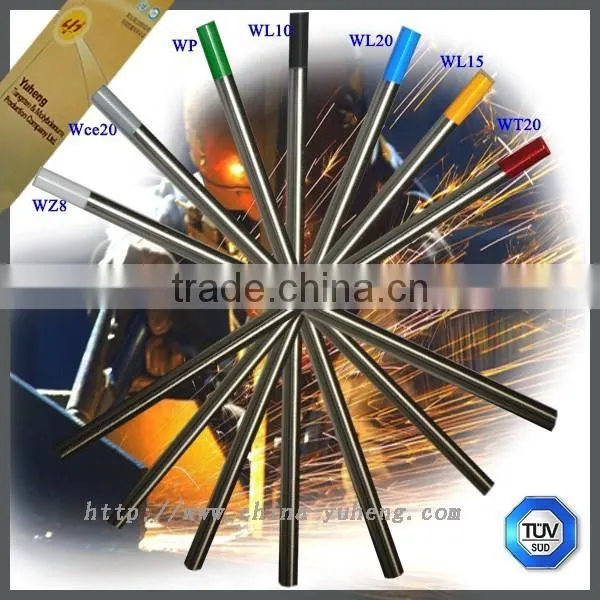

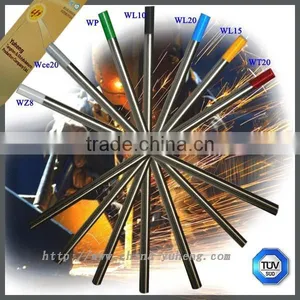

Color code Electrode 2.4mm
tig Tungsten Electrode 2.4mmx175mm for Cutting and welding

Applications of all types wolfram electrodes 2.4mm

PURE Tungsten Color Coded GREEN
PURE Tungsten Color Coded GREEN, are best suited for AC Tig welding applications.
Pure Tungsten, Green, AWS Class EWP, AC welding applications. Least expensive of all electrodes. Applications: aluminum and magnesium alloys.

THORIATED Tungsten Color Code RED, YELLOW, or ORANGE
THORIATED Tungsten Color Code RED, YELLOW, or ORANGE, are best suited for DC Tig welding applications.
2% Thoriated, Red, AWS Class EWTH-2, DC welding applications. The most common type of electrode used today. Applications: carbon & stainless steel, nickel alloys and titanium.

LANTHANATED Tungsten Color Code BLACK, GOLD or BLUE
LANTHANATED Tungsten Color Code BLACK, GOLD or BLUE, are suitable for AC & DC welding applications.
Lanthanated, Black, AWS Class EWLA-1.5, AC & DC welding applications. Non-Radioactive Good arc characteristics in ac/dc applications. Applications: carbon & stainless steel,nickel alloys and titanium.

CERIATED Tungsten Color Code GREY or ORANGE
CERIATED Tungsten Color Code GREY or ORANGE, are best suited for low amperage DC welding applications.
Ceriated, Grey, An excellant alternative to Thoriated tungsten especially in low amperage welding. Takes 10% less current to start and has a very stable arc.

ZIRCONIATED Tungsten Color Code WHITE or BROWN
ZIRCONIATED Tungsten Color Code WHITE or BROWN, are best suited for AC Tig welding applications.
Zirconiated, White, AC Welding applications. Better start up than Pure Tungsten, Balls up well and has a more stable arc than Pure Tungsten. Better current carrying capacity and high resistance to contamination during welding.

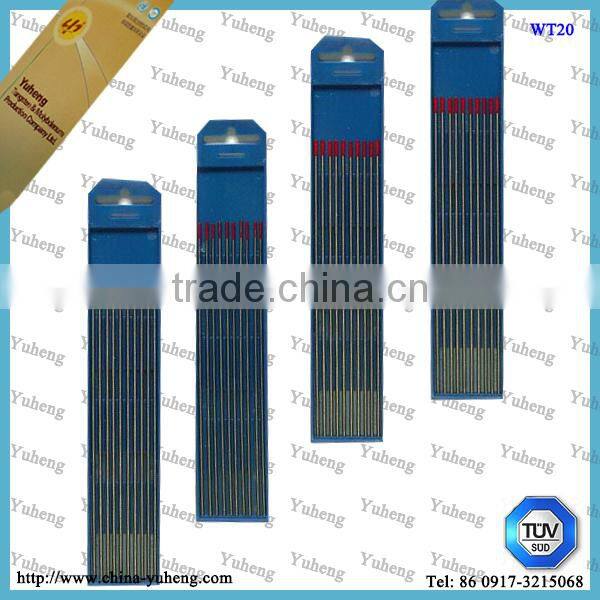

 Photos of wolfram material Electrode 2.4mm
 tig Tungsten Electrode 2.4mmx175mm for Cutting and welding

tig Tungsten Electrode 2.4mmx175mm for Cutting and welding


Packaging & Shipping

 1) 10 pieces china tungsten electrode welding put into 1 plastic box, or plastic bag is available as client's requirement.

 2) Then packed in one carton box.

 3) Shipping by Air or Express as following for refer and option,  within One Week from China to Client's office



DHL           UPS               FEDEX            EMS                    SF               TNT or Other way as client request







  tig Tungsten Electrode 2.4mmx175mm for Cutting and welding



Our Services

We always pursue cooperation, win-win strategy and honesty to work with our customers, Truly high technology, technolgy innovation as the driving force for thre purpose of excellent quality, and honesty as a creed. Dedicated to new and old customer to provide quality products and good serivces
To provide our best service for each clients, no matter where they come from.

Company Information



Shaanxi Yuheng Tungsten& Molybdenum Industrial Co., Ltd is located in Baoji city, China.
It is specialized in the research and produce nonferrous metals such as Tungsten( Tungsten/ tig welding wolfram electrodes have WT10/WT20/WT30/WT40/WL10/WL15/WL20/WP/WZ3/WZ8/WY20), Molybdenum, Titanium,

those alloys for more than 17years in this line. And we have more than 8years export experience in the world.
Especially in South Korean, USA and Europe market such as poland, UK, Germany etc

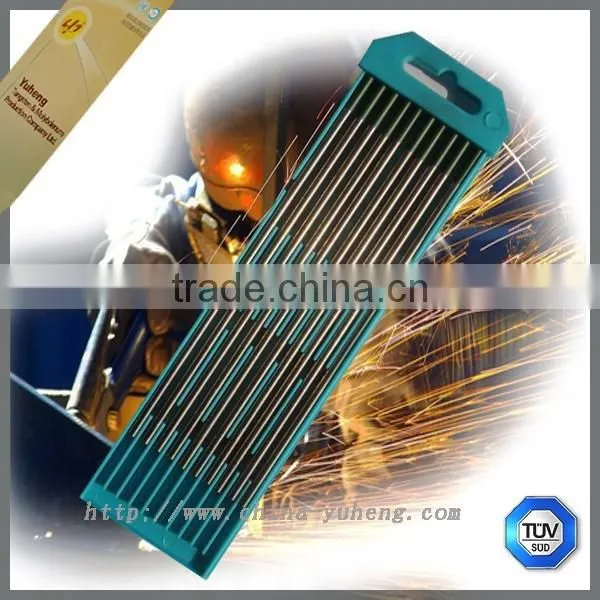

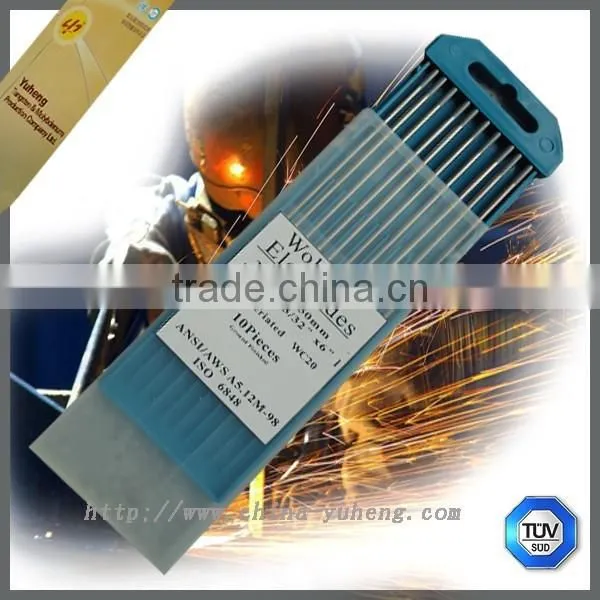

Photos of Welding  electrod 2.4mm rods

tig Tungsten Electrode 2.4mmx175mm for Cutting and welding



 tig Tungsten Electrode 2.4mmx175mm for Cutting and welding
