Specifications
ZB800-2A Cement Plaster Machine main features:1.easy to move and to operate
2.light in weight and small in size
We are professional manufacturer of Cement Plaster Machine . ZB800-2A Cement Plaster Machine also called wall plastering machine, automatic plastering machine, which is a unique machine for wall rendering, it is designed for increasing rendering efficient and saving labor cost of rendering project.
Automatic Rendering Machine 's main features:
1. It is new machine instead of handmade in construction plastering area.
2. The capacity is as 15 professional plasterers.
3. The quality is subject to international wall plastering standard.
4. Very easy and simple to operation
5. Saving more than 20% raw material (cement &sand)
6.It can plaster the wall automatically and go up and down automatically.
7.It can plastering by one-time.The thickness of the ash can be adjusted.
8.Easy to move,without removing any parts of the machine.
9.It has large capacity hopper,you can put the ash/lime/gypsum in it one-time.
10.The quality is up to the international standard.Leakage protection device with high sensitivity, suitable for construction site safety and reliability
Technical data of Cement Plaster Machine :
!
ZB800-2A Technical data | |
Plastering Height | 0-5meters |
Plastering Thickness | 2-25mm |
Plastering Width | 80cm |
Capacity | 450 square meters/8 hours |
Dimensions | 1350×800×500mm |
Power supply | 2.2kw |
Voltage/frequency | According to your demands |
Weight | 240KG |
Surface | smooth |
Vibrator | Yes |
Juncture device | Yes |
Smoothing knife | Yes |
storage capacity | 90-100KG |
Perpendicularity degree | ≤2mm |
Level degree: | ≤2mm |
Cement Plaster Machine VS Manual Work
The process of plaster the wall
Step 1.fix the machine
Step 2. load ash
Step 3. go up to the first plastering
Step 4. go down for the first smoothing
Step 5. the first section of plastering wall is finished
Step 6.repeat step1-5
Time Sheet
Step2 | Assemble machine | 120 seconds |
Step3 | Move the machine to the wall for rendering | 20 seconds |
Step4 | Adjust the vertical and horizontal level | 20 seconds |
Step5 | Load any kind of suitable mixture to tank | 30 seconds |
Step6 | Render one section 800 mm | 60 seconds* |
Remarks: * means the time of rendering up to 3 m height of wall with 800 mm width for one section

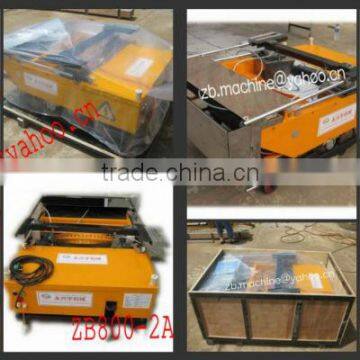

More pictures about ZB800-2A Automatic Rendering Machine
