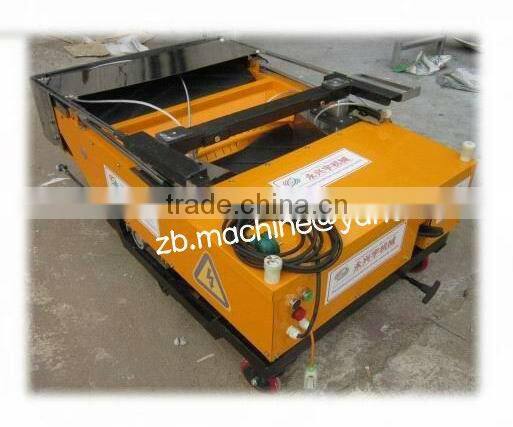

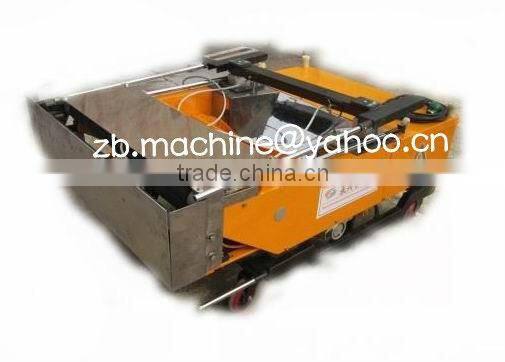

Help Center2013 New Design ZB800-2A Wall Plastering Machine
Related Products
-
Auto Rendering Machine/ Auto Plastering Machine ZB800-2A With High QualityUS$ 1,000 - 4,290MOQ: 1 Set -
Mortar Plastering Machine for Wall/plastering Machine for Wall/electric Plaster MachineUS$ 1,000 - 4,280MOQ: 1 Set
-
Cement Plastering Machine/equipment of Building/electric Plaster MachineUS$ 1,000 - 4,280MOQ: 1 Set
-
Machine Rendering/machines for Wall Plasteringelectric Plaster MachineUS$ 1,000 - 4,280MOQ: 1 Set
-
Plaster Machine/mixer Plaster Machine/electric Plaster MachineUS$ 1,000 - 4,280MOQ: 1 Set
We are professional manufacturer of ZB800-2A Auto Plastering Machine . ZB800-2A Auto Plastering machine also called plaster machine, wall plastering machine, automatic plastering machine, plastering machine for wall, which is a unique machine for wall rendering, it is designed for increasing rendering efficient and saving labor cost of rendering project.
ZB800-2A Auto Plastering Machine 's main features:
1. It is new machine instead of handmade in construction plastering area.
2. The capacity is as 15 professional plasterers.
3. Saving more than 20% raw material (cement &sand)
4.It can plaster the wall automatically and go up and down automatically.
5.It can plastering by one-time.The thickness of the ash can be adjusted.
6.Easy to move,without removing any parts of the machine.
7.It has large capacity hopper,you can put the ash/lime/gypsum in it one-time.
8.The quality is up to the international standard.Leakage protection device with high sensitivity, suitable for construction site safety and reliability
Technical data of ZB800-2A Auto Plastering Machine :
!
ZB800-2A Technical data | |
Plastering Height | 0-5meters |
Plastering Thickness | 2-25mm |
Plastering Width | 80cm |
Capacity | 450 square meters/8 hours |
Dimensions | 1350×800×500mm |
Power supply | 2.2kw |
Voltage/frequency | According to your demands |
Weight | 195KG |
Surface | smooth |
Vibrator | Yes |
Juncture device | Yes |
Smoothing knife | Yes |
storage capacity | 90-100KG |
Perpendicularity degree | ≤2mm |
Level degree: | ≤2mm |

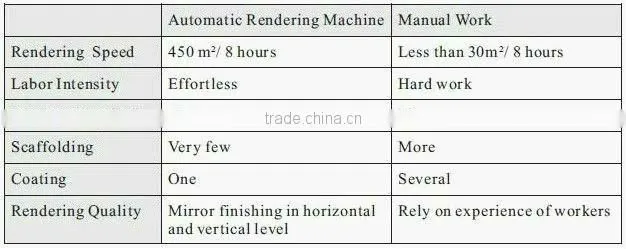

ZB800-2A Auto Plastering Machine VS Manual Work
Time Sheet
Step2 | Assemble machine | 120 seconds |
Step3 | Move the machine to the wall for rendering | 20 seconds |
Step4 | Adjust the vertical and horizontal level | 20 seconds |
Step5 | Load any kind of suitable mixture to tank | 30 seconds |
Step6 | Render one section 800 mm | 60 seconds* |
Remarks: * means the time of rendering up to 3 m height of wall with 800 mm width for one section

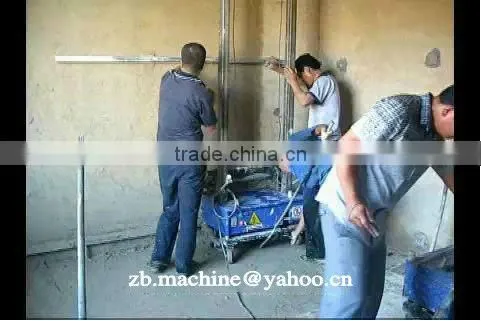

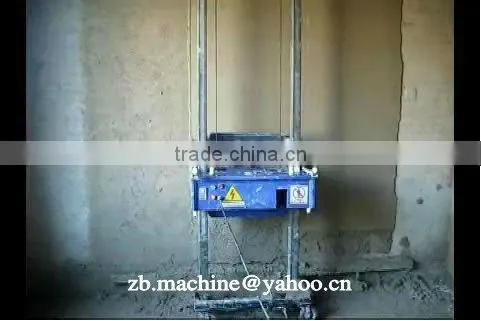

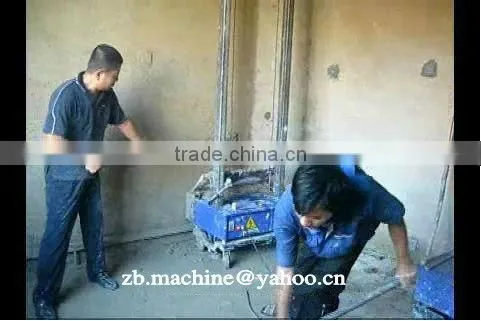

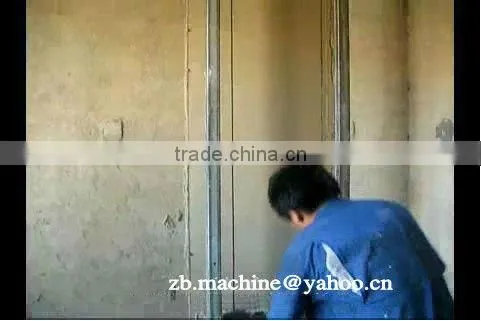

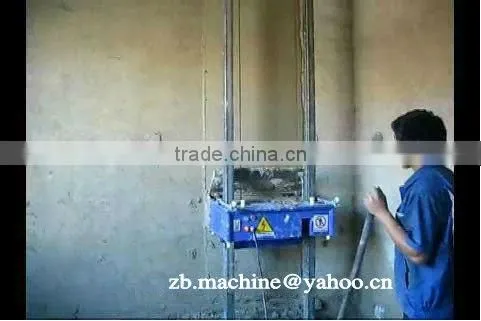

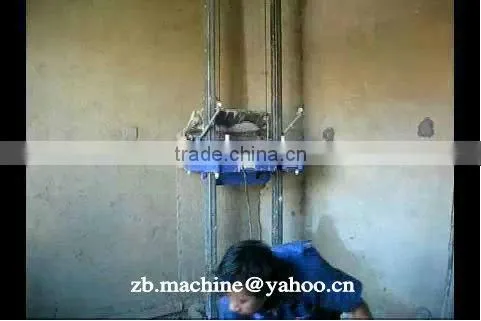

The process of plaster the wall
Step 1.fix the machine
Step 2. load ash
Step 3. go up to the first plastering
Step 4. go down for the first smoothing
Step 5. the first section of plastering wall is finished
Step 6.repeat step1-5

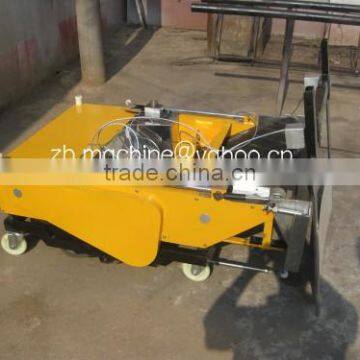

More pictures about ZB800-2A Auto Plastering Machine
