30 MPA Air Compressor to inflate the gas tank of air gun

Standar export wooden case or as customer's demand

Specifications

30 MPA Air Compressor to inflate the gas tank of air gun
1.Small volume, Light weight
2.Low power, Low noise

       30 MPA Air Compressor

                                                  to inflate the gas tank of  air gun



The machine has 3 levels compression: Level 1 and level 3 set oil-water separator, The output pressure is not less than 30 MPA. Level 2 and level 3 use fire resistant water glycol hydraulic fluid to lubricate and cool. It is safety and explosion –proof.



Product Parameter



Model	Dimension(mm)	Gas Displacement/t	Output Pressure	Voltage/Power	Noise	Weight
GY-15	720*240*320	15L	≤ 30Mpa	220V/460W	62DB	33KG
GY-25	455*300*290	25L	≤ 30Mpa	220V/550W	72DB	30KG





Scope of Application



High-voltage examination;



Filling high pressure gas bottle



Product Usage



1.The detection of high pressure vessel, mainly used in the detection of high pressure vessel seal leakage

2.The inflation of line throwing unit, to inflate the gas tank of line throwing device.

3.Pre inflatable air gun, to inflate the gas tank of  air gun.



Feature



Small volume, Light weight

Low   power,  Low  noise

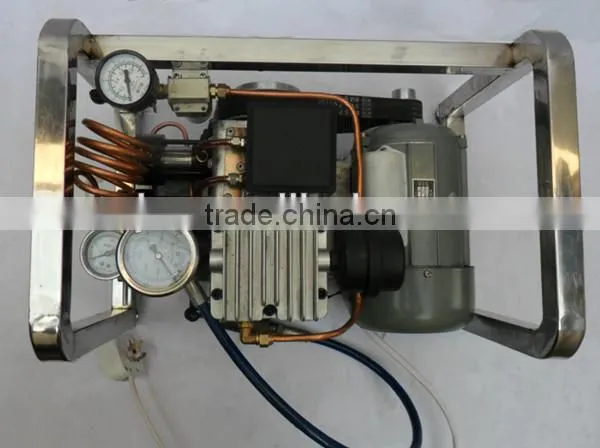

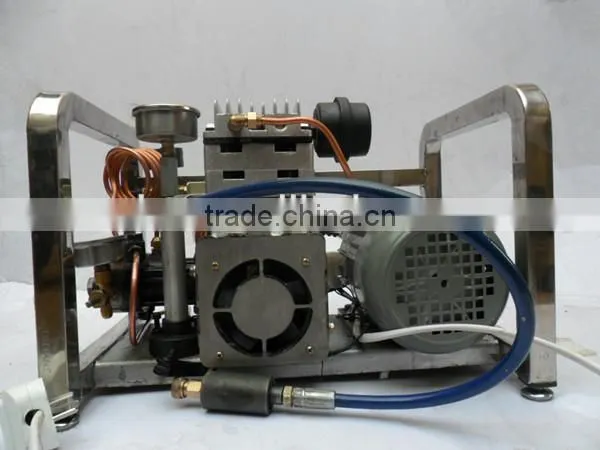

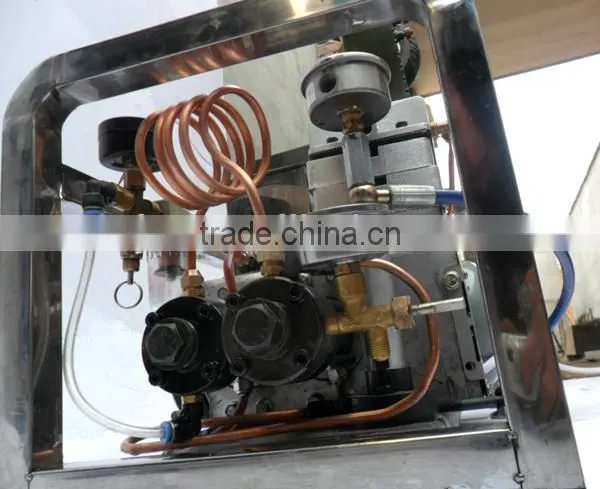

Pictures







Package: Standard Wooden Case

Shipment: 3-5 days after payment



One year guarantee for whole machine

24hours technical support by e-mail

Overseas center service
