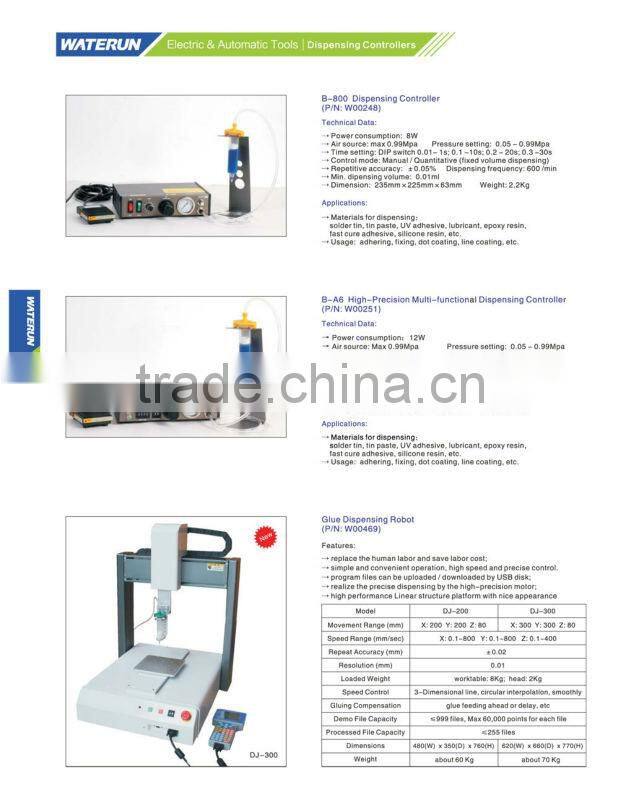

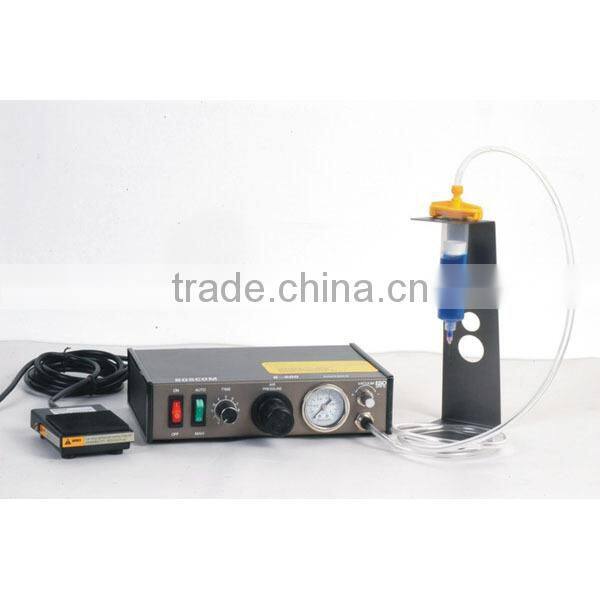

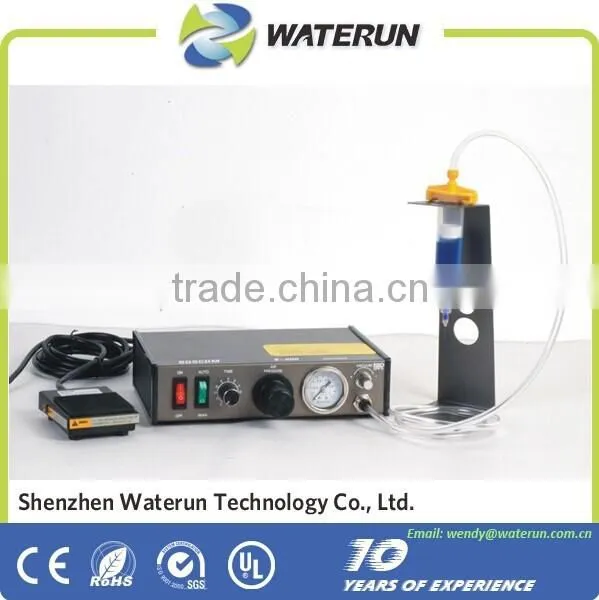

B-800 Automatic Glue Dispenser Machine
Technical Data:
→ Power consumption: 8W
→ Air source: max 0.99 Mpa Pressure setting: 0.05-0.99 Mpa
→ Time setting: DIP switch 0.01-1s; 0.1-10s; 0.2-20s; 0.3-30s
→ Control mode: Manual / Quantitative (fixed volume dispensing)
→ Repetitive accuracy: ± 0.05% Dispensing frequency: 600/min
→ Min. dispensing volume: 0.01 ml
→ Dimension: 235mm x 225mm x 63mm Weight: 2.2 Kg
Applications:
→ Materials for dispensing:
solder tin, tin paste, UV adhesive, lubricant, epoxy resin,
fast cure adhesive, silicone resin, etc.
→ Usage: adhering, fixing, dot coating, line coating, etc.
Performance:
1. If the air pressure and time are well adjusted and the nozzles are properly chosen,
2. It can easily change each dripping volume. It has extensive uses, and applicable liquids include non-drying adhesive, red glue, yellow glue, epoxy resin, silica gel, lubricants, screw-tightening glue, anti-soldering solvent or tin paste and so on.
3. The full set of products is available, provided with straight-type steel pipe nozzle and sharp-type plastic needle nozzle to make full use of the machine functions.
| Model | B-800 | B-A6 |
| Power consumption | 8W | 12W |
| Air source | max 0.99Mpa | Max 0.99Mpa |
| Pressure setting | 0.05-0.99Mpa | 0.05-0.99Mpa |
| Repetitive accuracy | ±0.05% | ±0.01% |
| Dispensing frequency | 600/min | >1000/min |
| Min.dispensing volume | 0.01ml | 0.0001ml |
| Dimension | 235mm*225mm*63mm | 235mm*225mm*63mm |
| Weight | 2.2Kg | 3Kg |
Automatic Glue Dispenser
will pack into the individual packaging
normally will ship by courier, if quantity is too big, will ship by air or by sea
1. We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for Electronic Assembly Industry.
2. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.
3. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time is just 3 days.
4. We can also customize the products to fulfill different requirements.
5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.
6.Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your reliable partner and will return to you with good products and good support.
7.Professional: We have been in this business for more than 10 years. We have a strong professional team with various experiences.
8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.
9. Price: we always offer competitive prices and help our customers to cost down.
10. Quality: we do 100% inspection before the shipment.
11. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due to our mistakes.
Why us?
Because we are in the line of ESD products for many years,and we product a wide range of this kind of products,
ours company have a good reputation because of the high quality product and the good service .
We always put our customers' request come first.
All our customers would like to establish the longterm business relationship with us.
What is the advantage of your product?
We are in the line of electronic industry for more than ten years. The quality of our product is the one of the best.
Reasonable price. high quality and goood reputation and service.
