Professional refrigerated van made in China

Specifications

1.Manufacture according to the request
2.High Quality material and low price
3.With the 3C

Specifications

We can manufacture various specifications of all kinds of box body according to your request.
1. Truck body of our refrigerated van uses international advanced totally enclosed polyurethane boards structure, the inner and outer plates have glass reinforced plastic sheet, color coated sheet, aluminum-magnesium alloy plate, high-density rigid polyurethane foam as density board.
2. The structure of the truck box is made by hot -press compound, so they have excellent insulating performance. The surface of body features smooth and good corrosion-resistance and Ageing resistance, which is also suitable for Colorful carriage advertisement.
3. According to customers different requirements, truck body can add side door optionally, choose every different temperature; Inside can have optional configurations, such as fixing device, suspension device, counterflow unit and dewatering installation etc, which can meet the clients needs well.

Q.How about your product quality?

A: All our suppliers have passed the ISO9001,BV, and CONTECNA qualification certification, the quality is 100% guaranteed.

Q. How about your company's service, especially after-sale service?

A: Shandong zhengtai xier special purpose vehicle co.,ltd has been in this field for nearly 20 years and has strong production and distribution capability,we can satisfy your demand within 3-7 days.We always do our best to solve all the problems and put our customer's interests in the first place.

Q:Is there any advantages of your price?

A: Shandong zhengtai xier special purpose vehicle co.,ltd is one of the important suppliers of Foton ,Sinotruck ,Isuzu,Jac,Jmc, and ,which provides guarantees for reasonable price and good quality. Meanwhile, other products are procured from our long time business partners, we also can be sure to provide competitive prices.

Our advantages

Body Description

It is made with professional techniques and FRP compound panel. New type FRP was used as outer skin of roof, wall and door. The panel used for the van was constructed in type of sandwich. The middle layer of the sandwich is plywood or polystyrene foam. The sandwich panel is fixed to the steel frame with high strength adhesive and screws. The thermal insulation layer is 20-50mm thick, which offers a very good thermal insulation performance. The van body is tight and solid with a very high mechanical strength, smooth and nice appearance, anti-corrosion, shock-proof, standing wear and easy to be washed.

The van is built in a full close steel frame structure. All panels are adhered with high strength structural adhesive to achieve the most reliable conjunction, sealing and insulation properties. This structure is also easy and fast to be assembled.

The van feature at preserving heat, heat-insulated and can effectively minimize concussions on the basis of international new technology. It is proof to air, water, acid, alkali, salt and some other caustic materials.

(1)Van body dimension of this truck is as following:

LxWxH: 4150x1750x1720mm

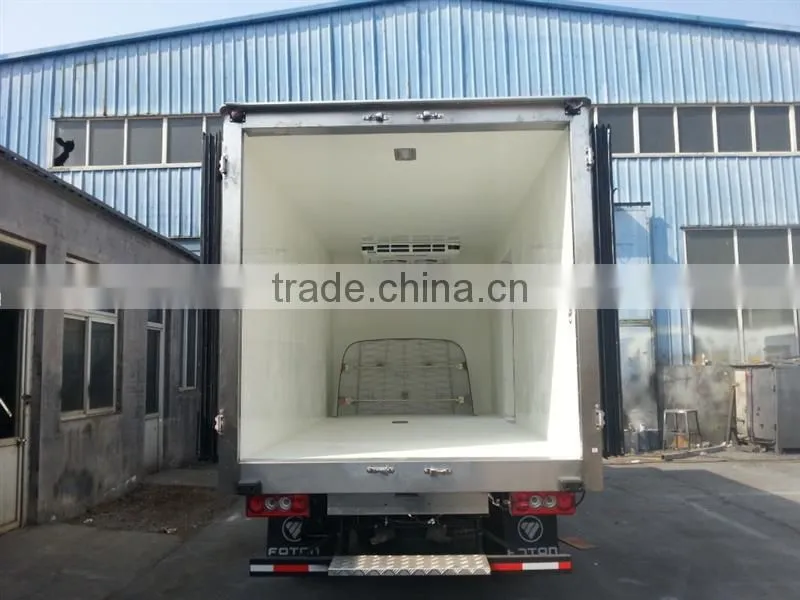

The van is with two full opening doors at the real part. While the customer can choose side door at the side wall of the van .

Detailed Product Description

Truck body, truck body panels, CKD truck body panels, cargo box, truck cargo body, dry cargo body, insulated truck body, isolated truck body, insulated cargo body, FRP truck body, FRP CARGO BOX, refrigerated truck body, meat transport truck body, freezer truck body, cargo van body, truck van body, cargo van box, van truck body, van box, isolated truck body

1. PU insulated Material, Fiber-glass Reinforced Plastic
refrigerated box bodies
Light weight, Better insulation, High strength & Long life, Non-corrosion, Easy for assembling
refrigeated box bodies / refrigerated truck bodies/ refrigerator truck bodies

 Our refrigerated vans processed with dry-wet method is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.

 Standard thickness:

Front/rear/side panel: 85mm roof/floor panel: 105mm

The thickness can be changed according to customer’s requirements.

 The dimension of panel can be chosen at the follow range:

Length 0-15000mm

Width 0-3100mm

Thickness 25-135mm

 Our products have been widely exported to India, Philippines, Pakistan, Yemen, Singapore, Hong Kong, Thailand, Uzbekistan, Peru, Australia, New Zealand, Tanzania as well as many other countries in Middle East, Southeast Asia, South America and Africa.

 The main characters of our refrigerated & insulated bodies are as follows:

1. Light in weight:                    40% lighter than metal body.

2. Better insulation:                 K value less than 0.3w/m2k..

3. High in strength and long life: 5 times longer than metal body.

4. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

5. Easy to be assembled and repaired at site.

 Our products can be shipped in CBU (completely built up) and CKD (completely knock down) type.

 We can also use our insulated panel to produce some other relative products such as Military Camping Container and Medical Rescue Shelter for Army, Emergency Mobile Telecommunication Truck for China Mobile and China Unicom, Catering Truck body for CAAC and Modular Container House etc.

Specifications

Freezer truck bodies
Light weight, Better insulation, High strength & Long life, Non-corrosion, Easy for assembling

FRP Honeycomb Dry Box

Shiny finish dry cargo truck bodies/panels

 FRP Honeycomb Sandwich Panel

The FRP honeycomb sandwich panels we produce is made of FRP (fiberglass reinforced plastic) sheet as surface and plastic honeycomb in the core. This product is widely used for dry cargo truck body and building.

 Size is according to your requirements.

Thickness: 18mm, 20mm, 25mm, 30mm

Other thickness can be produced according to your requirements.

 Product feature:

~Light weight

~High strength

~Insulation

~Sound and Vibration Dampening

~Water, moisture, corrosion, rot, chemical resistant

~Environmental protection

Quyen Auto refrigerator box / refrigerator body is produce Europe technology with hight quality. It keep deep temperature.
