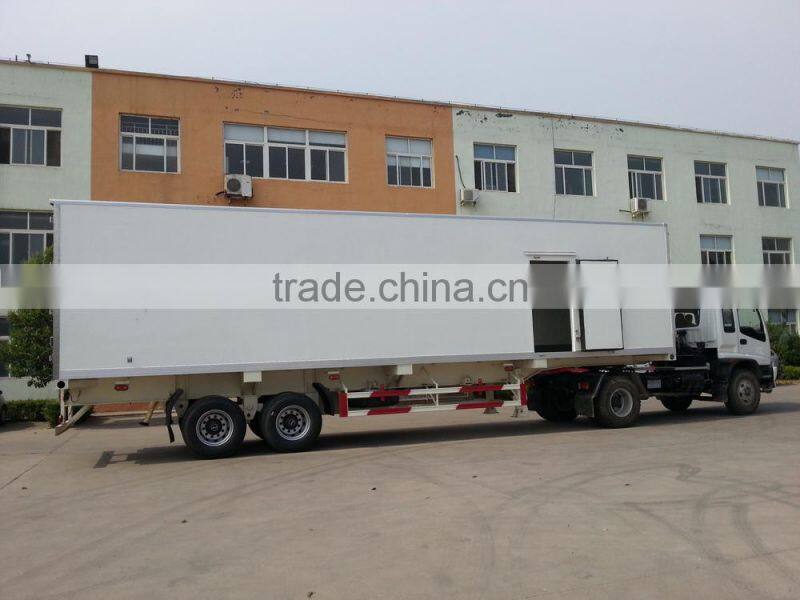

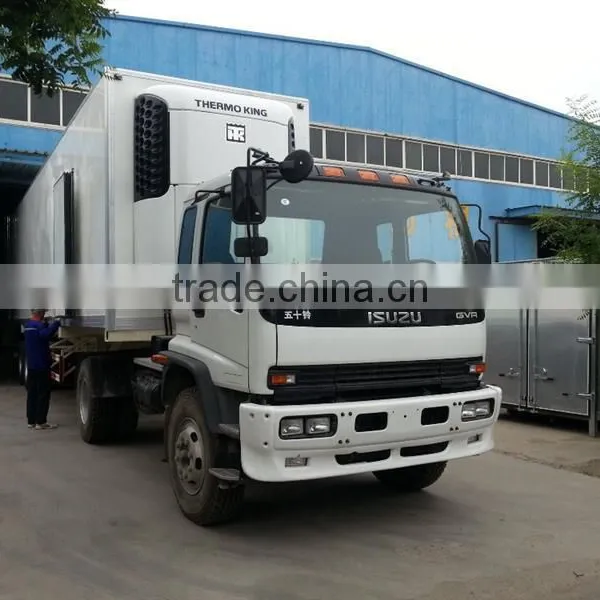

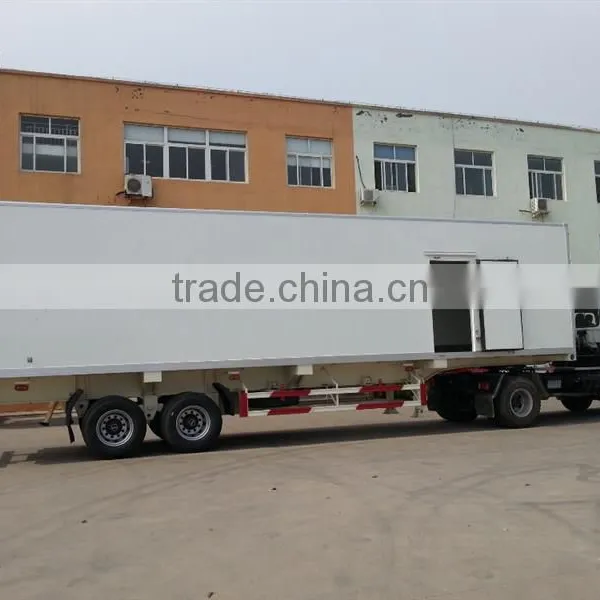

new heavy duty tipper truck refrigerated semi trailer body
- 10000 Unit / Units per Month
- qingdao/xingang
- T/T Credit Card PayPal
- Sedan SUV transport semi-trailer export semi-trailer Russian European style semi-trailer
- Low flatbed semi-trailer Hydraulic ladder semi-trailer Automatic low flatbed export trade
- Exporting trailers to Russia European style car transport Semi trailer price
- Multi axles modular low bed semi trailer
- AUTONE wingspan van semitrailer
- Container Semi Trailers
Product Details
Type: | Semi-Trailer | Material: | Iron | Certification: | Other, ccc |
Size: | 14100*2500 | OEM No.: | sdasd | Max Payload: | 50tons |
Place of Origin: | Shandong, China | Brand Name: | joyfly | Model Number: | jy15105 |
Product Description
1) trailer chassis
duct name : two axel semi- trailer
2.carrying capacity 50tons
3.chassis size 14100*2560*1400mm.
4.axle:25tons
5. Longitudinal beam 450mm, thickness 12mm
6. Beam thickness 12mm
7.Leaf spring 8/8
8.jack 2 pcs
9.tire 295/80R22.5
10color:yellow
11 tool box 1500*800*800mm
12.drawing plug 50
13.spare tire and holder 2 pcs
14.Tool :Spare tire crank,Shaft head tube set.
- 15. Other: Air brake, relay valve, electric wire 1mm2

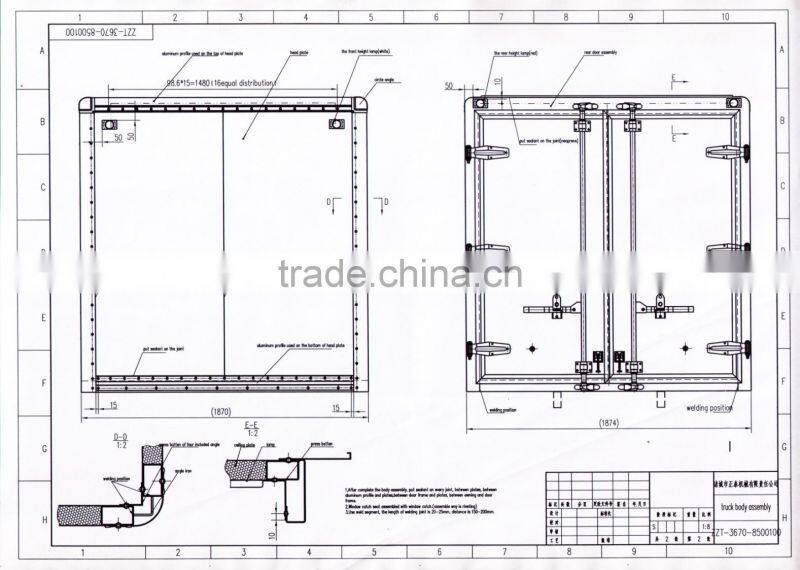

2) Insulated box
1. Box inside size 13900*2300*2600mm
2. Floor is aluminum floor thickness is 110mm.
3. Wall thickness is 102mm, FRP skin, middle is PU.

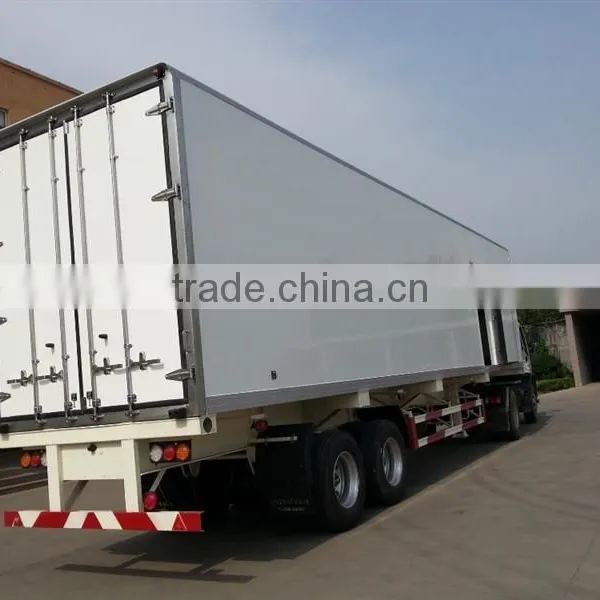

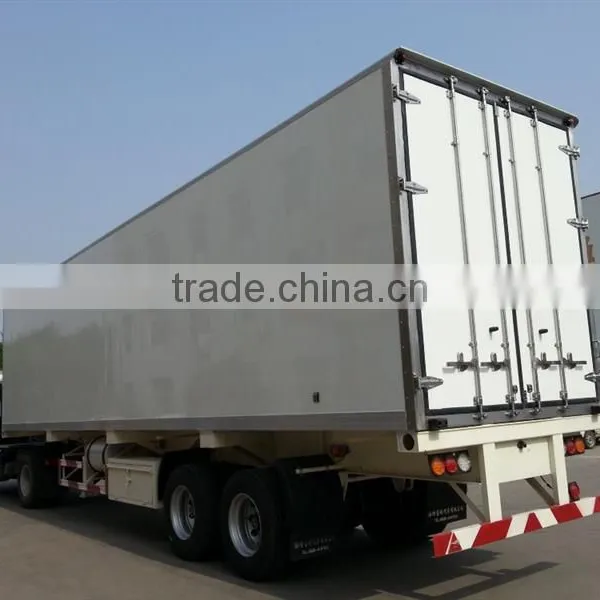

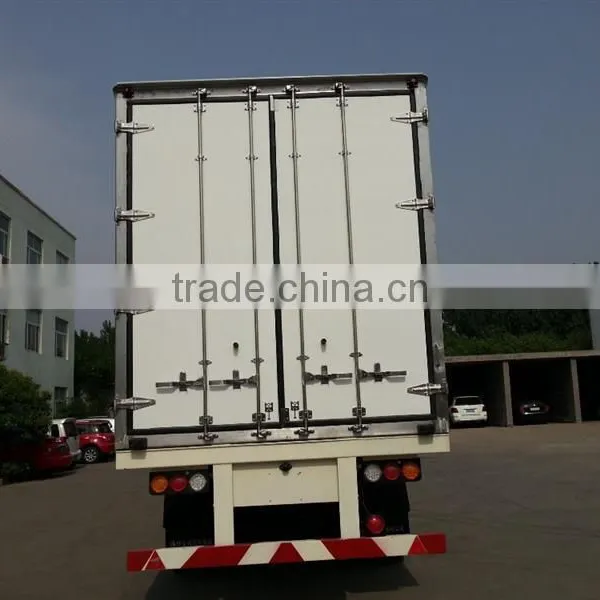

4. Rear door: 2 door,4 lock.Galvanized material
1.The advanatages of Truck Bodies
1).It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core
2).Light in weight:40% lighter than metal body.
3).it is be good at strength and long life.
4).Non-corrosion, non-pollution, anti-brine, acid and soda-resisting

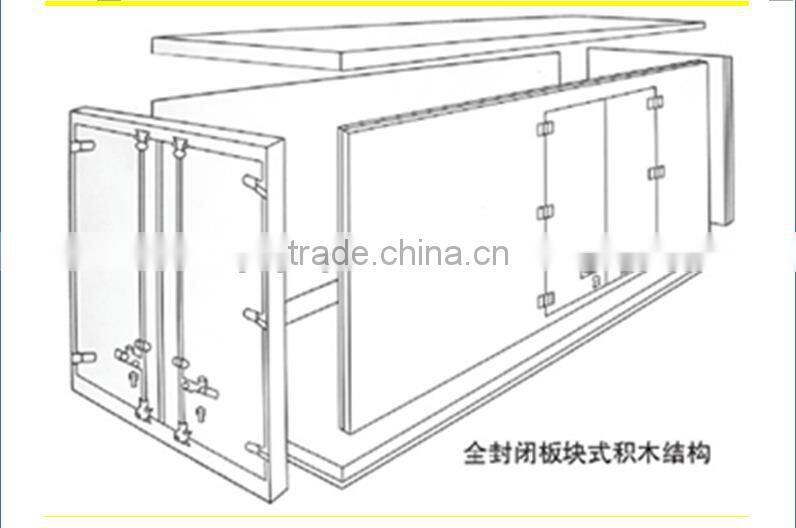

5).The panel used for the truck body was constructed in type of sandwich.
6).The thermal insulation layer is 50-80mm thick, which offers a very good thermal insulation performance.
1)Outer/inner skin is FRP panel
2)polyurethane insulated ,PU foam density 42-45kg/m3
3)304 stainless steel locks ,hinges,door frame, wrap angle
4) aluminium alloy Edge Protector
5)EPDM rubber door seal
6)thickness: 62mm ,82mm,102mm or other special demands, body size as you demanded
7)side door is optional
8)Light in weight: 40% lighter than metal body.
9) Better insulation: K value less than 0.3w/m2k..
10)High in strength and long life: 5 times longer than metal body.
11)Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
12)Easy to be assembled and repaired at site.
Our products can be shipped in CBU (completely built up) and CKD (completely knock down) type
Temperature range,-18°C--+25°C,special request reach to -40°C
The Thickness
1)Front wall panel:85mm
2)Rear wall panel:85mm
3)Side wall panel:85mm
4)Roof wall panel:105mm
5)Floor wall panel:105mm
6)With the dimensions, the truck body can be the best Refrigeration Effect. But we also can change the Thickness by your requirements. And the thickness range is from 25mm to 150mm
Truck body, FRP truck body, FRP refrigerated truck body, FRP Cargo box, FRP truck box, FRP insulated truck body, reefer van body,
reefer truck body, Truck body panels, CKD truck body, Freezer truck body, isolation truck body, Isolated cargo box, truck box, truck van body, Van truck body, cargo van body, meat transport truck body, truck cold box, truck cool box, REFRIGERATED TRUCK BODY ckd
1)floor:corrugation iron
2)skin:color steel or FRP,GRP ,aluminum
3)panel:sandwich panel
4)insulation panel
5)PU
Truck body meets ISO9001:2008 and CCC certification
Our products can be shipped in CBU (completely built up) and CKD (completely knock down) type, and we can supply assembling manual guide you assemble boxes.
Fixed safety grab handles on rear pillars
LED lights for all front, rear outline marker lights, and licence plate lights
All mudguards, mudflaps, reflectors and marker plates are installed as your requirement.
