Specifications
Specifications
1Chinese famous brand;
2powerful engine;
3box body configuration;
4upgraded trim, ride comfort
Specifications

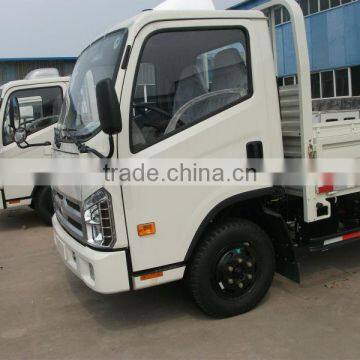

foton forland single row light truck
1.diesel engine
2.loading capacity:1-10T,drive mode:4*2
| Emission Standard | Euro2 | |
| Cabin type/width(mm) | Single row, tiltable/1695(mm) | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5810*2010*2170 |
| Inner dimensions of the cargo body (LxWxH)mm | 4230*1900*360 | |
| Wheel base (mm) | 3360 | |
| Weight data | Curb weight (kg) | 1820 |
| Rated payload (kg) | 3000 | |
| Gross vehicle weight(kg) | 3950 | |
| Maximum payload(Kg) | 3000 | |
| Engine | Model | 4B2-95C40(DSPⅠ,QC490Q(DI)) |
| Type | 4 - cylinders, in-line, water-cooling, direct injection type diesel engine | |
| Displacement(L) | 2.54 | |
| Rated power(kw) | 70 | |
| Rated Rotation Speed(rpm) | 3200 | |
| Rear axle | Type/Main reduction ratio | NPR rear axle |
| Brake system | Service brake | Hydraulic braking system |
| Parking brake | Central drum type | |
| Auxiliary brake | / | |
| Gearbox | 5T20 | |
| Wheels and tyre size | 7.00-16 | |
foton forland DOUBLE row light truck specifications
| MODEL | BJ1043V8PEA-MA truck | ||
| overall dimensions(mm) | interior cargo body dimensions(mm) | ||
| L | 5995 | L | 3800 |
| W | 2100 | W | 2000 |
| H | 2230 | H | 400 |
| gross vehicle weight(Kg) | 3930 | ||
| rated payload(Kg) | 1490 | ||
| curb weight(Kg) | 2245 | ||
| max. speed(km/h) | 95 | ||
| Persons in cab (persons) | 3 | ||
| approach angle/departure angle(°) | 23/17 | ||
| front overhang/rear overhang(mm) | 1080/1710 | ||
| fuel | diesel | ||
| wheelbase(mm) | 3200 | ||
| rear wheel track(mm) | 1485 | ||
| axles | 2 | ||
| quantity of tyre | 6 | ||
| tyre | 6.50-16,7.00-16 | ||
| engine model | YZ4102ZLQ | ||
| rated power(Kw) | 70 | ||
for truck body,we are transport it by container.
for light truck,we are transport it by container. nude packing
for bigger truck,RO-RO ship it. nude packing
Strong Impetus:
Body upgrade is equipped with Norveco LJ465Q-2AE power, its discharge completely achieve IV standard, the rate of word reach to 62 horsepower, with OBD of the whole car, with the advantages of strong power and green initiative.
Riding Comfort:
New front wall design with the strong power, extend the front 100mm, release some space of the driver’s legs, optimize human engineering and comfort level. Big single row body design, big block can be placed there, and seat can be adjusted front and back. High top cab view is broad and driving comfortably. Adopt the independent hang structure carrying the superstrong chassis, high strength leaf-spring of both the front and back ,
Carrying super:
With high bearing ability among depreciates products.Wheelbase extended to 2700mm, the length of the goods case to 2500mm, the more loading , the more stable driving. Equipped with 165/70R13 radial tire, the disc brake , carrying more capacity and more higher security.
