for truck body,we are transport it by container.
for light truck,we are transport it by container. nude packing
for bigger truck,RO-RO ship it. nude packing
Specifications
Specifications
1Chinese famous brand;
2powerful engine;
3box body configuration;
4upgraded trim, ride comfort
1.high quality
Foton CKD/SKD truck

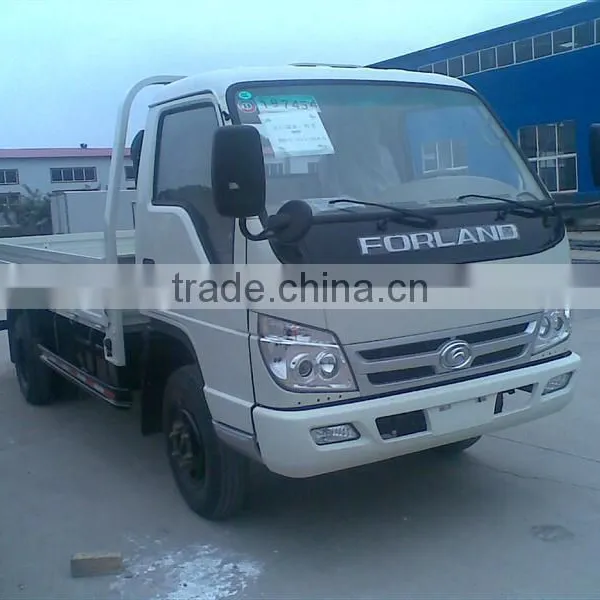

1. white 4*2 Foton 2ton cargo truck
2. horsepower: 45.6KW
3. displacement: 2.54L
4. cargo dimension:3220x1610x360
5.Forland
| Vehicle model | BJ1036V3JB3-R | |
| Emission Standard | EuroI | |
| Cabin type/width(mm) | Single row, untiltable/1695(mm) | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 4850×1690×2045 |
| Inner dimensions of the cargo body (LxWxH)mm | 3220×1610×360 | |
| Wheel base (mm) | 2600 | |
| Weight data | Curb weight (kg) | 1920 |
| Rated payload (kg) | 2000 | |
| Gross vehicle weight(kg) | 4050 | |
| Maximum payload(Kg) | 2500 | |
| Engine | Model | QC490 |
| Type | 4-cylinders,In-line, water-cooling, 4-stroke, diesel engine | |
| Displacement(L) | 2.540 | |
| Rated power(kw) | 45.6 | |
| Rated Rotation Speed(rpm) | 3200 | |
| Gearbox | Model | JC520 |
| Speed ratio | i1:5.568, i2:2.832, i3:1.634, i4:1.000, i5:0.814, iR5.011 | |
| Rear axle | Type/Main reduction ratio | Integrated Banjo type, reducing ratio 5.833 |
| Brake system | Service brake | Hydraulic braking system |
| Parking brake | Central drum type braking | |
| Auxiliary brake | / | |
| Wheels and tyre size | 6.50-16 | |
| Battery | Rated voltage | 12V |
| Model | 6-QA-105 | |
Foton Forland light truck
we can supply you kinds of truck,you can choose a suitable truck as you need or you tell me some your requests of the truck,I can recommend a suitable one for you!
1,most standard dump truck
2,the most reliable products for customers
3,Biggest-selling products
4,reliability,safety,comfortable,low fuel consumption and other advantages
Condition | New |
Capacity(Load) | 1-10t |
Drive Wheel | 4*2 |
Horsepower | <150hp |
Emission Standard | Euro 3 |
Fuel Type | Diesel |
Engine Capacity | <4L |
Size | 4795*1890*2170 |
Gross Vehicle Weight | 3950 |
Place of Origin | Shandong,China(mainland) |
Brand Name | FOTON |
Model Number | FORLAND |
Besides Foton Ollin/Forland Light Truck,here also provide Foton Pickup,Foton Mini Truck,Foton MPV&Original Foton Accessory.
foton forland single row light truck
1.diesel engine
2.loading capacity:1-10T,drive mode:4*2
foton forland DOUBLE row light truck specification
