Specifications
1)wings van Truck Body,2)wingvan Truck Body Panel,
3)wing van box Truck Box Body
4)wing van box body
Specifications
1. Advanced Quality
2. Competitive Price
3.16 years production experience
4. Corrugated Aluminium Material

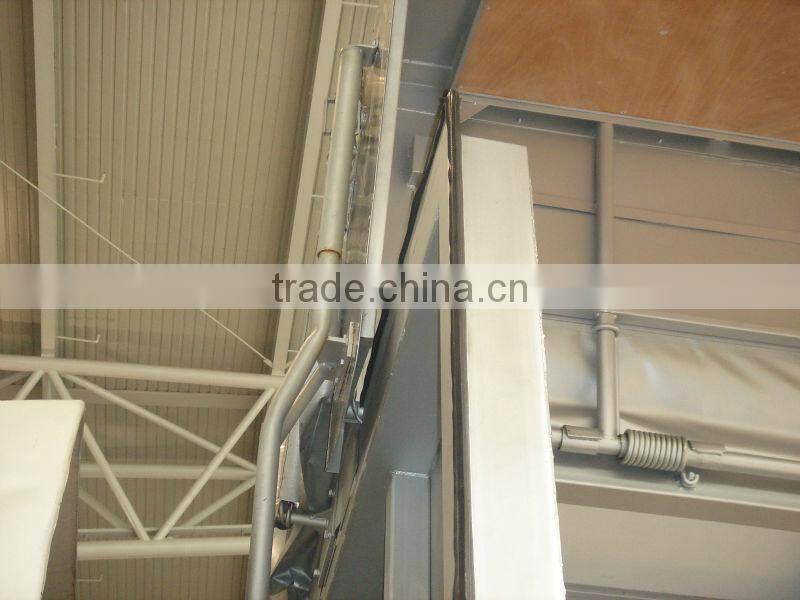

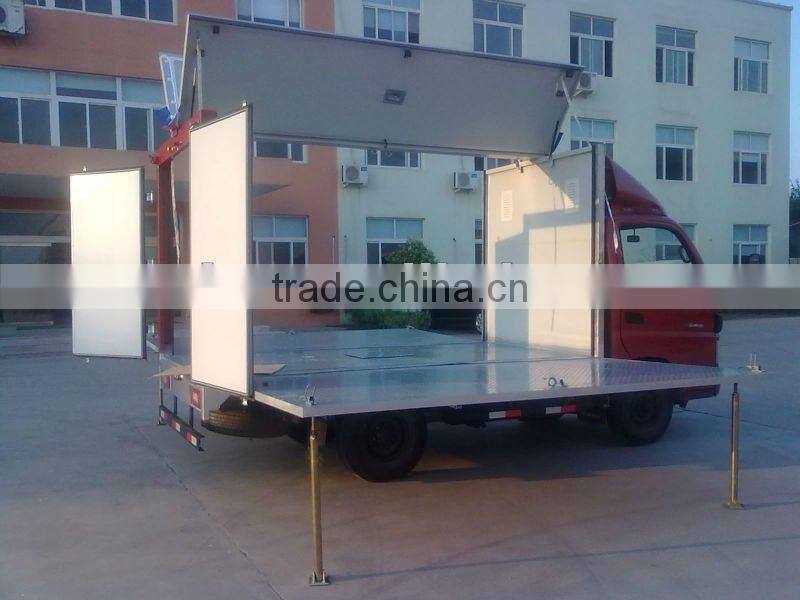

- The wing opening system adopt the unique oscillating cylinder designing, the wing door can open 270°degree, have a small rotative semidiameter, The door cling to the top truck by the type of fold when the doors are opening. Have a low request for the space of the enviroment, and it easily to across the narrow road, which have a high applicability. High safty, so you don't worry about drop suddenly of the door. The structure is compact and portable, so the assembling space is small. This wing opening system fit to use the high class box truck and securicar which have high request of the security.
- The wing opening system according to car battery as the power, and the system is independent, Sumply assemble, so there is no influence when the truck have the demages.
- The system use the balanced valve, which make the wing opening door is more steady when the door is decending. What’s more, the Wing opening door can lock up any position, so it is safer and more reliable.
- synchronizing mechanism is connected by mechanical axis, So it is more reliable than the synchronizing hydraulic.
- The equipment adopts import power unit, so the performance is more stabilize and reliable.
- We add the oil clinder locking structure, which avoid the wing door to opening unexpected. So the transportation is safer.
- The electrical system adopts fixed controlling panel, the locking action and opening/closing action can be controled seperately. The buttons are locked by each other, which avoid the to operate in error.
Tecnology Data:
- Oscillating Cylinder Opening Degree: 270°C
- Rated Working Pressure: P=16Mpa
- Opening Time: T≤25S
- Locking Oil Cylinder: Φ32
Quick Details
| Place of Origin: | Shandong China (Mainland) | Brand Name: | ZT | Model Number: | ASSD |
| Insulated truck body: | FRP insulated truck body | Refrigerated truck body: | Cold room for truck | freezer truck body: | insulated cargo body |
| refrigerated cargo body: | isolated cargo body | isolated truck body: | refrigerator truck body | refrigerated cargo van body: | frige truck body |
| frige truck box: | freezer truck box | truck body sandwich panels: | truck body CKD panels |
cargo van body CKD: | FRP PU Sandwich panel |
| FRP PU sandwich panels truck body: | freezer van body |
Packaging & Delivery
| Packaging Detail: | as request |
| Delivery Detail: | as negotiation |
Specifications
Insulated truck body, Isolated truck body, Refrigerated truck body, refrigerated cargo box, frige truck body, Freezer truck body
Insulated truck body, Isolated truck body, Refrigerated truck body, refrigerated cargo box, frige truck body, Freezer truck body,
with high quality, the matieral can be FRP, coated steel, aluminium, ....etc.
Panels are manufactured with fiberglass rovings and thermoset polyester resins that offer enhanced tear and puncture resistance when compared to other frp products. The panels are acrylic modified and UV stabilized for resistance to weather and chemicals. Our high-impact strength translucent panel, ETR, has a full width woven roving for additional strength.
Improve Productivity and Safety
- Increases visibility inside cargo area
- Safer and more efficient loading of cargo
Superior Impact & Tear Resistanc
- Engineered fabric panel is stronger than other frp materials
- Can be repaired faster and more effectively than aluminum
Lower Weight
- Increased payload and back haul flexibility
- Average weight savings of 15% vs. aluminum roofs
REFRIGERATED TRUCK BODIES PRICE LIST
CATEGORY |
MATERIAL |
Length (M) |
Thickness 100mm |
Thickness 80mm |
Thickness 60mm |
SIDE DOOR (USD) |
REFRIGERATED TRUCK BODIES |
glass fibre reinforced plastic |
<4 |
|
|
|
|
4-5 |
|
|
|
|
||
5-7 |
|
|
|
|
||
>7 |
|
|
|
|
For all box:Panel is fiberglass,middle si polyurethane, sandwich panel structure, thickness can choose,lock part is stainless steel.
Our technicians at Poseidon are highly skilled in automotive refridgeration. They undergo constant training and accessment to enable us to provide the best service to you.
Quailty products are used to ensure you receive value for your dollar. durability and reliability is what we provide.
Please contact us and discuss your options for the best refridgeration unit for your vehicle.
Check these features
Electronic in cab control
Heavy Duty long life evaporator fan motors
Rugged compact evaporator case constructed from marine grade aluminium and secured with stainless steel fasteners.
High performance evaporator coil constructed from rifle bore copper tube and alumimium fin.
Rugged condenser case constructed from Zinc anneal sheet and electrostatically powder coated (twin coat system) for long life.
High performance powder coated dual/triple circuit serpentine condenser.
Pressure activated high flow dual electric condenser fans.
Electrical harness equipped with waterproof connectors.
Safety cut out switches for system protection.
Accesorios Isotermos
- Bandas de sujeción de carga - diversos modelos.
- Zócalos de chapa o acero inox de diferentes medidas.
- Bandas salvarroces.
- Escaleras escamoteables.
- Puertas y portones en los paneles según las especificaciones del cliente.
- Tripuerta trasera.
- Paneles divisores fijos.
- Paneles divisores móviles de elevación manual o con amortiguadores.
- Paneles divididos en dos o tres partes.
- Cortinas de PVC.
- Portón lateral tipo venta ambulante con elevación asistida.
- Puertas laterales de diferentes medidas.
- Refuerzo del techo para carne colgada.
- Guías y ganchos cárnicos.
- Retenedores de puertas.
- Marco trasero sencillo en "U".
Truck roll-up doors, one of the most competitive products of our company, welcome to visit our web and contact with us
Truck roll-up doors container many parts: Such as
Inside and outside cables
"J" latch assemblies
Roller and roller holders
Slam latch assemblier
Weatherstrip seals and retainers
Counter balance assembly
Bottom, centre and end hinges
Bottom panel hardware
Counter balance assemblies
Door panels
Refrigerator TruckBody
1. Sandwich panel assembly
2. Outer/inner skin: FRP, aluminum, s/s...
3. Insulation core: PU foam
If you wanted to know the more detailer, pls e-mail us or call us.
