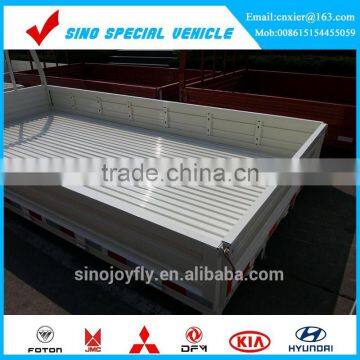

Help CenterSino Truck Cargo Box Drop Side Truck Body Carryboy
Related Products
-
Dump Truck Body Agricultural Tractors TrailersUS$ 12,000 - 13,000MOQ: 1 Set -
Truck Body/dump Boby CarrybodyUS$ 12,000 - 13,000MOQ: 1 Set
-
Bongo Cargo Drop Side Truck Drop Side Truck Body CarryboyUS$ 500 - 1,500MOQ: 1 Unit
-
JAC/JMC/FOTON/FAW KIA HYUNDAI Tipper Truck Cargo Body Light Truck Euipment 3t Dump TruckUS$ 12,000 - 13,000MOQ: 1 Set
-
JAC/JMC/FOTON/FAW KIA HYUNDAI Light Truck Euipment 3t Dump Truck Catering Truck BodyUS$ 12,000 - 13,000MOQ: 1 Set
We are looking for long term cooperation with customer. Therefore, if there is any quality feedback, we shall provide technical support and after sales service promptly. Easy to wear off parts list for each model is available upon customer's request. Service parts shall be sent along with each complete truck as well to ensure easy maintenance and service of each truck.
Vehicle model |
King kong598 |
|||
fuel type |
diesel |
|||
Emission Standard |
Euro I |
|||
Cabin model |
King row,tiltable/1780mm |
|||
Whole Vehicle |
Overall dimensions (L×W×H)mm |
6050×2150×2510 |
||
|
Inner dimensions of the cargo body (L×W×H)mm |
3800×2000×800 |
||
|
Driving type |
4x2 |
||
|
Wheel base (mm) |
3400 |
||
|
tread (front/rear) (mm) |
1567/1584 |
||
Weight data |
Curb weight(kg) |
4590 |
||
|
Rated payload(kg) |
11200 |
||
|
Gross vehicle weight(kg) |
15985 |
||
|
Max payload(kg) |
14000 |
||
seating capacity |
3 |
|||
Whole vehicle |
Max. speed (km/h) |
≥75 |
||
|
Max. slope of climb (%) |
≥30 |
||
|
Min.turning diameter(m) |
≤7 |
||
Engine |
Model |
YZ4102QF |
||
|
Type |
Four-cylinder, in-line,water cooling,direct injection(DI) type, with turbo charger. |
||
|
Displacement(L) |
3.857 |
||
|
Rated power(kw/rpm) |
70.6/2800 |
||
Fuel consumption(L/100km)(only for reference) |
15 |
|||
Gear box |
Model |
17D45F1 |
||
|
Speed ratio |
Highgear:I1:7.312,I2:4.311,I3:2.450,I4:1.534,I5:1.000.IR:7.661 Lowgear:I1:12.825,I2"7.561,I3:4.297,I4:2.690,I5:1.754,IR:13.437 |
||
Rear axle |
Type/Final gear ratio |
1092/6.833 |
||
Steering gear |
Type |
Mechanical recirculating ball type |
||
Steering Wheel |
left/right hand drive |
LHD |
||
Brake system |
Service brake |
Dual circuits pneumatic brake |
||
|
Parking brake |
Air cut valve |
||
|
Auxiliary brake |
Exhaust brake |
||
Wheels and tyre size |
6+1/8.25-20 |
|||
Electric device |
Rated voltage |
24V |
||
Our main products are refrigerated truck and body, dry truck and box,dump truck and body,foton truck.
We choose the best product to the customer.
for truck body,we are transport it by container.
for light truck,we are transport it by container. nude packing
for bigger truck,RO-RO ship it. nude packing
Note: The cab, engine, gearbox, tire,color,cargo body size and others have options.
1 Due to improvements made to the product, data herein is subject to change without notice.
2. Different outfits are provided for the different configurations of the motor vehicles.
3. Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
4. JOYFLY reserves the rights to make final explanations
In the past 15 years, we only do a truck, we are more professional.
