Specifications
1.standard: SGS,BV,CCC,ISO90012.Load is big, durable.
fortable
4.fuel-efficient
5.diesel dump truck/cargo dump truck
Quick Details
--Dongfeng 8tons axles
--250mm high strength steel double-layer crossbeam
--170PS
Top quality foton tipper truck for sale
--Dongfeng 8tons axles
--250mm high strength steel double-layer crossbeam
--170PS
---Side thickness 10mm
---Bottom thickness 12mm
---Tipping system made in china
---Dongfeng Dana axles
---250mm high strength steel double-layer crossbeam
---ISO9001
----Tipping system according with customer, you can choose side discharging or rear discharging
All our products passed ISO 9001:2008 certificate and CCC certificate
Specifications

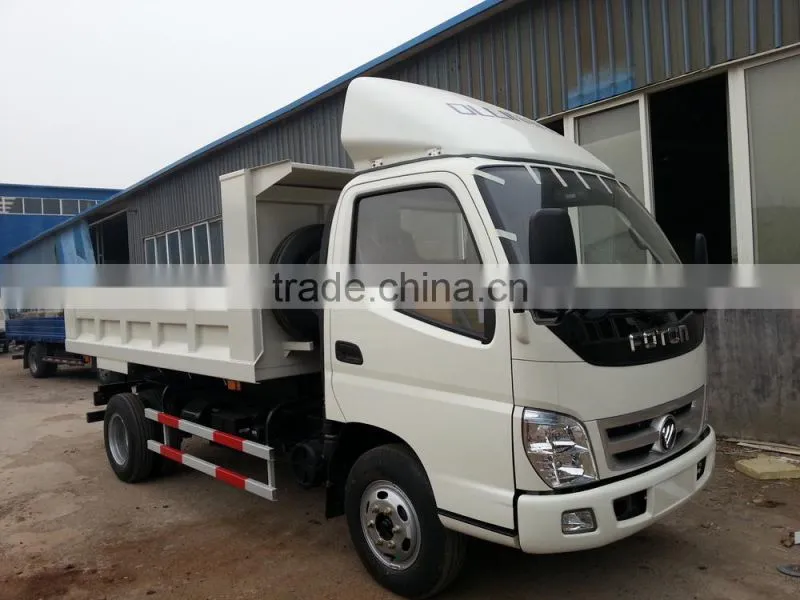

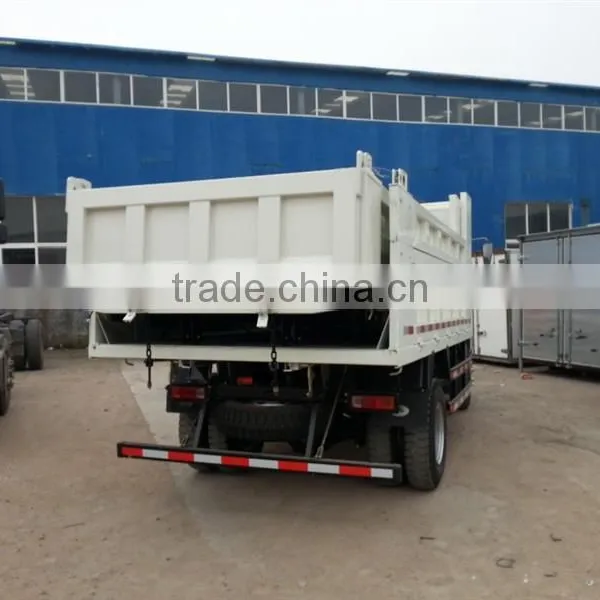

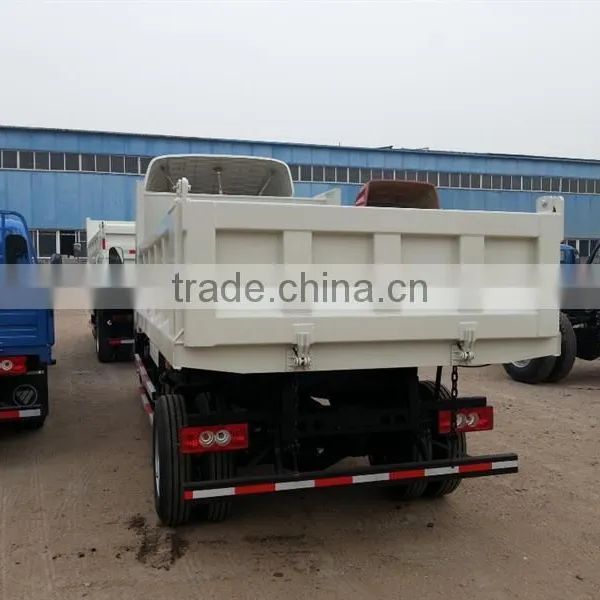

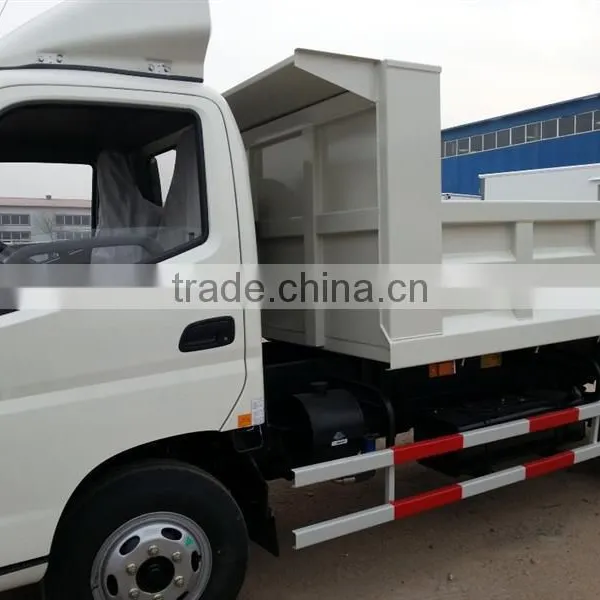

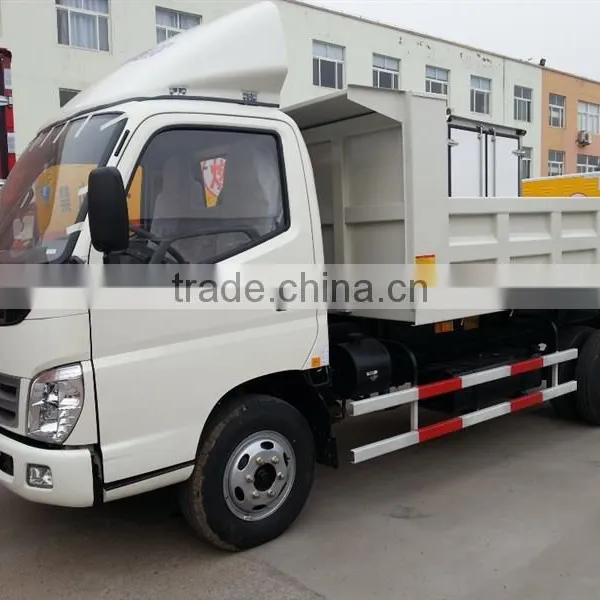

Foton 4x4 tipper truck
1.Left hand drive
2.Euro II
3.Load:3T
4.suitable for bad environment
Technical Parameters | |||||||
Product Name |
BJ3043D8PDA-S Dump Truck |
Product No |
ZHA7K3FC08H |
||||
Total Mass |
4110 |
|
|
||||
Rated Load |
1490 |
Overall Dimension( L*W*H) |
5950,5750*2100*2500 |
||||
Curb Mass |
2490 |
Compartment Size( L*W*H) |
3700,3500×2000×600,800 |
||||
Cab Number |
2 |
Carrying Utilization Factor |
0.65 |
||||
Approach/departure angle |
27/22 |
Overhang Front/rear |
1150/1400,1150/1200,1150/1500,1150/1300 |
||||
Axes |
2 |
Wheelbase(mm) |
3400,3300 |
||||
Axle load |
1600/2510 |
Max.speed(km/h) |
80 |
||||
Others |
After unloading, optional bumpers, front wall and side wall panels, lower rear side and the guards made of material Q235A, as bolted connections, the rear guard of the cross-section size of 100 × 48mm, above ground to 400mm |
||||||
Chassis Specifications | |||||||
Chassis Model |
BJ3043D8PDA-S |
Chassis Name |
Dump Truck Chassis |
||||
Brand name |
Foton |
Manufacturer |
Foton Motor Co., Ltd. |
||||
Overall Dimension( L*W*H) |
5770×2100×2380 |
Tyre |
6 |
||||
Approach/departure angle |
27/22 |
Size of the Tire |
7.50-16 |
||||
Leaf spring |
8/12+9 |
Track front |
1535 |
||||
Fuel type |
Diesel |
Rear |
1584 |
||||
Emission standards |
GB17691-2005 Europe3,GB3847-2005 |
||||||
Engine Model |
Engine Manufacturer |
Displacement |
Power |
||||
|
YN30CR-1 YZ4DA3-30 |
Chengdu Yunnei Power Co., Ltd. Weichai Yangzhou Diesel Engine Co., Ltd. |
2977 3660 |
95 83 |
||||
Box information |
Tipping system made in china The tipping system install middle of the bottom dumper box . Discharge from back ,have one back door |
||||||
Truck |
100% new truck |
||||||
Note: The cab, engine, gearbox, tire,color,cargo body size and others have options.
1 Due to improvements made to the product, data herein is subject to change without notice.
2. Different outfits are provided for the different configurations of the motor vehicles.
3. Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
4. JOYFLY reserves the rights to make final explanations
We are looking for long term cooperation with customers. Therefore, if there is any quality feedback, we shall provide technical support and after sales service promptly. Easy to wear off parts list for each model is available upon customer's request. Service parts shall be sent along with each complete truck as well to ensure easy maintenance and service of each truck.
