Quick Details
| Drive Wheel: | Capacity (Load): | Horsepower: | |||
| Condition: | Transmission Type: | Emission Standard: | |||
| Fuel Type: | Engine Capacity: | Gross Vehicle Weight: | |||
| Place of Origin: | Brand Name: | Model Number: | |||
| Dimensions (L x W x H) (mm): | color: | feul type: |
Top quality foton tipper truck for sale
--Dongfeng 8tons axles
--250mm high strength steel double-layer crossbeam
--170PS
Top quality foton tipper truck for sale
--Dongfeng 8tons axles
--250mm high strength steel double-layer crossbeam
--170PS
---Side thickness 10mm
---Bottom thickness 12mm
---Tipping system made in china
---Dongfeng Dana axles
---250mm high strength steel double-layer crossbeam
---ISO9001
----Tipping system according with customer, you can choose side discharging or rear discharging
All our products passed ISO 9001:2008 certificate and CCC certificate
Cabin |
King Kong Cab |
||
Driving Type |
4*2 |
6*4 |
8*4 |
Rated Paylaod(kg) |
7870/7885/8000 |
8000/12000/12500/13000 |
12700/12900/14000/ 16800/17800/18500 |
Gross Weight |
11940/16000 |
24000/24500/25000/26000 |
30000/31000 |
Emission Standard |
Euro II/III |
Euro II/III |
Euro II/III |
Engine Power |
240/260 |
240/260/290/330 |
260/290/330/360/380 |
Gear Box |
8JS118/9JS119 |
8JS118/9JS119/ 9JS135/12JS160T |
9JS119/9JS135/ 12JS160T/12JS180T |
Wheelbase(mm) |
3800/4500/4600 |
2900/3200/3600/ 3800/4300/4600/4900 |
2700/3000/3300/ 3600/3900/4200/4600 |
Frame |
Parallel865*317*(8+8)mm |
Parallel865*317*(8+8)mm |
Parallel865*317*(8+8)mm |
Truck Length(mm) |
7458-7948 |
7500-10000 |
9253-11320 |
Truck Width(mm) |
2500 |
2500 |
2500 |
Truck Height(mm) |
2939-3250 |
3043-3510 |
2956-3735 |
Cargo Box Length(mm) |
4200/4500/4800/ 5300/5500/5700 |
4600/4800/5000/5200/ 5400/5600/5800/6000/ 6200/6500/6700/7000/ 7300/7500/7800/8500 |
6200/6500/6700/7000/ 7200/7300/7600/7800/ 8000/8200/8500/8800/ 9500 |
Cargo Box Width(mm) |
2500 |
2500 |
2500 |
Cargo Box Height(mm) |
600/800 |
1500/1400/1300/ 1235/1200/1150/1000 |
1500/1300/1200/1150/ 1000/950/900 |
Hydraulic Lifting |
Front |
Front |
Front |
Tyre |
11.00-20/11.00R20/ 12.00-20/12.00R20/ 12.00R22.5 |
11.00-20/11.00R20/ 12.00-20/12.00R20/ 12.00R22.5 |
11.00-20/11.00R20/ 12.00-20/12.00R20/ 12.00R22.5 |
Fuel Tank(L) |
280-400 |
280-400 |
280-400 |
|
All the specifications above are only for reference, for any detailed request, please get in touch with us | |||

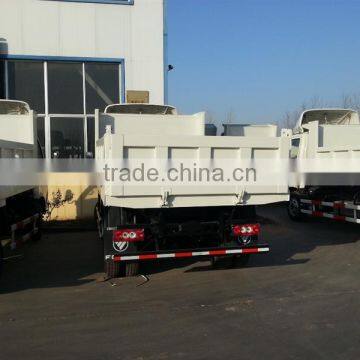

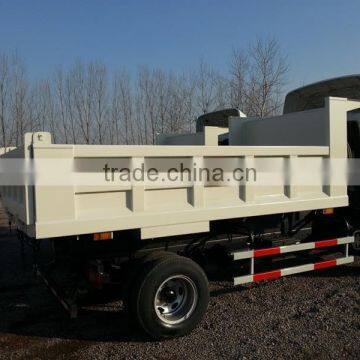

More 4x2 dump truck pictures showing
Following show yellow color real 4x2 dump truck
Note: The cab, engine, gearbox, tire,color,cargo body size and others have options.
1 Due to improvements made to the product, data herein is subject to change without notice.
2. Different outfits are provided for the different configurations of the motor vehicles.
3. Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
4. JOYFLY reserves the rights to make final explanations
We are looking for long term cooperation with customers. Therefore, if there is any quality feedback, we shall provide technical support and after sales service promptly. Easy to wear off parts list for each model is available upon customer's request. Service parts shall be sent along with each complete truck as well to ensure easy maintenance and service of each truck.
