Technical Parameters

Product Name

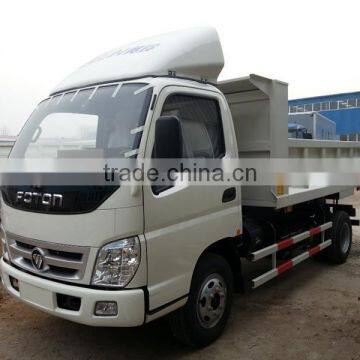

BJ3043D8PDA-S Dump Truck

Product No

ZHA7K3FC08H

Total Mass

4110

Rated Load

1490

Overall Dimension( L*W*H)

5950,5750*2100*2500

Curb Mass

2490

Compartment Size( L*W*H)

3700,3500×2000×600,800

Cab Number

2

Carrying Utilization Factor

0.65

Approach/departure angle

27/22

Overhang Front/rear

1150/1400,1150/1200,1150/1500,1150/1300

Axes

2

Wheelbase(mm)

3400,3300

Axle load

1600/2510

Max.speed(km/h)

80

Others

After unloading, optional bumpers, front wall and side wall panels, lower rear side and the guards made of material Q235A, as bolted connections, the rear guard of the cross-section size of 100 × 48mm, above ground to 400mm

Chassis Specifications

Chassis Model

BJ3043D8PDA-S

Chassis Name

Dump Truck Chassis

Brand name

Foton

Manufacturer

Foton Motor Co., Ltd.

Overall Dimension( L*W*H)

5770×2100×2380

Tyre

6

Approach/departure angle

27/22

Size of the Tire

7.50-16

Leaf spring

8/12+9

Track front

1535

Fuel type

Diesel

Rear

1584

Emission standards

GB17691-2005 Europe3,GB3847-2005

Engine Model

Engine Manufacturer

Displacement

Power

YN30CR-1

YZ4DA3-30

Chengdu Yunnei Power Co., Ltd.

Weichai Yangzhou Diesel Engine Co., Ltd.

2977

3660

95

83

Box information

Tipping system made in china

The tipping system install middle of the bottom dumper box .

Discharge from back ,have one back door

Truck

100% new truck
