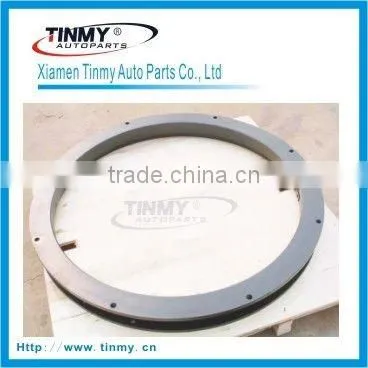

Forging Turntable for Trailer:
Tinmy Turntable factory can supply different turntables for semi-trailers, full trailers and tractors.
1)Type: Z type, UA type, UB type
2)Size: 400mm~1300mm
3)Used: semi-trailers, full trailers and tractors
4)Tonnage: 20ton
5)Ball: Single,Double
6)Casting, Forging type
7) Material: Steel QT500-7
8)Certificate:ISO9001:2000 /TS16949
some technical info for your reference.
| Item No. | A | B | E | F | H | Weight | Ring Thickness | Ball Dia. |
| mm | mm | mm | mm | mm | kg | mm | ||
| TMTS500-A01 | 500 | 500 | 392 | 376 | 55 | 32 | 10 | 16 |
| TMTS685-A01 | 685 | 700 | 590 | 565 | 80 | 45 | 13 | 16 |
| TMTS880-A01 | 880 | 895 | 779 | 754 | 80 | 60 | 13 | 16 |
| TMTS1000-A01 | 1000 | 1015 | 885 | 860 | 80 | 76 | 14 | 22 |
| TMTS1000-A02 | 1022 | 1013 | 879 | 856 | 90 | 85 | 14 | 22 |
| TMTS1000-A03 | 1000 | 1015 | 885 | 860 | 90 | 84 | 14 | 22 |
| TMTS1100-A01 | 1100 | 1115 | 985 | 960 | 90 | 98 | 15 | 22 |
| TMTS1100-A02 | 1100 | 1111 | 983 | 949 | 90 | 98 | 15 | 22 |
| TMTS1200-A01 | 1200 | 1211 | 1083 | 1050 | 90 | 110 | 15 | 22 |
| TMTS1300-A01 | 1300 | 1315 | 1180 | 1146 | 90 | 118 | 16 | 22 |
| TMTS1300-A02 | 1300 | 1315 | 1185 | 1160 | 90 | 118 | 16 | 22 |
