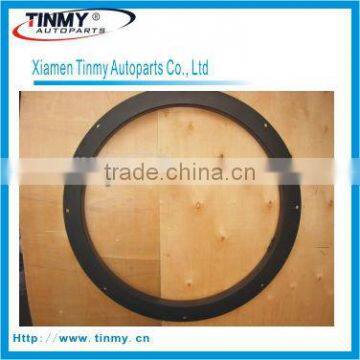

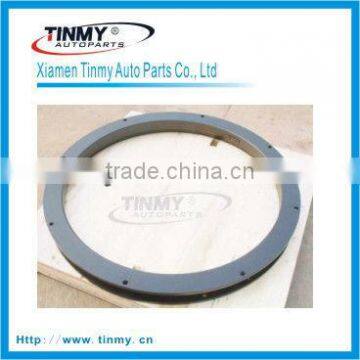

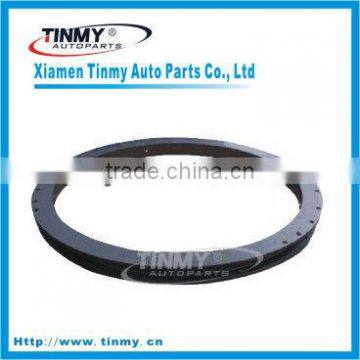

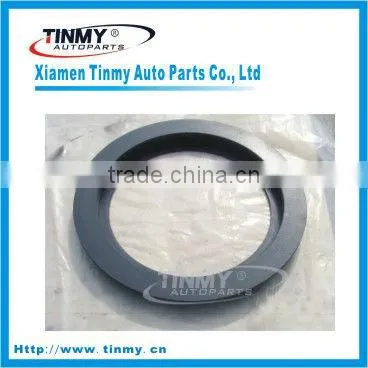

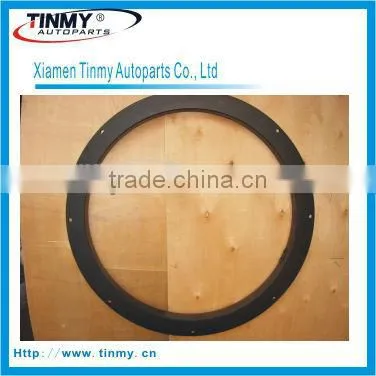

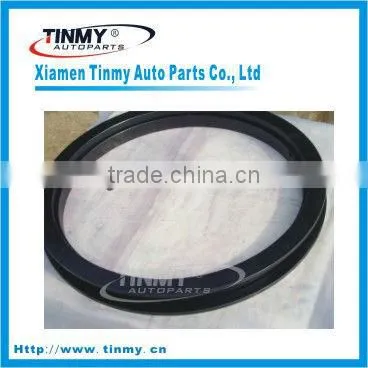

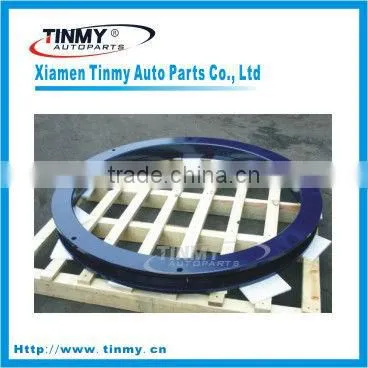

Ball Bearing Turntable for Semi-Trailer
US$ 35 - 135
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Parts:
Trailer Suspension
OEM No.:
TMTS1100-A02
Max Payload:
20T
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Xingang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Parts
Trailer Suspension
OEM No.
TMTS1100-A02
Max Payload
20T
Size
1100mm, 1100
Place of Origin
Fujian, China
Brand Name
TINMY
Model Number
TMTS1100-A02
Ball BearingTurntable:
| Item No. | A | B | E | F | H | Weight | Ring Thickness | Ball Dia. |
| mm | mm | mm | mm | mm | kg | mm | ||
| TMTD650-B01 | 650 | 665 | 552 | 510 | 80 | 74 | 14 | 16/19 |
| TMTD880-B01 | 880 | 895 | 780 | 740 | 80 | 80 | 14 | 16/19 |
| TMTD1096-B01 | 1096 | 1110 | 990 | 950 | 80 | 100 | 14 | 16/22 |
| TMTD1000-B01 | 988 | 1000 | 870 | 830 | 92 | 88 | 14 | 16/19 |
| TMTD1100-B01 | 1095 | 1108 | 975 | 940 | 92 | 100 | 15 | 16/22 |
| TMTD1200-B01 | 1195 | 1208 | 1076 | 1040 | 92 | 118 | 15 | 16/22 |
| TMTD1200-B02 | 1198 | 1215 | 1075 | 1040 | 92 | 120 | 16 | 16/22 |
| Item No. | A | B | E | F | H | Weight | Ring Thickness | Ball Dia. |
| mm | mm | mm | mm | mm | kg | mm | ||
| TMTS500-D01 | 500 | 437 | 379 | 310 | 52 | 25 | 10 | 16 |
| TMTS650-D01 | 650 | 587 | 523 | 465 | 52 | 32 | 10 | 16 |
| TMTS750-D01 | 750 | 687 | 620 | 565 | 52 | 36 | 10 | 16 |
| TMTS850-D01 | 850 | 787 | 723 | 665 | 52 | 41 | 10 | 16 |
| TMTS950-D01 | 950 | 888 | 820 | 752 | 56 | 45 | 12 | 16 |
| TMTS950-D02 | 952 | 885 | 821 | 750 | 60 | 48 | 12 | 20 |
| TMTS1050-D01 | 1050 | 987 | 923 | 865 | 52 | 53 | 12 | 16 |
| TMTS1100-D01 | 1102 | 1027 | 923 | 854 | 56 | 61 | 12 | 20 |
Tinmy Turntable factory can supply different turntables for semi-trailers, full trailers and tractors.
The Size from 400-1300 slewing rings with JOST TYPE AND BPW TYPE.
We have forging turntables and Casting turn table
1>.Size:400-1300, Any size is available
2>.Certificate: ISO/TS16949
3>. Turntables for trailers & tractors
4>. Delivery: Within two weeks after receive TT deposit payment or LC.
5>. Material: Steel QT500-7
6>.High quality with competitive price.
Xiamen Tinmy Co., Ltd, which belongs to Xiamen Tinmy Inc., Is a leading supplier in auto parts and construction machine parts that organized by several factories and joint-ventured manufacturers and is successfully certified with TS16949 and ISO9001/2000 quality control system. With more then ten years' development, our construction machine department can supply a full range of spare parts for undercarriage spare parts and bucket and so on . Our main spare parts are track roller,top roller,sprocket,track link ,bolt & nut, bucket ,teeth ,adaptor,muffler etc .
| Item No. | A | B | E | F | H | Weight | Ring Thickness | Ball Dia. |
| mm | mm | mm | mm | mm | kg | mm | ||
| TMTS500-A01 | 500 | 500 | 392 | 376 | 55 | 32 | 10 | 16 |
| TMTS685-A01 | 685 | 700 | 590 | 565 | 80 | 45 | 13 | 16 |
| TMTS880-A01 | 880 | 895 | 779 | 754 | 80 | 60 | 13 | 16 |
| TMTS1000-A01 | 1000 | 1015 | 885 | 860 | 80 | 76 | 14 | 22 |
| TMTS1000-A02 | 1022 | 1013 | 879 | 856 | 90 | 85 | 14 | 22 |
| TMTS1000-A03 | 1000 | 1015 | 885 | 860 | 90 | 84 | 14 | 22 |
| TMTS1100-A01 | 1100 | 1115 | 985 | 960 | 90 | 98 | 15 | 22 |
| TMTS1100-A02 | 1100 | 1111 | 983 | 949 | 90 | 98 | 15 | 22 |
| TMTS1200-A01 | 1200 | 1211 | 1083 | 1050 | 90 | 110 | 15 | 22 |
| TMTS1300-A01 | 1300 | 1315 | 1180 | 1146 | 90 | 118 | 16 | 22 |
| TMTS1300-A02 | 1300 | 1315 | 1185 | 1160 | 90 | 118 | 16 | 22 |
