Semi Trailer Turntable

Semi Trailer Turntable thumbnail-1
Semi Trailer Turntable photo-1
US$ 35 - 180 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Parts:
Trailer Suspension
Max Payload:
3-25 Tons
Size:
400-1300mm
Contact Supplier Request Quote Chat Now
Xiamen Tinmy Autoparts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Parts Trailer Suspension
Max Payload 3-25 Tons
Size 400-1300mm
Brand Name Tinmy
Model Number TMTSD1100-B01

Specifications

Semi Trailer Turntable:
1>.Size:400-1300mm
2>Material:QT500-7
3>Surface treatment:black painting.
4>.Certificate:TS16949.




Product Description

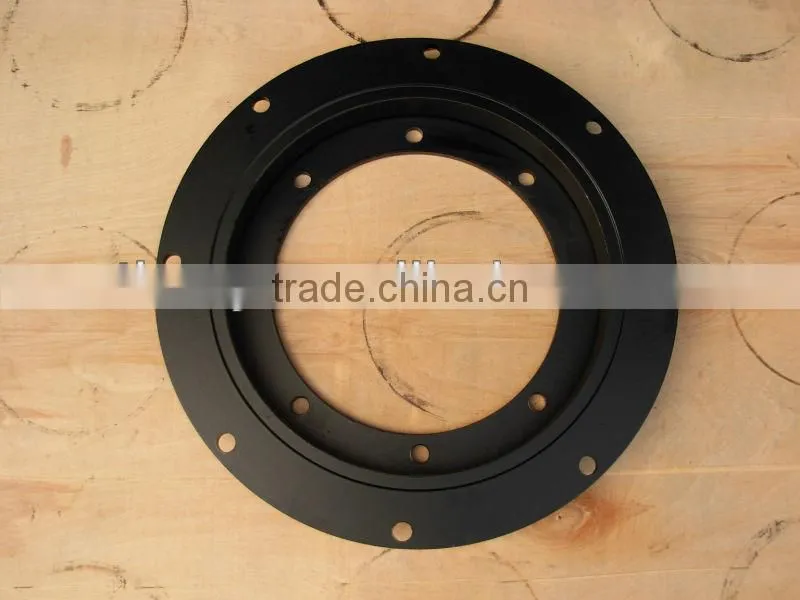

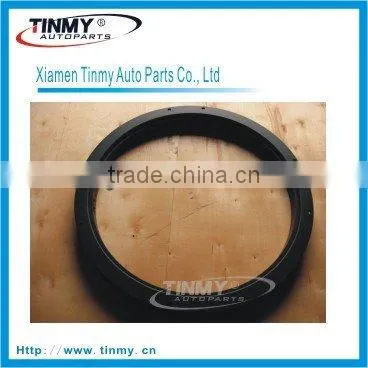

Semi Trailer Turntable:
1>.Size:400-1300mm
2>Material:QT500-7
3>Surface treatment:black painting.
4>.Certificate:TS16949.

Tinmy Turntable factory can supply different turntables for semi-trailers, full trailers and tractors.

The Size from 400-1300 slewing rings with JOST TYPE AND BPW TYPE.

We have forging turntables and Casting turn table




Item No. A B  E   F     H      Weight Ring Thickness Ball Dia.
mm mm mm mm mm kg mm
  TMTD650-B01 650 665 552 510 80 74 14 16/19
  TMTD880-B01 880 895 780 740 80 80 14 16/19
  TMTD1096-B01 1096 1110 990 950 80 100 14 16/22
  TMTD1000-B01 988 1000 870 830 92 88 14 16/19
  TMTD1100-B01 1095 1108 975 940 92 100 15 16/22
  TMTD1200-B01 1195 1208 1076 1040 92 118 15 16/22
  TMTD1200-B02 1198 1215 1075 1040 92 120 16 16/22





Item No. A B  E   F     H      Weight Ring Thickness Ball Dia.
mm mm mm mm mm kg mm
  TMTS500-D01 500 437 379 310 52 25 10 16
  TMTS650-D01 650 587 523 465 52 32 10 16
  TMTS750-D01 750 687 620 565 52 36 10 16
  TMTS850-D01 850 787 723 665 52 41 10 16
  TMTS950-D01 950 888 820 752 56 45 12 16
  TMTS950-D02 952 885 821 750 60 48 12 20
  TMTS1050-D01 1050 987 923 865 52 53 12 16
  TMTS1100-D01 1102 1027 923 854 56 61 12 20





Item No. A B  E   F     H      Weight Ring Thickness Ball Dia.
mm mm mm mm mm kg mm
  TMTS500-A01 500 500 392 376 55 32 10 16
  TMTS685-A01 685 700 590 565 80 45 13 16
  TMTS880-A01 880 895 779 754 80 60 13 16
  TMTS1000-A01 1000 1015 885 860 80 76 14 22
  TMTS1000-A02 1022 1013 879 856 90 85 14 22
  TMTS1000-A03 1000 1015 885 860 90 84 14 22
  TMTS1100-A01 1100 1115 985 960 90 98 15 22
  TMTS1100-A02 1100 1111 983 949 90 98 15 22
  TMTS1200-A01 1200 1211 1083 1050 90 110 15 22
  TMTS1300-A01 1300 1315 1180 1146 90 118 16 22
  TMTS1300-A02 1300 1315 1185 1160 90 118 16 22




Company Information

Xiamen Tinmy Autoparts Co., Ltd, belongs to Tinmy Group.

Our company is a leading supplier in auto parts that organized

 by several factories and jointventured manufacturers,

which are successfully certified with TS16949 and ISO9001/2000 quality control system




Packaging & Shipping

Package: By pallet in standard packing.

Lead Time: Within 20 days after the order is confirmed.




Our Services

No matter you are looking for a regular Turntable products or need special design,

kindly send us relevant production information you have,

i am here with our engineers will try best to find the right parts for you


FAQ

Trade Term: FOB, CIF or CNF.

Payment Term: T/T, L/C and West Union.
