Help CenterBimetal Bush/ Bushing 77X70X70
Related Products
Specifications
Bimetal Bush1. Material: Bronze+Steel
2. Type: Nylon,Bi-metal,Rubber,Copper
3. High quality

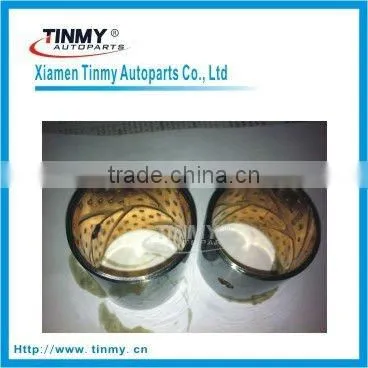

Bimetal Bush
- Introduction
Bi-Metal bushing is composed of high quality low carbon steel and bronze with the characters of wear high speed, high load capacity, very compact dimensions, low wear.
It is most suitable for petrol engines, diesel engines, civil engineering equipment, Lift,air-conditioning and gear boxes, speed boxes, industrial vehicles, steel plate springs, joints etc.
- Features
1. High fatigue and impact bearing capacity
2. High loading capacity
3. Lubricating grooves design
- Specifications
Material |
JF-800 |
Steel+Bronze(CuSn10Pb10) |
JF850 |
Steel+ Bronze(CuSn6Zn6Pb3) |
|
JF-720 |
Steel+ Bronze(CuSn4Pb24) |
|
JF-20 |
Steel+ Bronze(AlSn20Cu) |
|
JF700 |
Steel+ Bronze(CuPb30) |
|
Load capacity |
|
150N/mm2 |
Speed limit |
Oil lubricating |
2.5m/s |
Dry Friction |
0.4m/s |
|
PV value limit |
Oil lubricating |
10N/mm2.m/s |
Dry friction |
2.8 N/mm2.m/s |
|
Mating axis required |
Hardness |
>=48~53HRC |
Roughness |
Ra=0.16~0.63 |
|
Friction coef |
|
0.05-0.22 |
Working temperature max. |
|
200°C |
