Help Center28T Landing Gear for Semi Trailer
US$ 115 - 130
MOQ: 5 Pairs
Key Specifications
Get Latest Price
Parts:
Trailer Plugs
OEM No.:
TMLO-28
Max Payload:
80T
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Parts
Trailer Plugs
OEM No.
TMLO-28
Max Payload
80T
Size
14''-19''
Place of Origin
Fujian, China
Brand Name
TINMY
Model Number
TMLO-28

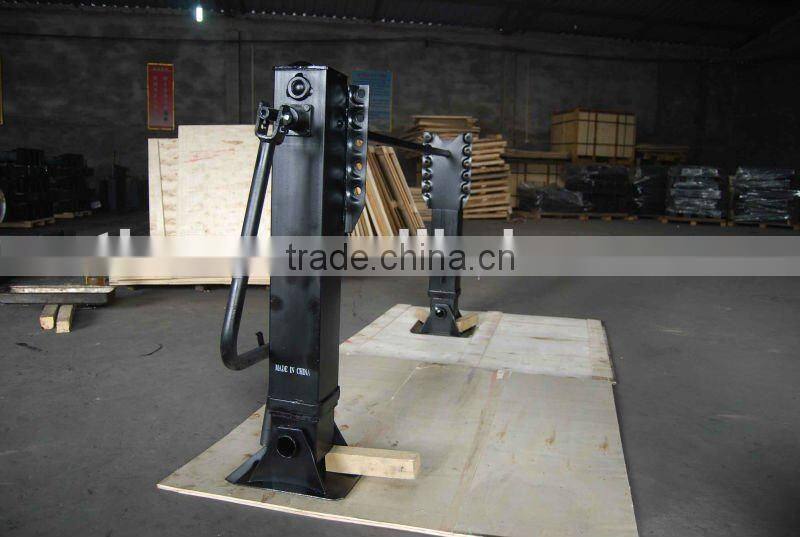

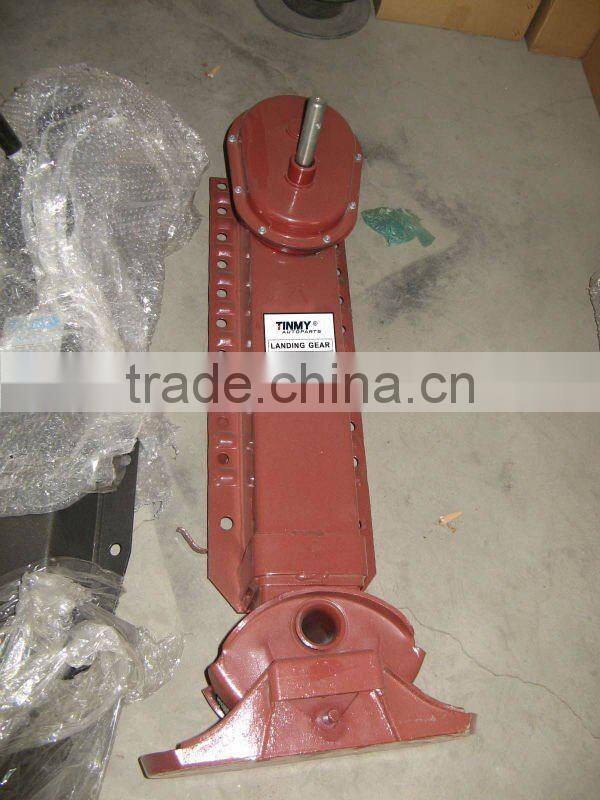

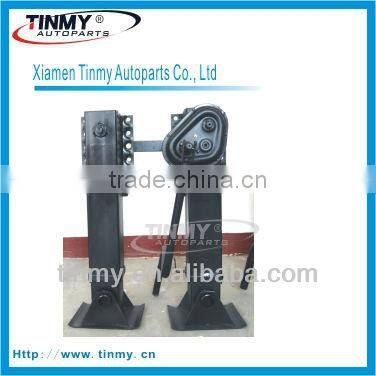

28T Landing gear for semi trailer:
1. The main capacity including 9ton,11ton,25ton,28ton,30ton,35ton.
Also 3tons and 6 tons landing gear are available.
2. Competitive price and high quality.
3. Certificate: ISO9001/TS16949
Function & Attention:
1. Landing Gear is one of the important equipments of semi-trailer.
It is adopted to lift and load semi-trailer after leaving and to use as lifter while vehicle maintainance.
2. Landing Gear has slow and fast two speed.
Please use slow speed when loading. It is easy to operate.
Do not use fast speed. It is possible to injure landing gear.
Gearbox Inside details:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lift Speed/turn | Weight (Kg) | Remarks | |
| max | min | ||||||
| TMLI-25 | 14"/17"/19" | 80T | 25T | 6 | 0.67 | 100 | single-side operation |
| TMLI-28 | 14"/17"/19" | 80T | 28T | 7.5 | 0.83 | 102 | single-side operation |
| TMLI-30 | 14"/17"/19" | 80T | 30T | 7.5 | 0.7 | 108 | single-side operation |
Gearbox Outside details:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lift Speed/turn | Weight (Kg) | Remarks | |
| max | min | ||||||
| TMLO-25 | 14"/17"/19" | 80T | 25T | 4.33 | 0.57 | 108 | single-side operation |
| TMLO-28 | 14"/17"/19" | 80T | 28T | 5.42 | 0.72 | 110 | single-side operation |
| TMLO-30 | 14"/17"/19" | 80T | 30T | 5.42 | 0.72 | 116 | single-side operation |
| TMLO-35 | 14"/17"/19" | 80T | 35T | 5.42 | 0.72 | 120 | single-side operation |
