Trailer Landing Legs, Trailer Support Legs
US$ 115 - 130
MOQ: 5 Pairs
Key Specifications
Get Latest Price
Parts:
Trailer Suspension
OEM No.:
TMLO-30
Max Payload:
80 TON
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Parts
Trailer Suspension
OEM No.
TMLO-30
Max Payload
80 TON
Size
30 Ton
Place of Origin
Fujian, China
Brand Name
TINMY
Model Number
TMLO-30
Product Description

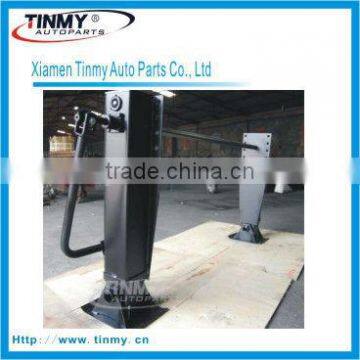

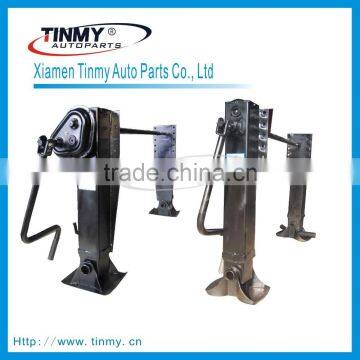

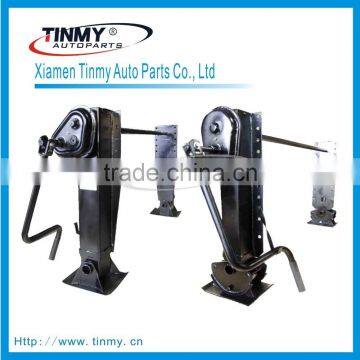

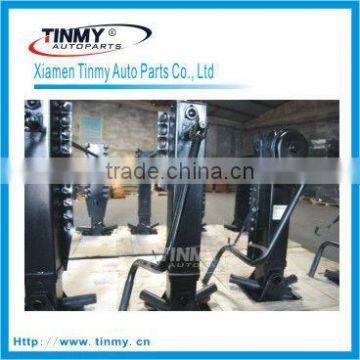

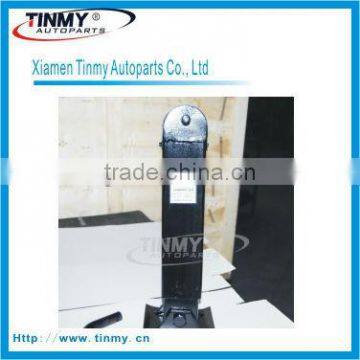

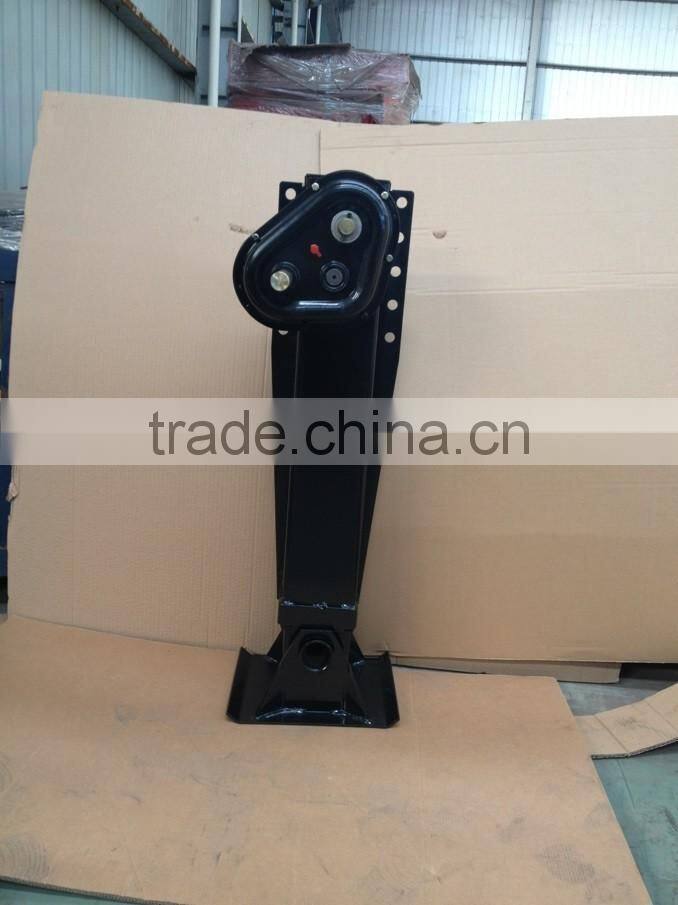

Trailer landing legs
1) Lifting Capacity: 25T, 28T, 30T, 35T
2) Types: Fuwa, Jost, Holland type
3) Gearbox: Inside & Outside type
4) Shoe Types: T, S, A, R type & casting T shoe
5) High quality, Competitive price, Fast delivery
6) Certificate: ISO 9001:2000 /TS16949
7) Customized service is available
Gearbox Inside Type
| Item No. | Travel | Static Capacity | Lifting Capacity | Lift Speed/turn | Weight (Kg) | Remarks | |
| max | min | ||||||
| TMLI-25 | 14"/17"/19" | 80T | 25T | 6 | 0.67 | 100 | single-side operation |
| TMLI-28 | 14"/17"/19" | 80T | 28T | 7.5 | 0.83 | 102 | single-side operation |
| TMLI-30 | 14"/17"/19" | 80T | 30T | 7.5 | 0.7 | 108 | single-side operation |
Gearbox Outside Type
| Item No. | Travel | Static Capacity | Lifting Capacity | Lift Speed/turn | Weight (Kg) | Remarks | |
| max | min | ||||||
| TMLO-25 | 14"/17"/19" | 80T | 25T | 4.33 | 0.57 | 108 | single-side operation |
| TMLO-28 | 14"/17"/19" | 80T | 28T | 5.42 | 0.72 | 110 | single-side operation |
| TMLO-30 | 14"/17"/19" | 80T | 30T | 5.42 | 0.72 | 116 | single-side operation |
| TMLO-35 | 14"/17"/19" | 80T | 35T | 5.42 | 0.72 | 120 | single-side operation |
Function & Attention:
1, Landing Gear is one of the important equipments of semi-trailer. It is adopted to lift and load semi-trailer after leaving and to use as lifter while vehicle maintenance.
2, Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure landing gear.
Packaging & Shipping
By pallet in seaworthy packing.
Our Services
Sample service, Customzied service
