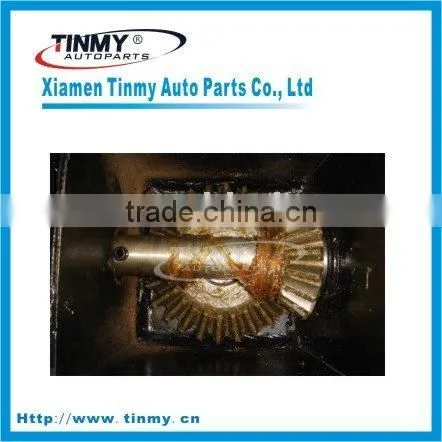

TINMY Landing gear parts:grease and gear

Specifications

Landing gear
1,Gear box Inside & Outside
2,Capacity:9ton,11ton,25ton,28ton,30ton,35ton
3,JOST,FUWA,HOLLAND Type

Landing gear



Gearbox Inside details

Item  No.	Travel	Static Capacity	Lifting Capacity	Lift Speed/turn		Weight            (Kg)	Remarks
				max	min
TMLI-25	14"/17"/19"	80T	25T	6	0.67	100	single-side operation
TMLI-28	14"/17"/19"	80T	28T	7.5	0.83	102	single-side operation
TMLI-30	14"/17"/19"	80T	30T	7.5	0.7	108	single-side operation



Gearbox Outside details

Item  No.	Travel	Static Capacity	Lifting Capacity	Lift Speed/turn		Weight            (Kg)	Remarks
				max	min
TMLO-25	14"/17"/19"	80T	25T	4.33	0.57	108	single-side operation
TMLO-28	14"/17"/19"	80T	28T	5.42	0.72	110	single-side operation
TMLO-30	14"/17"/19"	80T	30T	5.42	0.72	116	single-side operation
TMLO-35	14"/17"/19"	80T	35T	5.42	0.72	120	single-side op



Note:

1, Gear box inside and outside with JOST,FUWA , Holland type for semi trailer.

2, The main capacity including 9ton,11ton,25ton,28ton,30ton,35ton.
 Also 3tons and 6 tons landing gear are available.

3, Competitive price and high quality.

4, Certificate: ISO/TS16949



Function & Attention:
1, Landing Gear is one of the important equipments of semi-trailer. It is adopted to lift and load semi-trailer after leaving and to use as lifter while vehicle maintenance.
2, Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure landing gear.
