Help Center35Ton Semi Trailer Landing Gear
US$ 125 - 145
MOQ: 10 Pairs
Key Specifications
Get Latest Price
Parts:
Trailer Plugs
OEM No.:
35Ton
Max Payload:
80Ton
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Parts
Trailer Plugs
OEM No.
35Ton
Max Payload
80Ton
Size
14''/17"/19''
Place of Origin
Fujian, China
Brand Name
TINMY
Model Number
TMLO-35
Product Description

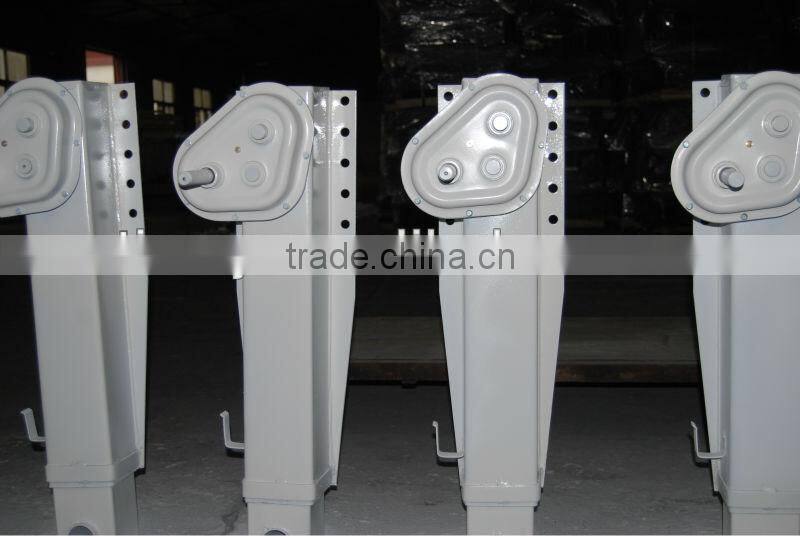

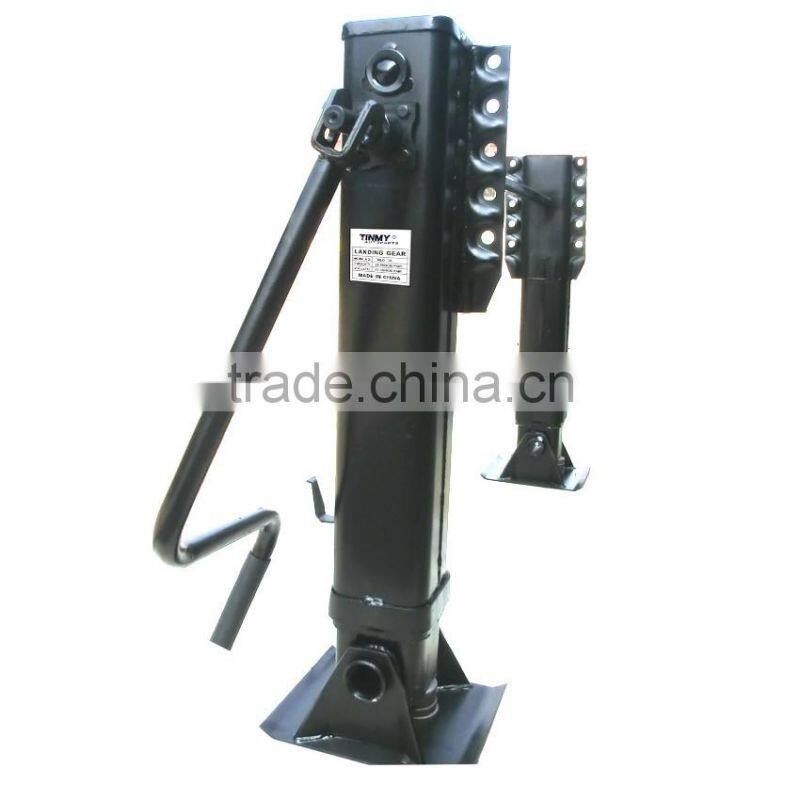

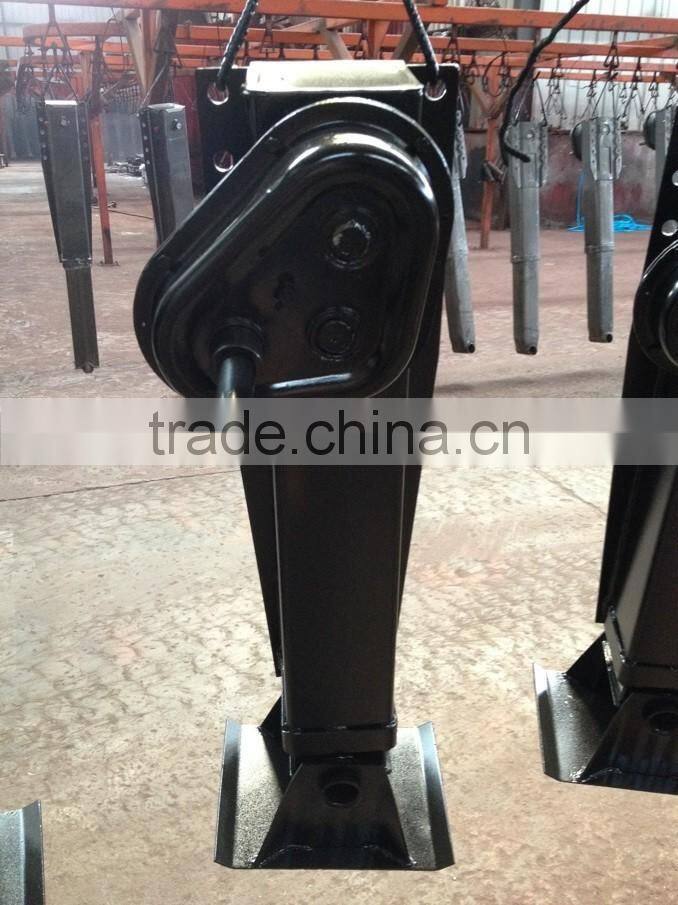

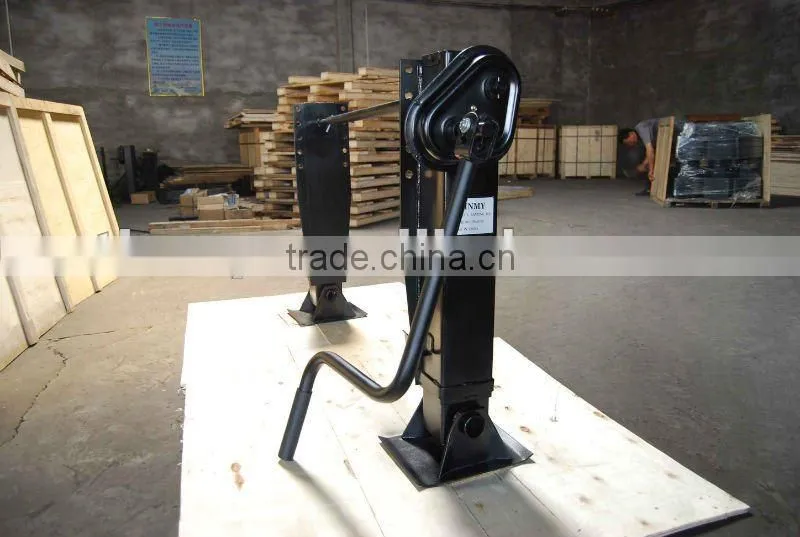

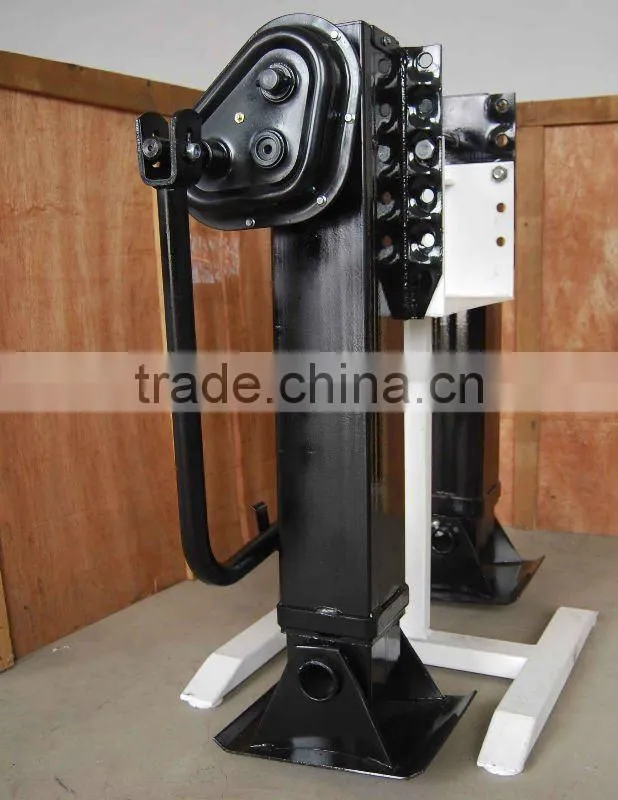

Semi Trailer Landing Gear
1) Types: Fuwa, Jost, Holland type Landing Gear
2) Capacity: 25T, 28T, 30T, 35T
3) Static Capacity: 80Ton
4) Gearbox: Inside & Outside type Landing Gear
5) Shoe Type: T, S, A, R type, casting T shoe
6) Certificate: ISO9001:2000/TS16949
7) Customized service, made by customers' request
Gearbox Inside:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lift Speed/turn | Weight(Kg) | Remarks | |
| max | min | ||||||
| TMLI-25 | 14"/17"/19" | 80T | 25T | 6 | 0.67 | 100 | single-side operation |
| TMLI-28 | 14"/17"/19" | 80T | 28T | 7.5 | 0.83 | 102 | single-side operation |
| TMLI-30 | 14"/17"/19" | 80T | 30T | 7.5 | 0.7 | 108 | single-side operation |
Gearbox Outside:
| Item No. | Travel | Static Capacity | Lifting Capacity | Lift Speed/turn | Weight(Kg) | Remarks | |
| max | min | ||||||
| TMLO-25 | 14"/17"/19" | 80T | 25T | 4.33 | 0.57 | 108 | single-side operation |
| TMLO-28 | 14"/17"/19" | 80T | 28T | 5.42 | 0.72 | 110 | single-side operation |
| TMLO-30 | 14"/17"/19" | 80T | 30T | 5.42 | 0.72 | 116 | single-side operation |
| TMLO-35 | 14"/17"/19" | 80T | 35T | 5.42 | 0.72 | 120 | single-side operation |
Packaging & Shipping
By Pallet, in seaworthy packing
Our Services
Sample Service, Customized Service
Company Information
Tinmy landing gear factory can supply different design products according to customers' requirment.
The main products are 25T, 28T,30T, 35T capacity landing gear with gearbox ourside and inside type.
