Help CenterHeavy Duty Bulldozer TM120
Related Products
Specifications
Heavy Duty Bulldozer TM120:1. Good quality and competitive price bulldozer
2. Certificate: ISO/TS16949
3. Material: steel

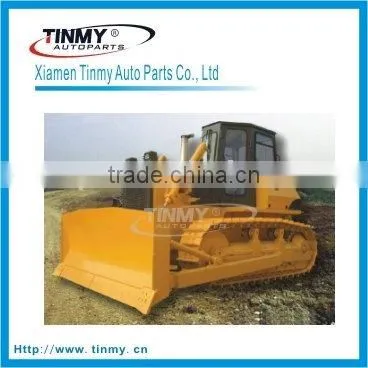

Heavy Duty Bulldozer TM120:
Xiamen Tinmy Co., Ltd, which belongs to Xiamen Tinmy Inc., is a leading supplier in auto parts and construction machine parts that organized by several factories and joint-ventured manufacturers and is successfully certified with TS16949 and ISO9001/2000 quality control system.
Type: Bulldozer TM120
Other type is followed:
1) Komatsu: PC40, PC60-5-6-7, PC100, PC120, PC130, PC240,
PC200-1-3-5-6, PC220-1-3-5, PC300-3-5, PC4001-3-5, D20, D30, D31,
D50, D60, D75, D80 (D85), D155
2) Hitachi: EX40, EX60, EX150, EX100M, EX100, EX120, EX150,
EX200-1-2-3, EX300-1-3-5, EX400, UH08, UH07
3) Cat: E110B, E200B (E320), E240 (MS180), E300B, E330, D3C, D5, D5B, D5D, D6C, D6D, D6H, D7G, D8K
4) Daewoo: DH220, DH280, R200, R210
5) Kato: HD250, HD400 (HD450), HD500, HD550, HD700 (HD770), HD800, HD820, HD850, DH880, HD1020, HD1220 (HD1250), HD1430, DH1880
6) Kobelco: SK07N2, SK07-7SK200, SK220, SK300, SK320
7) Sumitomo: SH120, SH200, SH280, SH300, SH400
8) Mitsubishi: MS110, MS120, MS180
9) Samsung: SE55, SE210 SE120
Flow amplification steering, power shift speed regulation, and hydraulic controlled work devices feature convenient operation,
Engine Model: CUMMINS NTA855-C360
Type: Turbocharging, inter-cooloing, vertical type
Cylinder quty.-bore×stroke 6-139.7×152.4mm
Piston displacement: 14L
Rated power: 235kW
Max.torque: 1000N.m/1400rpm
Rated speed: 2000rpm
Fuel consumption: 242g/kW.h
Start motor: 24V,11kW
Generator: 28V,35A
Battery: 24V(12 ×2)-195Ah×2
Drive System
Hydraulic torque converter 3 components, single-stage, single phase
Power shift transmission: Planetary gear, multi-disc clutch, hydraulic integrated forced lubrication
Main drive: Spiral bevel gear, splash lubrication
Steering clutch: Wet, multi-disc, spring-pressed, hydraulic release
Final drive: 2-stage spur gear reduction, splash lubrication
Travel System
Suspension type: Semi-rigid, equalizing beam float type
Drive wheel: Insert block type, drive gear
Amt.of carrier wheel(each side): 2
Amt.of supporting wheel(each side): 7
Working Devices
Blade type: Straight tilt type/semi-U type
Width×Height: 4130×1590/4030×1720 mm
Blade capacity: 10.4/11.7
Scarifier type: 3-grouser, 1-grouser
Max.blade tilt range: 1000mm
Crawler
Type: Assembly type/ single-grouser
Grouser height: 80mm
Amt.of track shoe: 41×2
Track shoe width: 560mm
Track center distance: 228.6mm 2140mm
Ground contact length: 3150mm
Hyraulic system of working devices
Type: Gear type
Working pressure: 13.7MPa
Rated flow: 355(L/min)
Blade cylinder cylinder bore×stoke: Φ140×Φ 75× 1346(mm)
Blade tilting cylinder cylinder bore×shaft diameters×stroke
Φ225×Φ90×80(mm)
Scarifier hoisting cylinder: cylinder bore×shaft diameter×stroke
Φ225×Φ90×540(mm)
Scarifier adjusting cylinder: cylinder bore×Shaft diameter×stroke
Φ225×Φ90×500(mm)
Parameters
Bare machine weight: 36700kg
Max.traction: 300kN
Min.turning radius: 3940mm
Max.gradeability: 30
Min.ground clearance: 500mm
Fuel tank volume: 600L
Ground pressure: 0.104MPa
