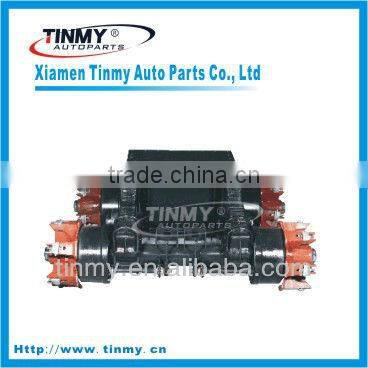

28 Ton Germany BPW Spider Type Complete Spoke Boogie

Xiamen Tinmy Autoparts Co., Ltd.
28 Ton Germany BPW Spider Type Complete Spoke Boogie thumbnail-1
28 Ton Germany BPW Spider Type Complete Spoke Boogie photo-1
US$ 2,500 - 3,500 MOQ: 5 Units
Key Specifications
Get Latest Price
Parts:
Trailer Suspension
OEM No.:
Spoke, Drum
Max Payload:
60ton
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Tianjin Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Parts Trailer Suspension
OEM No. Spoke, Drum
Max Payload 60ton
Size 24,28,32,40 TONS
Place of Origin Fujian, China
Brand Name TINMY
Model Number TMBS40-B01;TMBS40-A01

Specifications

28 Ton Germany BPW Spider Type Complete Spoke Boogie
1.Type:Drum,Spoke,Spider
2. Brake:S420x180,420x200,420x220
3. 24~40T

28 Ton Germany BPW Spider Type Complete Spoke Boogie:





1) Type: Drum,Spoke,Spider
2) Certificate: ISO/TS16949

3) Capacity: 24T,28T,32T,40T

4) Brake: S420x180,420x200,420x220
5) Track: 1840
6) Wheel base: 1400,1550

7) Beam : 150*150*12 ,150*150*14,150*150*16

8) PCD: 335mm

9) German BPW type Boogie axle





 28 Ton Germany BPW Spider Type Complete Spoke Boogie





Mechanical suspension, bogie suspension and air suspension with high quality and competitive price:

1.1-axle, 2-axle, 3-axle and 4-axle mechanical suspension and air suspension.

2. 24 T, 28 T, 32T and 40T  Bogie .

3. our yearly turnout is over 8000 units different suspension basic on on-time delivery.



Various axles for different trucks and trailers:

1. American Type Axle: 5.5T, 8T, 9T, 10.5T, 11T, 12T, 13T, 14T, 16T, 18T, 20T.

2. German Type Axle: 12T, 14T, 16T, 20T.

3. Other special axles are available according to clients' design or requirement.

4. The yearly turnout is over 100,000 pieces different axles basic on on-time delivery



Drum Bogie:

Item No.Capacity(T)Weight  (kg)Bearing typeAxle Tube  (mm)Brake Lining Size(mm)Track   (mm)P.C.D   (mm)Tyre ScrewSteel Turn Position(mm)Axle Space(mm)
TMBD24-A0124204033213   33118150×150×12Φ 420*1801840Φ33510-M22*2Φ2801400
TMBD28-A0128249233215   32219150×150×14Φ 420*2001870Φ33510-M22*2Φ2801550
TMBD32-A0132249232314   32222150×150×16Φ 420*2201870Φ33510-M22*2Φ2801550
TMBD40-A0140257232314   32222150×150×20Φ 420*2201870Φ33510-M22*2Φ2801550



Spoke Bogie:

Item No.Capacity(T)Weight  (kg)Bearing typeAxle Tube  (mm)Brake Lining Size(mm)Track   (mm)P.C.D   (mm)Tyre ScrewSteel Turn Position(mm)Axle Space(mm)
TMBD24-B0124185033213   33118150×150×12Φ 420*1801840Φ33510-M22*2Φ2801400
TMBD28-B0128232033215   32219150×150×14Φ 420*2001870Φ33510-M22*2Φ2801550
TMBD32-B0132232032314   32222150×150×16Φ 420*2201870Φ33510-M22*2Φ2801550
TMBD40-B0140254032314   32222150×150×20Φ 420*2202120Φ33510-M22*2Φ2801550



28 Ton Germany BPW Spider Type Complete Spoke Boogie28 Ton Germany BPW Spider Type Complete Spoke Boogie28 Ton Germany BPW Spider Type Complete Spoke Boogie28 Ton Germany BPW Spider Type Complete Spoke Boogie28 Ton Germany BPW Spider Type Complete Spoke Boogie28 Ton Germany BPW Spider Type Complete Spoke Boogie
