Help Center11ton Axles Without Brake
Related Products
Specifications
11ton Axles:1>drum&spoke axle
2>Capacity 11T, 12T, 13T, 14T, 16T, 20T axles
3>Certificate:ISO/TS16949
4>good quality

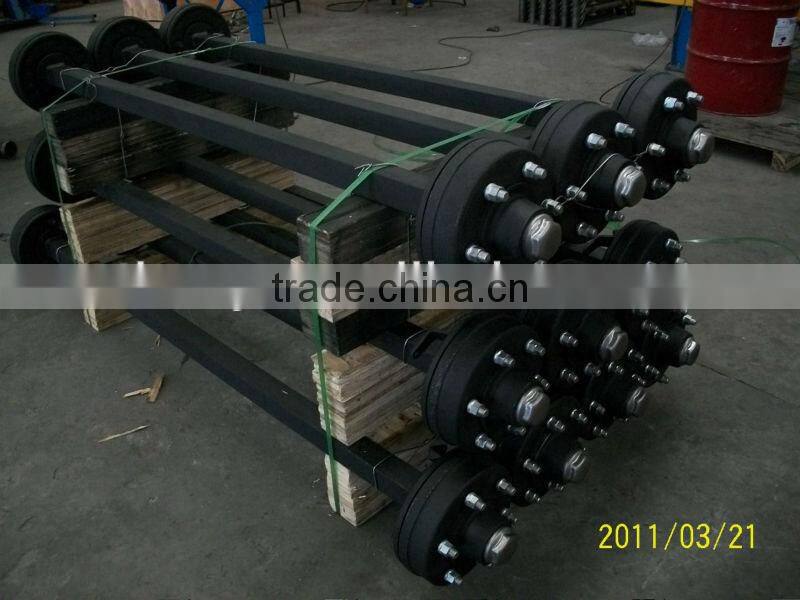

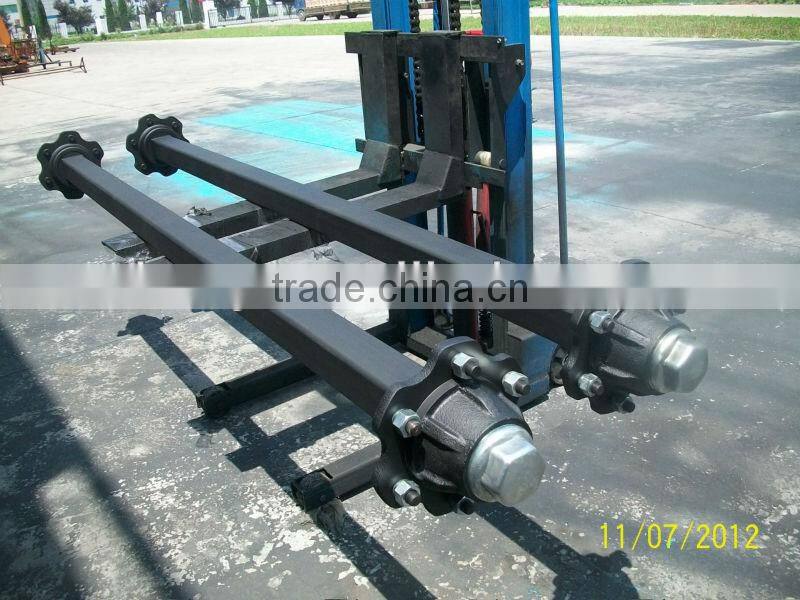

11ton Axles without Brake:
1>drum&spoke axles,
2>Capacity 11T, 12T, 13T, 14T, 16T, 20T axles
3>Certificate:ISO/TS16949
4>good quaity axles with competitive price and fast delivery
5> FUWA,BPW, SAF and TINMY Axles
Euro Drum Axles:
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Center Distance Of Chamber (mm) | Brake Spec(mm) | Wheel Fixing (mm) | Wheel Rim | Total Length (mm) | Weight (Kg) | Bearing |
| L2 | L3 | D1xD2 | L1 | Inner/Outer | ||||||
| TMAD10-E01 | 10 | 1820 | 150 | 490 | S 420*180 | 10xM22xΦ285.75×Φ220 | 7.5V-20 | 2115 | 360 | 33118/33213 |
| TMAD12-E01 | 12 | 1845 | 150 | 300 | S 420*180 | 10xM22xΦ287.75xΦ220 | 7.5V-20 | 2300 | 360 | 33118/33213 |
| TMAD14-E01 | 14 | 1800 | 150 | 240 | S 420*200 | 10xM22xΦ335xΦ281 | 7.5V-20 | 2250 | 483 | 32219/33215 |
| TMAD16-E01 | 16 | 2400 | 150 | 480 | S 420*200 | 10xM22xΦ335xΦ281 | 8.00V-20 | 2810 | 528 | 32222/32314 |
| TMAD20-E01 | 20 | 2242 | 150 | 260 | S 420*220 | 10xM22xΦ285.75xΦ220 | 8.50V-20 | 2720 | 745 | 32222/32314 |
Euro Spoke Axles:
| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Center Distance Of Chamber (mm) | Brake Spec(mm) | Wheel Fixing (mm) | Total Length(mm) | Weight (Kg) | Bearing |
| L2 | L3 | D1 | L1 | ||||||
| TMAS12-E01 | 12 | 1840 | 150 | 392 | S 420*180 | 6xM22 Space 24 | 2150 | 420 | 33118/33213 |
| TMAS14-E01 | 14 | 1840 | 150 | 230 | S 420*200 | 6xM22 Space 24 | 2240 | 550 | 32219/33215 |
| TMAS16-E01 | 16 | 1840 | 150 | 320 | S 420*200 | 6xM22 Space 24 | 2270 | 535 | 32222/32314 |
| TMAS20-E01 | 18 | 1840 | 150 | 380 | S 420*220 | 6xM22 Space 24 | 2276 | 540 | 32222/32314 |
1>.Type:drum axle and spoke axle are available
2>. Capacity is 3T, 11T, 12T, 13T, 14T, 16T, 20T axles
3>. Certificate:ISO/TS16949

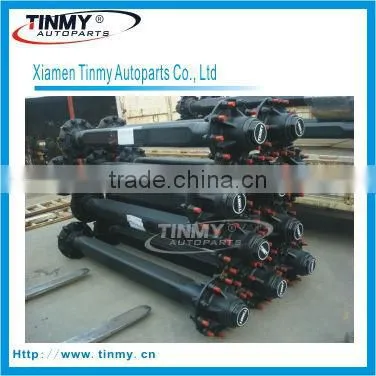

Tinmy Axle Factory can supply various axles for different trucks and trailers
1>. American type axle and German type axle with different capacity from 1ton-25ton
And the axle can be diffierent track length and total length.
2>.Other special axles are available according to clients's design or requirement
3>.The annual turnout is over 100.000 pieces based on on-time deliery.
4>. Special small axles for tractores are available.
5>. Certificate: ISO/TS16949
