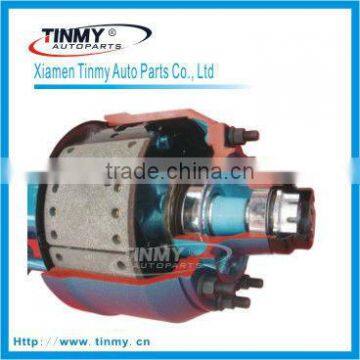

BPW Axles for Trailer

Specifications

BPW Axles:
1. Type:drum, spoke axle,
2. Capacity is 3T, 11T, 12T, 13T, 14T, 16T, 20T axles
3. Certificate:ISO/TS16949

BPW  Axles:

1. Type: drum axles and spoke axles are all available
2. Capacity is 3T, 11T, 12T, 13T, 14T, 16T, 20T axles
3. Certificate: ISO/TS16949



Tinmy Axle Factory can produce various axles for different trucks and trailers.



1. American type axle and German BPW  type axle with different capacity from 1ton-25ton

    And the axle can be diffierent track length and total length.

2. Other special axles are available according to clients's design or requirement

3. The annual turnout is over 100.000 pieces based on on-time deliery.

4. Special small axles for tractores are available.

5. Certificate: ISO/TS16949





Euro Drum Axles:

Item No.	Capacity (T)	Track  (mm)	Axle Beam (mm)	Center Distance Of Chamber (mm)	Brake Spec(mm)	Wheel Fixing              (mm)	Wheel Rim	Total Length (mm)	Weight (Kg)	Bearing
		L2		L3		D1xD2		L1		Inner/Outer
TMAD10-E01	10	1820	150	490	S 420*180	10xM22xΦ285.75×Φ220	7.5V-20	2115	360	33118/33213
TMAD12-E01	12	1845	150	300	S 420*180	10xM22xΦ287.75xΦ220	7.5V-20	2300	360	33118/33213
TMAD14-E01	14	1800	150	240	S 420*200	10xM22xΦ335xΦ281	7.5V-20	2250	483	32219/33215
TMAD16-E01	16	2400	150	480	S 420*200	10xM22xΦ335xΦ281	8.00V-20	2810	528	32222/32314
TMAD20-E01	20	2242	150	260	S 420*220	10xM22xΦ285.75xΦ220	8.50V-20	2720	745	32222/32314



Euro Spoke  Axles:

Item No.	Capacity (T)	Track  (mm)	Axle Beam (mm)	Center Distance Of Chamber (mm)	Brake Spec(mm)	Wheel Fixing               (mm)	Total Length(mm)	Weight (Kg)	Bearing
		L2		L3		D1	L1
TMAS12-E01	12	1840	150	392	S 420*180	6xM22 Space 24	2150	420	33118/33213
TMAS14-E01	14	1840	150	230	S 420*200	6xM22 Space 24	2240	550	32219/33215
TMAS16-E01	16	1840	150	320	S 420*200	6xM22 Space 24	2270	535	32222/32314
TMAS20-E01	18	1840	150	380	S 420*220	6xM22 Space 24	2276	540	32222/32314
