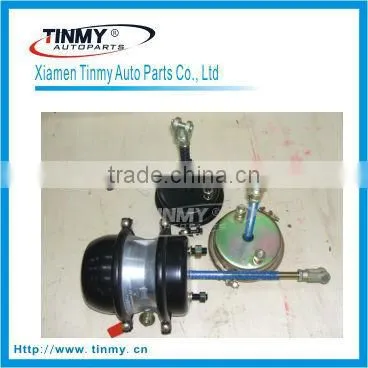

Air Brake Chamber / Spring Chamber T3030
US$ 6.5 - 19.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Type:
Brake Cylinders
Material:
Steel, Alloy
Certification:
TS16949, ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Brake Cylinders
Material
Steel, Alloy
Certification
TS16949, ISO
Size
T3030
Car Make
Truck Trailer
OE NO.
T3030
Place of Origin
Fujian, China
Brand Name
Tinmy
Model Number
T3030
Air Brake Chamber / Spring Chamber :
1.Single&Double Air Brake Chamber for option.
2,DD & DP Types.
3.ISO/TS16949 certificate
Xiamen Tinmy Auto Parts Co., Ltd, which belong to Tinmy group, is a leading
supplier in auto parts that organized by several factories and joint-ventured
manufacturers which successfully certified with TS16949 and ISO9001/2000 quality
control system.
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| TMC-T09 | 44.5 | 87 | 68 | 104±5 | 106±5 | 130±3 | 1/2"-20UNF | 1/4"-18NPTF | 7/16"-14UNC | 1.9 |
| TMC-T12 | 44.5 | 125 | 105 | 104±5 | 160±5 | 130±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 2.3 |
| TMC-T16 | 57 | 107 | 83 | 109±3 | 163±5 | 160±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 3 |
| TMC-T20 | 57 | 11 | 88 | 84±5 | 240±5 | 200±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4 |
| TMC-T24 | 64 | 116 | 93 | 123±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.1 |
| TMC-T30 | 64 | 125 | 105 | 123±5 | 285±5 | 255±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.8 |
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| TMC-T2024 | 64 | 110 | 88 | 220±5 | 75±5 | 50±4 | M16*1.5 | M16*1.5 | M16*1.5 | 7.78 |
| TMC-T2424 | 64 | 116 | 93 | 224±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 8.1 |
| TMC-T2430 | 64 | 163 | 184 | 234±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.2 |
| TMC-T3030 | 64 | 125 | 105 | 238±5 | 285±5 | 255±5 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.5 |
