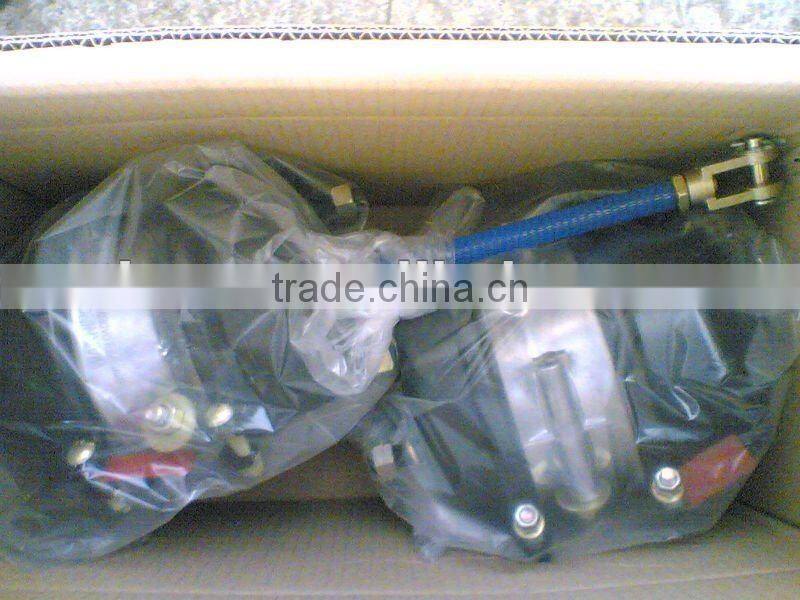

Help CenterBlack Air Brake Chamber T3030
US$ 6 - 21
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Type:
Brake Chamber
Truck Model:
Other, All trucks and trailers
Material:
Alloy , rubber, steel, iron
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Brake Chamber
Truck Model
Other, All trucks and trailers
Material
Alloy , rubber, steel, iron
Size
T3030, T3030
OEM No.
TMC-T30
Specifications
Trailer air brake chamber T30301>Size T30, T24T30, T3030 air Brake chamber
2>Single & Double Room
3> ISO/TS16949
Trailer air brake chamber T3030
1>Size T30, T24T30, T3030 air Brake chamber
2>.Single & Double Room Air Chamber
3> ISO/TS16949
4>Fast Delivery
Single Room:
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| TMC-T2024 | 64 | 110 | 88 | 220±5 | 75±5 | 50±4 | M16*1.5 | M16*1.5 | M16*1.5 | 7.78 |
| TMC-T2424 | 64 | 116 | 93 | 224±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 8.1 |
| TMC-T2430 | 64 | 163 | 184 | 234±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.2 |
| TMC-T3030 | 64 | 125 | 105 | 238±5 | 285±5 | 255±5 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.5 |
Double Room:
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| TMC-T09 | 44.5 | 87 | 68 | 104±5 | 106±5 | 130±3 | 1/2"-20UNF | 1/4"-18NPTF | 7/16"-14UNC | 1.9 |
| TMC-T12 | 44.5 | 125 | 105 | 104±5 | 160±5 | 130±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 2.3 |
| TMC-T16 | 57 | 107 | 83 | 109±3 | 163±5 | 160±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 3 |
| TMC-T20 | 57 | 11 | 88 | 84±5 | 240±5 | 200±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4 |
| TMC-T24 | 64 | 116 | 93 | 123±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.1 |
| TMC-T30 | 64 | 125 | 105 | 123±5 | 285±5 | 255±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.8 |
