PP/FRP Honeycomb Sandwich Box Van Panel

Shandong Zhengtai Xier Special Purpose Vehicle Co., Ltd.
PP/FRP Honeycomb Sandwich Box Van Panel thumbnail-1
PP/FRP Honeycomb Sandwich Box Van Panel thumbnail-2
PP/FRP Honeycomb Sandwich Box Van Panel thumbnail-3
PP/FRP Honeycomb Sandwich Box Van Panel thumbnail-4
PP/FRP Honeycomb Sandwich Box Van Panel thumbnail-5
PP/FRP Honeycomb Sandwich Box Van Panel photo-1
PP/FRP Honeycomb Sandwich Box Van Panel photo-2
PP/FRP Honeycomb Sandwich Box Van Panel photo-3
PP/FRP Honeycomb Sandwich Box Van Panel photo-4
PP/FRP Honeycomb Sandwich Box Van Panel photo-5
US$ 300 - 1,200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Other, Truck Body
Truck Model:
Other, All kinds of Trucks
Size:
as request
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Truck Body
Truck Model Other, All kinds of Trucks
Size as request
Material as request, PU,Steel,Aluminium
OEM No. S
Place of Origin Shandong, China
Brand Name Xier
Model Number ZZT

1.The advanatages of PP Honeycomb sandwich box van  Panel

Light-weight &high-intensity 2.fire resistant & insulation 3.anti-impact&scratch

Features:
1.light weight and high strength.
The whole panel is light weight and high strength.It can lighten the  whole product's weight without reducing the strength.
 2. heat & sound insulation
The panel has excellent heat and sound insulation performance.So it can be used in where temperature is required.
3.mold &mildew resistance
The surface of the board----Keying Glasbord,makes it resistant to mold and mildew ,and easy to clean.It is also resistant to scratches,abrasions,staining.
4.Environmental protection
There is non-toxic,non-radiomaterial,and tasteless,no harmful fumes.
5.Easy to install
It can be cut freely into all kinds of irregular plates.

Correlation Parameter:
Table 1 Physical Property
Test Item
Test Method
Unit
Result
Barcol hardness
GB/T3854-2005
Hba
53
Tensile strength
GB/T4944-2005
MPa
42.1
Elongation at break
GB/T1040.1-2006 and
%
1.6
Tensile modulus
GB/T1040.2-2006
MPa
4590
Flexural strength
GB/T9341-2008
MPa
129.6
Flexural modulus
GB/T9341-2008
MPa
4964
Taber abrasion
GB/T5478-2008
mg
20.3
Specific gravity
GB/T1463-2005

1.600
Impact resistance
GB/T14153-93
J
0.42
Absolute water absorption
GB/T1462-2005
g
0.05

Table 2 Surface Sterilization Performances
Test Item
Test Method
Unit
Result
Aureus Removal rate
GB15979-2002
%
70
Coli Removal rate
GB15979-2002
%
84
Salmonella Removal rate
GB15979-2002
%
74
Shigella Removal rate
GB15979-2002
%
75

Table 3 Toxic substances content
Test Item
Test Method
Unit
Technical Requirements
Result
Volatile matter content
GB18586-2001
g/m2
≤75
4.2
Heavy Metal Soluble Lead
GB18586-2001
mg/m2
≤20
1.7
Heavy Metal Soluble Cadmium
GB18586-2001
mg/m2
≤20
0.25


---------------------------------------------------------------------------------------------------------------------------

2.Products of our company: CKD van truck body/

Truck body from FRP honeycomb panel/Keying Glasbord(frp panel)+PP honeycomb+Glasbord(frp panel)

We can supply: refrigerated truck body, insulated truck body, dry cargo truck body, plateform truck body, explosion-proof truck body, dump truck body,tank truck body, wing opening truck body, catering truck body, any other special purpose truck and truck body.....etc

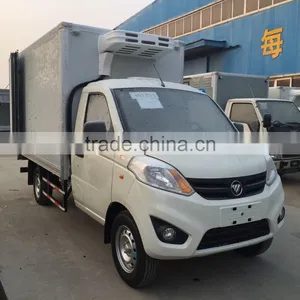

The refrigerated truck body proecessed with FRP with insulation foam. Our standard thickiness is 80mm. But the thickness can be change according to customer's requirements.

Stainless steel  door frame and door lock system.

---------------------------------------------------------------------------------------------------------------------------

3.The main character of our truck body:

Light in weight, better insulation, high in strength and long useful life.

Non-corrosion ,non-pollution,anti-brine,acid and soda-resisting.

Easy to be asembled and repaired at site.

 ---------------------------------------------------------------------------------------------------------------------------

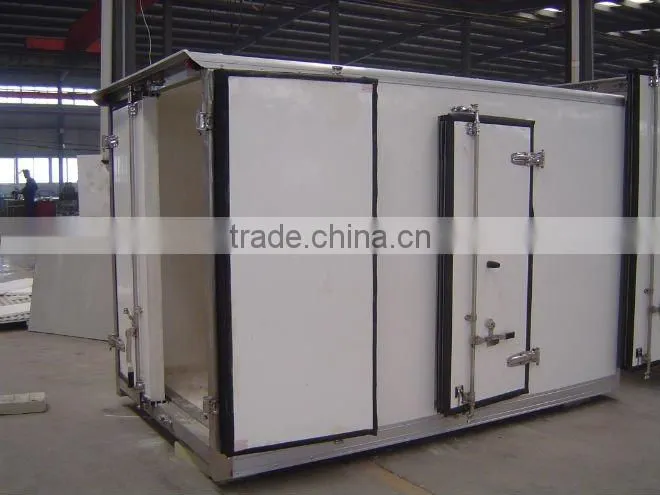

 PP/FRP honeycomb sandwich box van panel
