Specifications

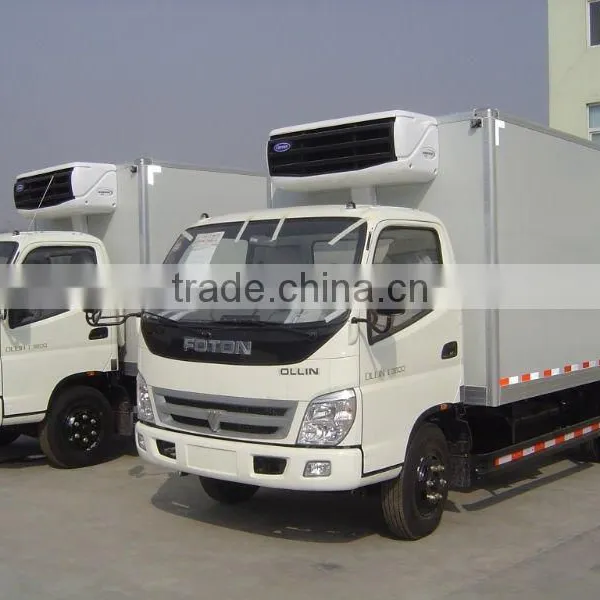

The freezer truck/refrigerated truck is high quality with competitive price and nice apperance.
The refrigerated Truck Specifications
| MODEL | ZZT5051XLC | ||
| CHASSIS | ID NO. | JX1051TGA23/1225121 | |
| category | 2 | ||
| manufacturer | Jiangling Motors Co., Ltd | ||
| axle | 2 | ||
| wheel base(mm) | 3360 | ||
| wheel track(front/rear mm) | 1385/1425 | ||
| tire size | 7.00R16LT | ||
| tire | 6 | ||
| ENGINE | model | JX493ZLQ3 | |
| manufacturer | Jiangling Motors Co., Ltd | ||
| delivery capacity(ml) | 2771 | ||
| fuel | diesel | ||
| rated power(Kw) | 85 | ||
| emission standard | GB17691-2005 EURO3,GB3847-2005 | ||
| FRAME | FRONT | type | steel plate spring |
| quantity | 7 | ||
| BACK | type | steel plate spring | |
| quantity | 4+5 | ||
| CAR LOAD | dimension parameters | overall dimensions(mm) | 5995*1880/1930*2790 |
| L*W*H | |||
| interior cargo body dimensions(mm) | 4180*1710*1730 | ||
| L*W*H | |||
| cubage(m3) | 12.36 | ||
| front overhang/rear overhang(mm) | 1065/1570 | ||
| quality parameters | approach angle/departure angle(°) | 27/18.5 | |
| curb weight(Kg) | 3000 | ||
| rated payload(Kg) | 1705 | ||
| gross vehicle weight(Kg) | 4835 | ||
| max. speed(km/h) | 100 | ||
| Persons in cab (persons) | 2 | ||
Our Isuzu Trucks
We are the leading manufacture of various truck bodies and Catering Traiers Our main products are various models of Dry Cargo Truck, Containers, Insulated truck, Store stake Truck, Refrigerated trucking, medical garbage truck, hearse, Dump(Tipper) Truck, Tank Truck, Power Truck, Catering Truck, Mobile Truck, Truck Mounted Crane, IVECO Dining Car, Pull-Type Dinners and explosion-proof trucks, Catering Trailer, and so on. The brand we have FOTON, ISUZU, JMC, JAC,FAW, JAC, DONGFENG and so on with lower price and high quality.
Sale points of refrigerator truck
1).high quality
2).low price
3).best configuration
4).low fuel consumption
5).excellent performance
6).high speed
7).heavy load capacity
8).advanced skills
Our Other Refrigerated Trucks,Freezer Truck,Reefer Box Van Truck
