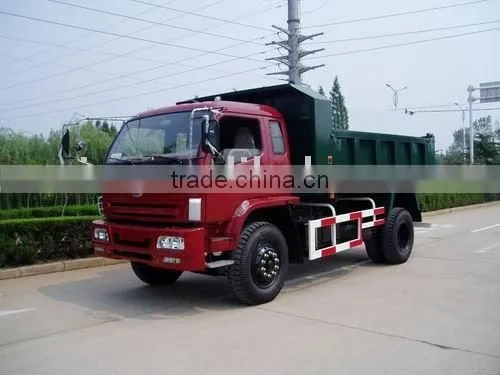

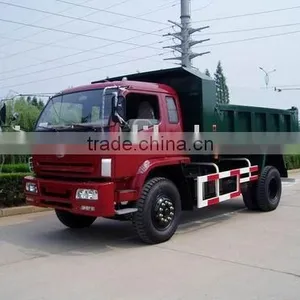

Help Center25 Ton Dump Truck (tipper, Dumper, Heavy Truck)
Related Products
Specifications
Dump Truck (tipper, dumper, heavy truck)1) FOTON chassis dump truck
2) Load capacity:25 tons
3)Double axle dumper truck
1.The specifications of Dump Truck (tipper, dumper, heavy truck)
------------------------------------------------------------------------------------------------------------------------------
model
3P22P4110L(F)
driver cab
2200 width,cab with bed
overall dimensions(L*W*H)(mm)
7215*2460*2960
interior cargo body dimensions(L*W*H)(mm)
4700*2300*1200(800+400)
engine model
YC4E160-20(4110ZL)
cylinder diameter(mm)
110
engine type
four cylinder,water-cooling, in-line,four-stroke, turbocharging, intercooler
piston displacement(L)
4.257
rated power(kw)
118
transmission model
17D100
rear axle
457
brake system type
pnemmatic brake
steering gear
power recirculating ball steering gear
tyre size
10.00-20
wheel base(mm)
4200
wheel track(front/rear)(mm)
1940/1851
driving type
4*2
number of lift pole
1
max.payload(kg)
2.Our company main products:
We are a leading special purpose vehicle manufacturer from China, we manufacturer: Refrigerated truck (Refrigerarted van), Insulated truck( Isolated truck, Isolated van, Insulated van), Dry cargo truck( cargo van, box truck), Light truck, Explosion-proof truck, Tank truck, Dump truck, Store-stake truck, Truck crane, Medical waste transport truck, Wing opening truck, Catering truck, Mobile stage truck, Mobile shop, Box trailer, Catering trailer, Truck body( van body), Refrigerated truck body, Insulated truck body, Trailers, Semi- trailers, Any other special purpose vehicle and vehicle bodies, etc
