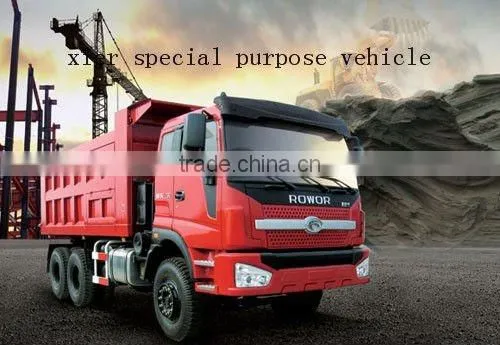

20 ton Tipper Dump Trucks

Specifications

Tipper Dump Truck
1) 4*2 chassis truck
2) Load capacity:20 tons tipper
3)Double axle truck
4) low fuel dump tipper

Short Introduction:

25ton Tipper Dump Truck
1) 6*4 chassis truck
2) Load capacity:25 tons tipper
3)Double axle truck
4) low fuel dump tipper

5) Payload: 20-30t
6)Fuller/ ZF transmission
7)254-276 kw
8) Dimension: 93.5m3

--

---------------------------------------------------------------------------------------



1.The specifications of 20 ton tipper dump truck 2.Our company main products:

model	3P25P6105L(A)
driver cab	2025 width,cab with bed
overall dimensions(L*W*H)(mm)	6912*2460*2874
interior cargo body dimensions(L*W*H)(mm)	4500*2300*1000(800+200)
engine model	YC6J160-21(6105ZL)
cylinder diameter(mm)	105
engine type	six cylinder,water-cooling, in-line,four-stroke, turbocharging, intercooler
piston displacement(L)	6.494
rated power(kw)	118
transmission model	17C70
rear axle	1153
brake system type	pnemmatic brake
steering gear	power recirculating ball steering gear
tyre size	10.00-20
wheel base(mm)	3900
wheel track(front/rear)(mm)	1940/1864
driving type	4*2
number of lift pole	1
max.payload(kg)	20000

------------------------------------------------------------------------------



We are a leading special purpose vehicle manufacturer from China, we manufacturer: Refrigerated truck (Refrigerarted van),  Insulated truck( Isolated truck, Isolated van, Insulated van), Dry cargo truck( cargo van, box truck), Light truck, Explosion-proof truck, Tank truck, Dump truck, Store-stake truck, Truck crane, Medical waste transport truck, Wing opening truck, Catering truck, Mobile stage truck, Mobile shop, Box trailer, Catering trailer, Truck body( van body), Refrigerated truck body, Insulated truck body, Trailers, Semi- trailers, Any other special purpose vehicle and vehicle bodies, etc.

-----------------------------------------------------------------------------------------------------------------------------
