Help Center3.2T Crane Truck
Related Products
Specifications
FOTON chassis, XUGONG crane,engine model: CY4102-C3C,
power : 88KW
tire: 8.25-16/7.50-16
crane model: 2T/3.2T/4T
truck body dimisson: 4360*2100*550mm
rated payload: 3090 kg.

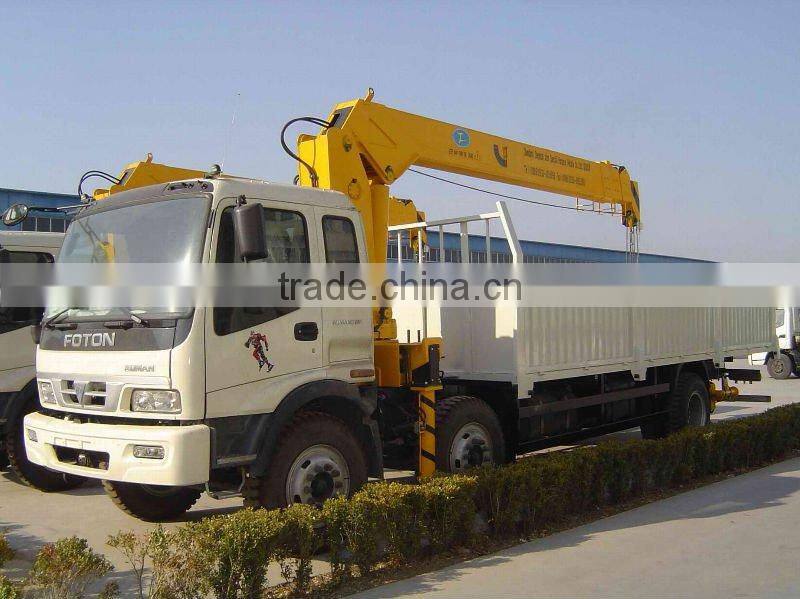

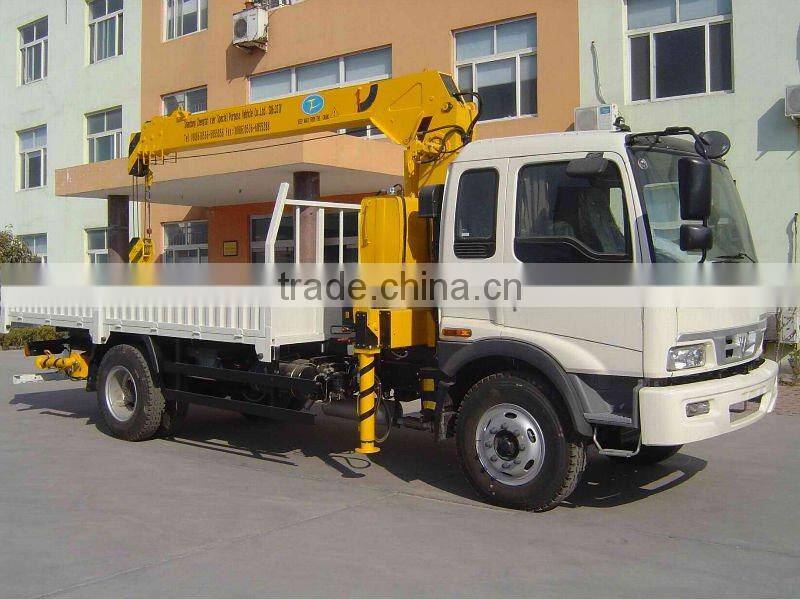

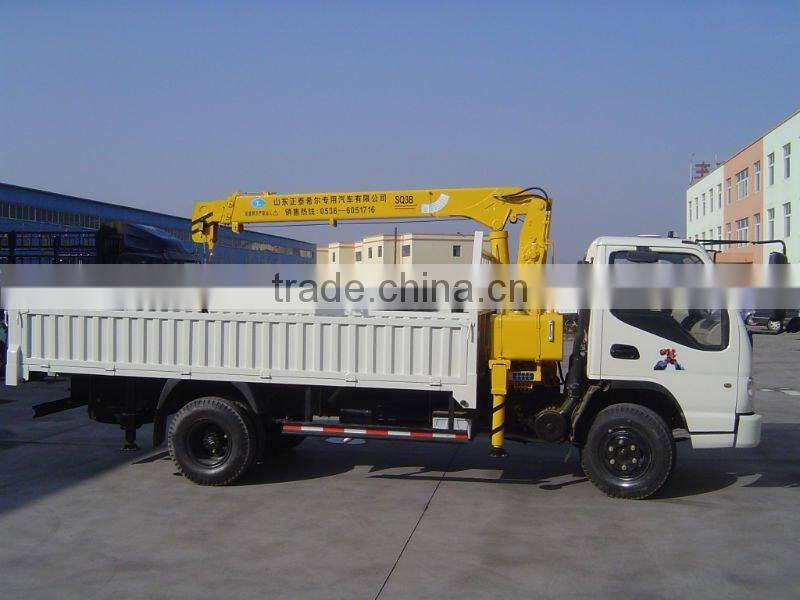

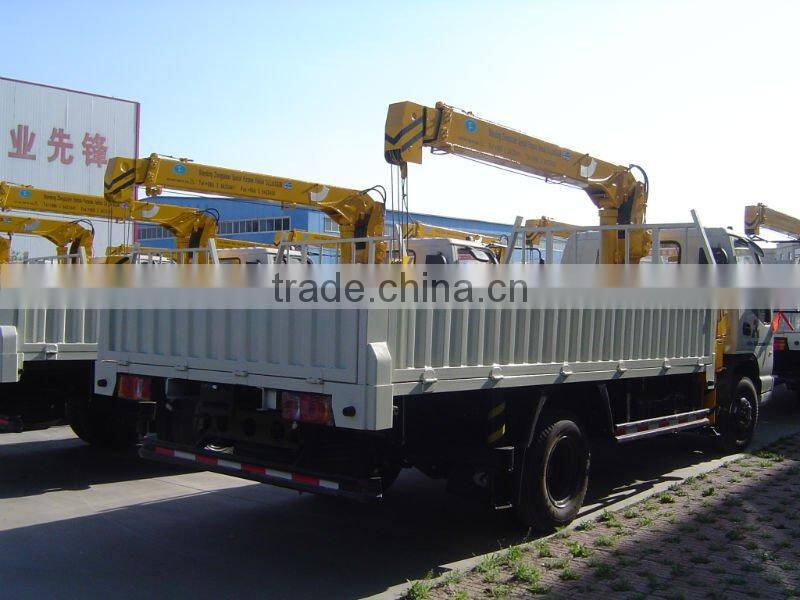

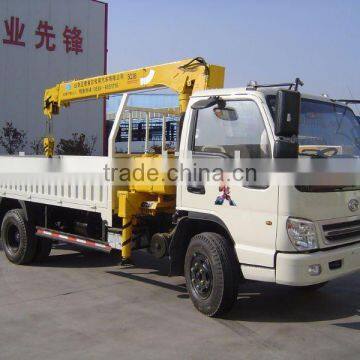

fOLLOWING IS 3.2TON CRANE TRUCK
Model |
ZZT5080JSQ |
Chassis NO. |
BJ1083VDJFA |
Overall dimensions(mm) |
6995×2310×3200 |
Interior cargo body dimensions(mm) |
4460×2100×600 |
Crane model |
SQ3.2-3 |
gross vehicle weight(Kg) |
8495 |
Curb weight(Kg) |
5210 |
Payload capacity(kg) |
3090 |
Tire |
7.50-16 |
Engine |
CY4102-C3C |
Rated power(Kw) |
88 |
emission standard |
Euro 2 |
Max. lifting capacity(Kg) |
3500 |
Max. lifting moment(T.M) |
60 |
Rated pressure of hydraulic system(Mpa) |
16 |
Rotation angle |
360° |
Crane weight(Kg) |
2000 |
Max lifting height(m) |
9 |
Crane length range(m) |
3.1-6.7 |
Standard configure |
power steering,warm air,air-break break system,to strength truck frame,opening roof,MP3,4 outrigger. |
3.2 TON
6.3TON
10TON
