Home > Transportation > Trailer > Other Trailers > Side or Rear Open Door Trailer Van Box to Keep the Goods From the Rain

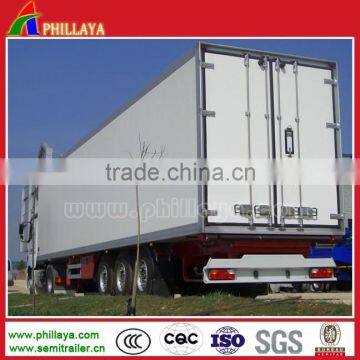

Side or Rear Open Door Trailer Van Box to Keep the Goods From the Rain

Name: Side or Rear Open Door Trailer Van Box to Keep the Goods From the Rain
Brand: Phillaya
SKU: 141207436
Availability: InStock

Side or Rear Open Door Trailer Van Box to Keep the Goods From the Rain thumbnail-1

Side or Rear Open Door Trailer Van Box to Keep the Goods From the Rain thumbnail-2

Side or Rear Open Door Trailer Van Box to Keep the Goods From the Rain thumbnail-3

Side or Rear Open Door Trailer Van Box to Keep the Goods From the Rain thumbnail-4

Side or Rear Open Door Trailer Van Box to Keep the Goods From the Rain photo-1

Side or Rear Open Door Trailer Van Box to Keep the Goods From the Rain photo-2

Side or Rear Open Door Trailer Van Box to Keep the Goods From the Rain photo-3

Side or Rear Open Door Trailer Van Box to Keep the Goods From the Rain photo-4

US$ 13,000 - 23,000 MOQ: 1 Set

Key Specifications

Get Latest Price

OEM No.:

37022014031701

Max Payload:

40T

Size:

13000x2500x3800 mm

Contact Supplier Request Quote Chat Now

Qingdao Phillaya International Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJING/SHANGHAI/QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

OEM No. 37022014031701

Max Payload 40T

Size 13000x2500x3800 mm

Place of Origin Shandong, China

Brand Name Phillaya

Model Number PHY081130

Company Information

Product Description

Loading Capacity	40T
Outside Dimensions	1300025503300mm
Interior Dimensions	1285023501800mm
Tyre No	12 +1 Spare Tire
Wheelbase	1310mm
Front/Rear Overhang	1900 mm
Axle NO.	3
Axle Weight Load	28 ton capacity Fuwa with static capacity of 80T
Leaf-spring pcs	10 pcs
Twist Locks(optional)	Twelve nos in total.Four nos are fasten mode,four nos are up/down modethe and central locks can be laid down.
Traction Pin	2'or 3.5'
Tire Specifications	12R22.5
Spare Tire Carrier	1 set
Main Beam	Main Beams:Automatic submerged arc welded,Q345B/ST52-3
	Through Cross Beams:Q235
	Main Beam Height:500mm
	Upper Flange:14mm
	Mid web :8mm
	Lower Flange:16mm
Side Beam	160mm
ABS	Optional
Suspension	Mechanical heavy duty leaf-spring suspension
Brake System	Automatic air brakes
Brake Chamber	Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber
Electrical System	24V, 7core socket, lights according to European standards
Tool Box	1 box of standard tools
Floor	Steel sheet 3mm thickness or diamond plate
Color and Logo	Depends on the customer's requirement
Usage	Van cat semi trailers are mainly applicable to the transportation of the household appliance, textile goods, coal, dinas, and other building materials.

Our Services

According to your demand can design special model for you

The details of products

1 The top of the box can be close-ended, pull/push open-ended, open-type, or open-type with cloth tent poles.The semi trailer's box shell uses the corrugated steel plate (anti-wave) or flat type steel plate with high intensities.

2 The interior part adopts a skeletonless structure, maximizing the carrying capacity.X-shape tension brace fixed the box shell a very strong unit.

3 Suspension is constitute by tandem steel plate spring and bearing legs.

4 Van cat semi trailer's side guard system adopts the close-ended design to reduce the crosswise risks effectively , and the energe consumption when running with high speed. And reasonable trailer accessories were placed at the rear guard box for convenience.

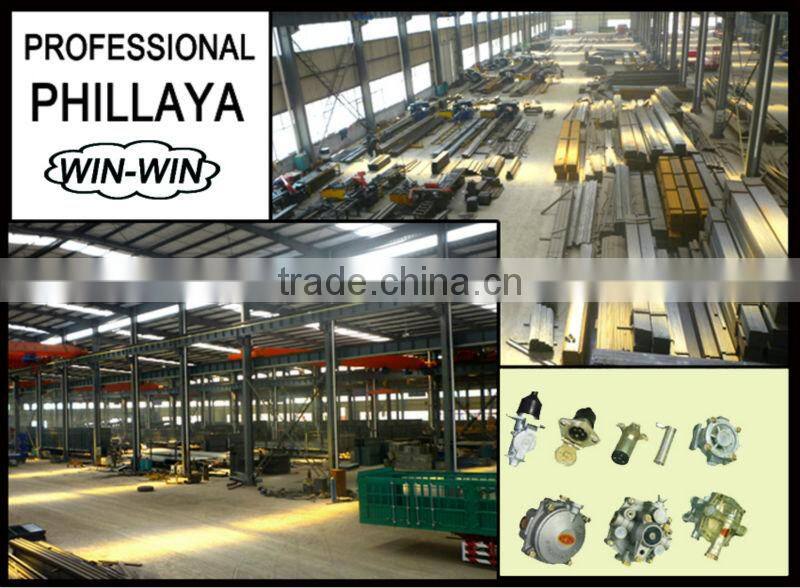

Our factory and shipping terms

1) Advanced technology,strictly production craft,highly mechnized operation

line to guide and assist you in making the right decision.

2) According to different trailers customers order and different countries to expor,

best packaging scheme and logistic plan will be designed for you.

Welcome to visit our manufactury, we will pick you up from airport.

After-sales-service

1) The quality warranty period of our products is within 12 months after delivery of products.

2) For normal damaged parts claims ,service team will reply the distributor within 3 working days.

3) For serious vehicle problems,it will take us 5 working days to reply the distributor, since our service team has to report it to our factory for final judge.

My contact details are below, and I would be glad

to hear from you.
