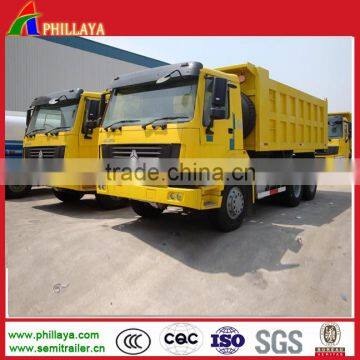

Howo Sinotruk 371 Price 6*4 8*4 Dump Truck Tipper Body Parts Dump Truck

dump Truck Model

ZZ3257N3647A

dump Truck Brand

SINOTRUK –HOWO

dump Dimension(Lx W x H)(unloaded)(mm)

8214x2496x3386

dump Cargo body size (L*W*H, mm)

5400x2300x1400

dump Cargo body thickness(mm)

bottom:8mm, side:6mm,

dump Lift type of Carriage

Ventral lifting

Approaching angle/Departure angle(°)

19/26

Overhang(front/rear) (mm)

1500/1739

Wheel base (mm)

3625+1350

dump Max speed(km/h)

75

Curb weight(kg)

12290

Loading Weight(kg)

50000

Fuel tanker capacity

300L with locking fuel cap

Fuel consumption(L/100km)

32

Clutch

Single-plate dry clutch Φ420mm

Engine Model

(Steyr technology,

made in China)

Model

WD615.47,4- stroke direct injection diesel engine,

6 cylinders in line with water cooling , turbo-charging and inter cooling

Horse Power,

max(kw/rpm)

371HP,247/2200

Emission Standard

EURO 2

Transmission

Model

HW 19710,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098 hydraulic steering with power assistance

Front axle

HF9 , Steering with double

T-cross section beam

Loading capacity:9000KG

Rear axle

HC16, Casting axle housing,

central double reduction with

differential locks between

axles and wheels

dump truck Color

Optional

dump truck Tire

12.00R20 10 +1 spare pieces

Electrical system

Operating voltage

24V,negative grounded

Starter

24V,7.35KW

Alternator

28V,1500W

Batteries

2*12V.165Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights,

indicators and reverse light.

Cab

HW76 cab, (one sleeper,with air-condition),

all-steel forward control,70ºhydraulically

tiltable to the front, 2- arm windscreen wiper

system with 3 speeds, laminated windscreen

with casted-in radio aerial, hydraulically

damped adjustable driver’s seat and rigid

adjustable codriver’s seat, with heating

and ventilating system, outer sun visor,

adjustable roof flap, with stereo radio/cassette

recorder, safety belts and adjustable

steering wheel, air horn, with 4-point

support fully floating suspension and

shock absorbers.
