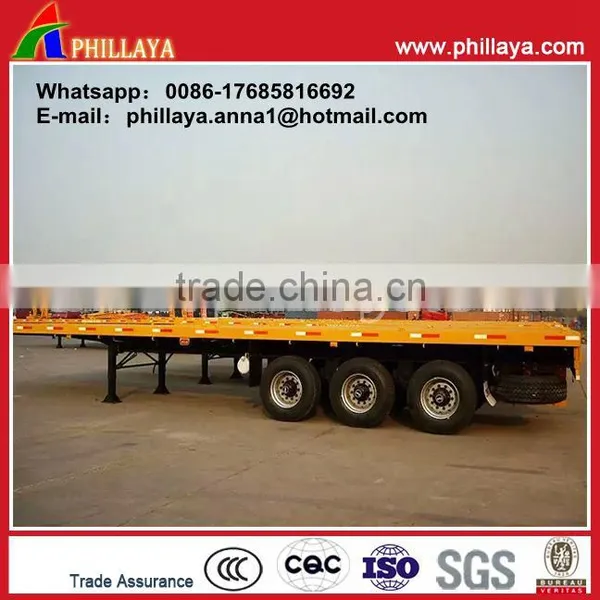

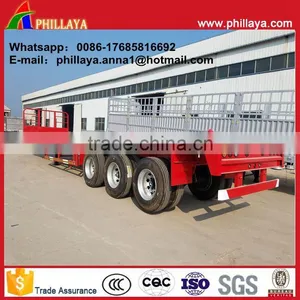

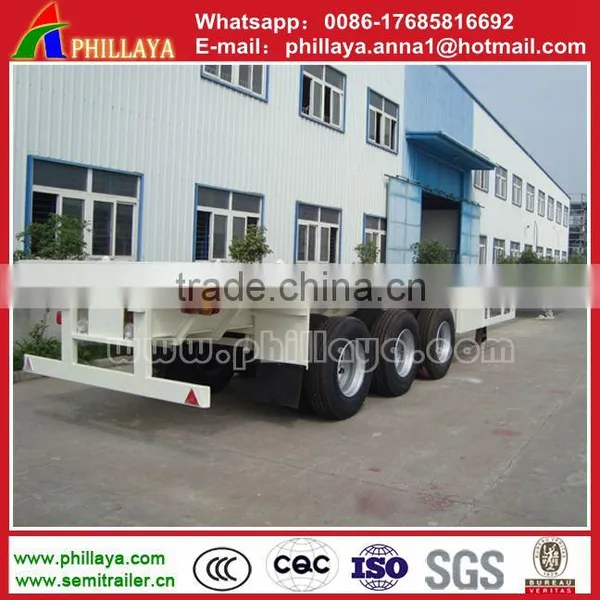

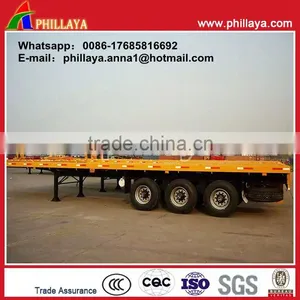

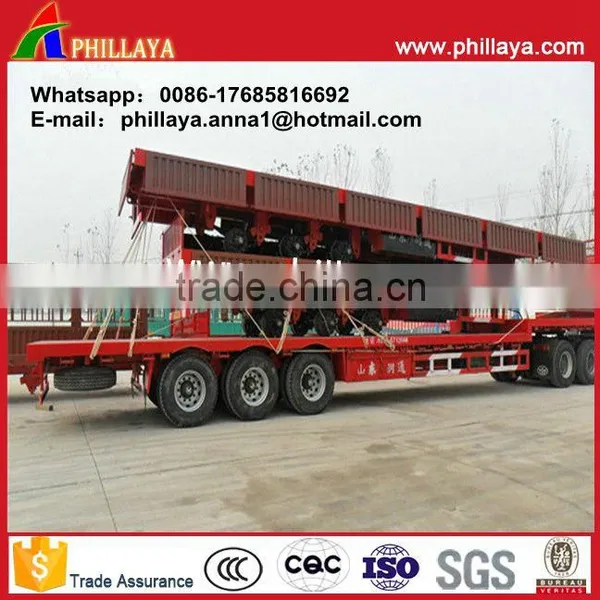

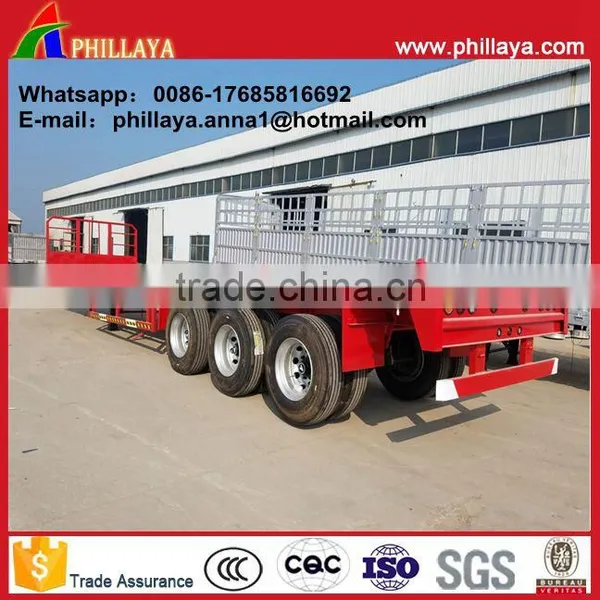

Heavy duty container trailer drop deck semi trailer used in port/quay/ wharf
- 200 Set / Sets per Month
- Qingdao/Shanghai/Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- 4 Axle Skeleton Container Semi Trailer For Sale,3 Axle 20FT 40FT Skeleton Container Trailer Frame With Airbag Suspension
- Sedan SUV transport semi-trailer export semi-trailer Russian European style semi-trailer
- Low flatbed semi-trailer Hydraulic ladder semi-trailer Automatic low flatbed export trade
- Exporting trailers to Russia European style car transport Semi trailer price
- Multi axles modular low bed semi trailer
- AUTONE wingspan van semitrailer
Product Details
Type: | Semi-Trailer | Material: | Steel | Certification: | Other, CCC ISO |
Size: | Buyer's Request, As the Buyer's request | OEM No.: | 370702cst | Max Payload: | 40ton |
Place of Origin: | Shandong, China | Brand Name: | PHILLAYA | Model Number: | PLYA8267 |
Product Description
flatbed Trailer:
1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
2. Cut the rear part which can load two sets in one 40ft container ;
3. Keep the trailer original but load two sets in one 45ft container.
Delivery Detail:
15 Working Days After Deposit
Product Description
1.We have well experienced in reseaching and developing different trailers:container trailer, low bed trailer, side wall semi trailer, stake semi trailer, tank trailer and heavy duty trailer etc.
2.High tensile strength steel Q345B for I-beam
3.Axle:German or American style from 12 tons to 20 tons
4.Suspension:Mechanical suspension, air suspension or bogie suspension.
5.Tyre:10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
6.King pin:Optional for 2" or 3.5" Kingpin
7.Extendable distance:According to your requirements.
Product specifications for your reference,
the specific details depend on your request!
Heavy duty container trailer drop deck semi trailer used in port/quay/ wharf
Product Number | PLYA8267 |
Outside Dimensions | 12500x2500x1580(As the buyer's request) |
Color/Logo | Customized |
Tare Weight | 8.5ton |
Rated Load | 40-60ton |
Axle Brand | FUWA/BPW, other brand optional |
No. of the Axle | 3 |
Axle load | 13ton |
Tyre Specations | 12R22.5,11.00R20, other optional |
Spare tire carrier | 1 set |
No. of the Tyre | 12+1(Spare tyre) |
King Pin | 90#/50# |
Landing Led | 28ton |
Suspension | Mechanic/Air Bag/Independent Type Optional |
Brake System | Dual Lines Braking System With Automatic Air Chambers,Four double and two single chamber |
Electric Sustem | 24V, 7core socket, lights according to European standards. |
Material of the Main Beam | Q345B manganese plates, automatic submerged-Arc welded Height 500mm. through cross beams Q235, Side beam:160mm Upper flange: 16mm, Middle Flange: 10mm; Lower flange: 18mm |
Similar Products Of Our Exporting Country
3 Axle 55 tons 20ft 40ft 48ft 53ft container transport Semi-Trailer
Product Details
Production Process
Axle type and Design drawings
Trailer Accessories
Q: Are you a manufacturer or trading company?
A: We are manufacturer as well as trading company.
Q: What about your products quality?
A: Product quality is our aim.
Q: What is the MOQ of your product?
A: 1 pcs
Q: How do you transport the semi trailer?
A: We transport the semi trailers by bulk or container. Our fatory possesses long-term
comperation with ship agency which can provide you lowest shiping fee.
Q: How to guarantee customers get the goods smoothy after they pay?
A: Don't worry, we joined the trade assurance. you can place the order by trade assurance, and the deposit will given to Alibaba. if we don't delivery products on time, the deposit will return to you.
Q: What the delivery time?
A: The delivery time is within 15 working days after receiving your adance payment.
Q:If the semi-trailer in the use of the process of problems, how do I contact you?
A: We will serve you 24 hours a day.
Phillaya
Qingdao Phillaya International Trading Co., Ltd. is a comprehensive corporation majored in the Technology R & D, Import & Export of kingds of semi trailers, 15 years manufacture experience produce, high quality and competitive price. Experienced QC team, strictly quality control. Well deign team,Manufacturing according to your equirement. Professional and timely After-sale support.
Conpany certificate:
we can produce many types of semi trailer and full trailer even trailer parts.
if no trailer is your like, you can tell me your actual requirements, customized is available.
