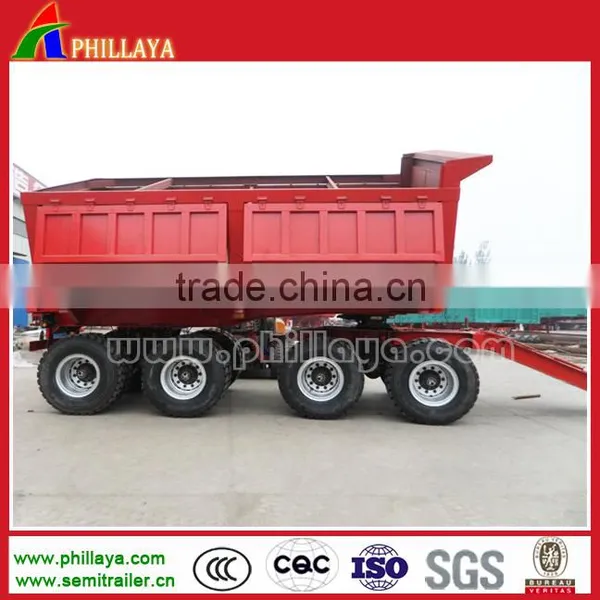

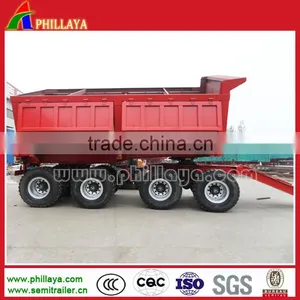

Help CenterHyva Hydraulic Cylinder 20 Ton Transport Lorry Dump Truck Trailer
Related Products
-
2 or 3 Axles 5 Ton Towing Drawbar Full Type Dump Truck Trailer Hyva CylinderUS$ 9,500 - 10,500MOQ: 1 Unit -
Strong Posts Flatbed Loading Deck 2 or 3 Axles Pallet Full Towing Bar TrailerUS$ 9,000 - 9,500MOQ: 1 Unit
-
2 Axles 4 Wheel Farm Trailers /(flatbed Drawbar Full Trailer and Dump Tipper Full Trailer)US$ 5,000 - 9,000MOQ: 1 Set
-
Full Type Flatbed Skeleton 20FT Shipping Container Dolly Transport Trailer With Turntable DrawbarUS$ 5,000 - 9,000MOQ: 1 Set
-
2 or 3 Axles Heavy Duty Drawbar Tow Link Truck TrailerUS$ 9,000 - 9,500MOQ: 1 Unit
Qingdao Phillaya International Trading Co.,Ltd

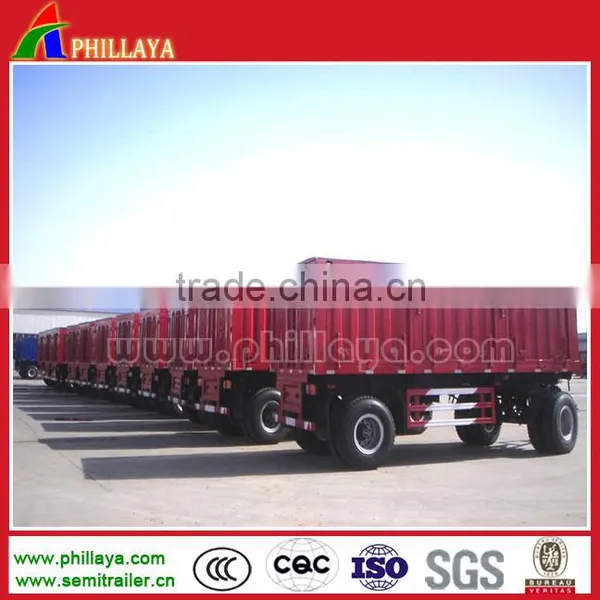

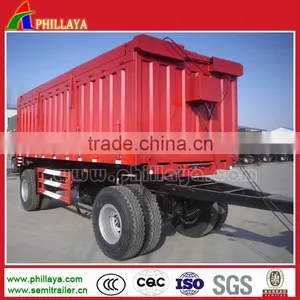

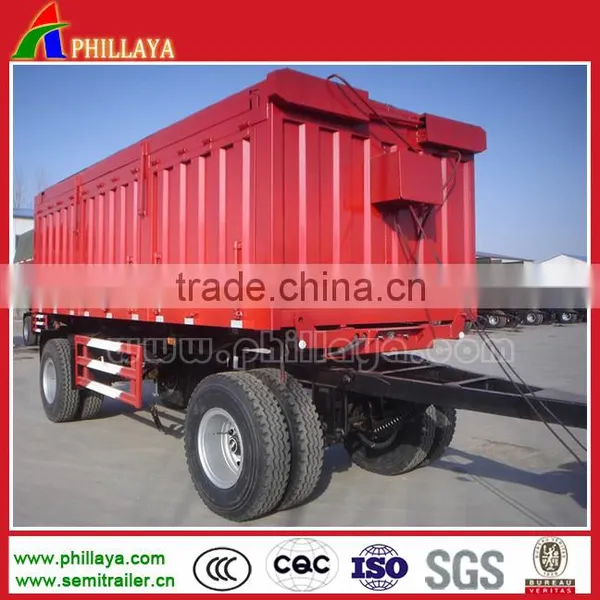

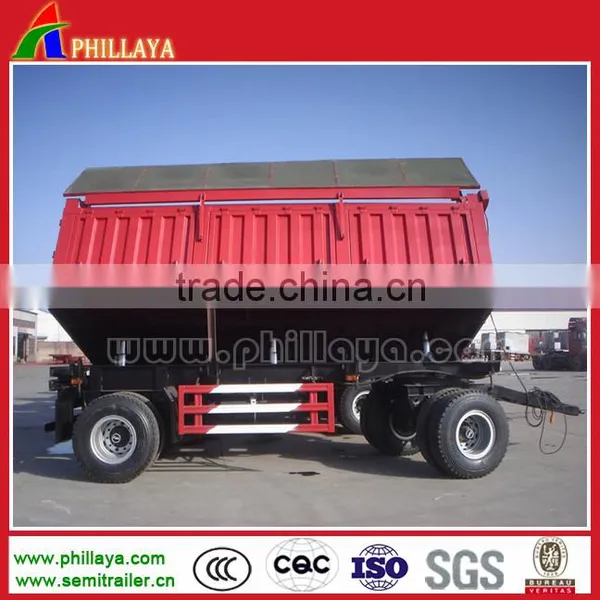

Drawbar trailer
A. Advantage:
1. Towing bar installed in the front of trailer;
2. Hydraulic cylinder could be installed on the trailer to make the trailer dump kind;
3. Usually two axles type, three or four axles optional;
4. BPW/FUWA axles optional;
5. Trailer box or stake box could be available
B. Specifications
1. Dimension: 8500*2500*3000mm
2. Main Frame: Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes 500mm Height, Top Flange 16mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm
3. Drawbar: Length is 1.4m
4. Turntable: Diameter is 1100mm.
5. Axle: Two Units FUWA 13T 10 Hole axle
6. Suspension: A couple of FUWA(Brand) mechanical 3-axle suspension
7. Leaf Spring: Four sets of reliable local brand, 8-piece leaf spring, 16x90mm
8. Landing Gear: Two-speed, manually operating, heavy duty landing leg
9. Wheel Rim: 9 units of 8.25*22.5 rim
10. Tyre: 9 units of 11R22.5 Tubeless tyre
11. Twist Lock: 12 sets ISO twist lock
12. Spare Wheel Carrier: One set of spare wheel carrier including a riser.
13. Pneumatic Braking System: One unit of WABCO RE 6 relay valve; Four units of T30/30 spring brake chamber; Two units of T30 brake chamber, Two unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector.
14. Electrical System: International standard 24v circuit 7-pin ISO socket; Tail lamp with turn signal, brake light & reflector, side lamp etc. One set 6-core standard Cable.
15. Painting Sand blasting processing clean rust: Coat of anticorrosive primer; Coats of finish urethane paint; Color as customer choice.
16. Accessory: One tooling box with whole set of standard trailer tool
C. Functions
This series full trailers are mainly used in the agricultural products, and bulk cargo or electrical appliance transportation.
The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 18000mm, we can manufacture it according to your needs.
The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
The side wall height and side or back door numbers and opening ways have several options for your better usage.
1. Can I have sample of this type trailer to test the quality?
Of course yes, my friend, and our MOQ is 1 unit.
2. What's the delivery time and can you lower the price?
It depends on the quantity. Usually it is within 25 days after the receipt of deposit. And my friend, the more units, the lower price.
3. Can I customize the trailer?
Yes, the design will be made according to your suggestions.
4. What's the payment terms?
30% by T/T as deposit and balance by T/T before delivery. Or by L/C at sight.
5. How do you ensure its quality?
There will be a warranty given to you, to provide you a good after-sale-support.
