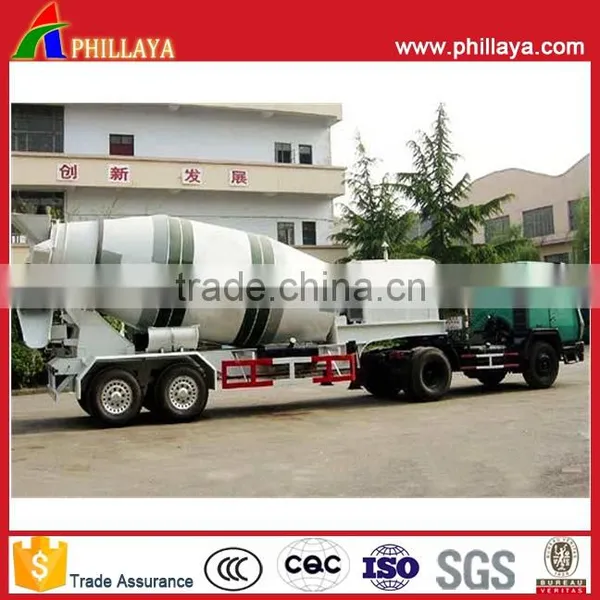

Help Center6-12CBM Concrete Mixer Trailer/Volume Optional Concrete Transport Trailer Truck
Related Products
-
Concrete Mixer Truck Trailer 8m3, 10m3, 12m3, 14 m3US$ 20,000 - 30,000MOQ: 1 Set -
Made in China Concrete Mixer Truck Trailer With Water TankUS$ 20,000 - 30,000MOQ: 1 Set
-
Truck Trailer Use Two Axles Concrete Mixer Trailer for SaleUS$ 20,000 - 30,000MOQ: 1 Set
-
2016 Hot Selling Concrete Mixer Truck Trailers for SaleUS$ 20,000 - 30,000MOQ: 1 Set
-
Hot Sale Planetary Gearbox for Concrete Mixer Semi TrailerUS$ 20,000 - 30,000MOQ: 1 Set
Tare Weight |
10800kg |
Overall Length |
9995mm |
||
Overall Width |
2495mm |
Overall Width |
3780mm |
||
Tank | |||||
Capacity |
8CBM |
||||
Mixing Tanker Sloping Angle |
14, 12,10 degree |
||||
Mixing Tanker Revolving Speed |
12-20 (r/min) |
||||
Key Accessories | |||||
Engine |
Diesel engine or electrical motor |
||||
Hydraulic Pump |
American Eaton or Italian TOP hydraulic pump |
||||
Hydraulic Motor |
American Eaton or Italian TOP hydraulic motor |
||||
Gear Box |
American Eaton or Italian TOP gear box |
||||
Chassis |
Skeletal Chassis with special designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm; Bottom Flange 16mm,width 140mm. |
||||
Axles |
2 axles, Fuwa |
||||
Suspension |
Mechanical suspension/ |
||||
Leaf Spring |
8-piece leaf spring |
||||
King Pin |
2 Bolt-in King Pin |
||||
Landing Gear |
Two-speed, manual operating, heavy duty landing gear |
||||
Tyre |
11.00-20, 12.00-20, 11.00R20, 12.00R20, 11R22.5, 12R22.5-Optional |
||||
Spare Tire |
One set of spare tire including a carrier |
||||
Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
||||
