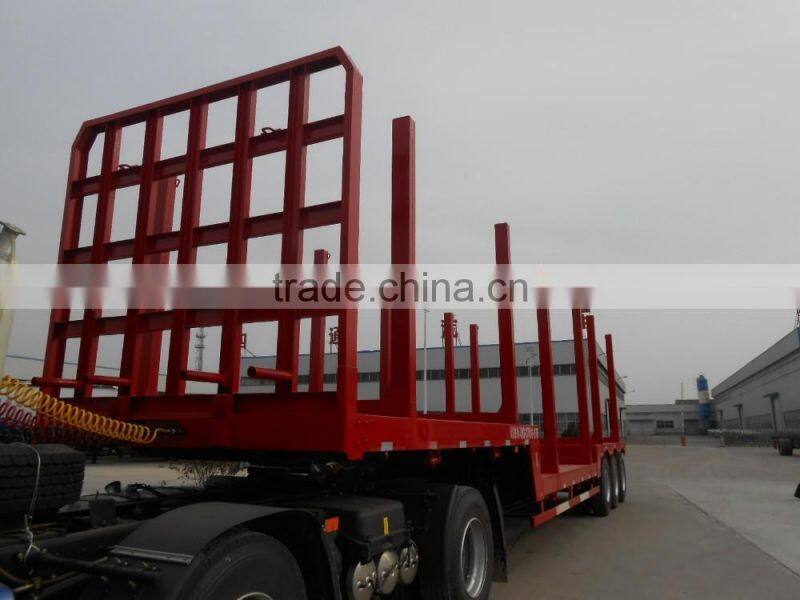

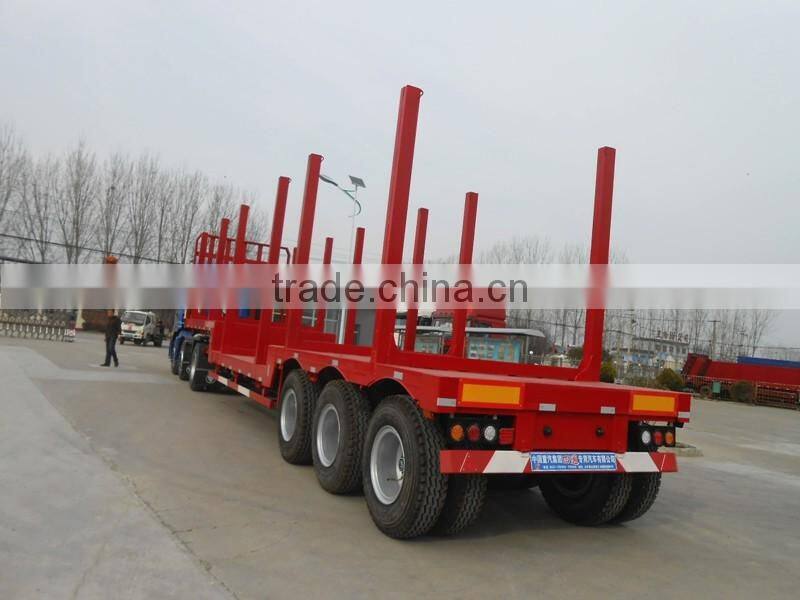

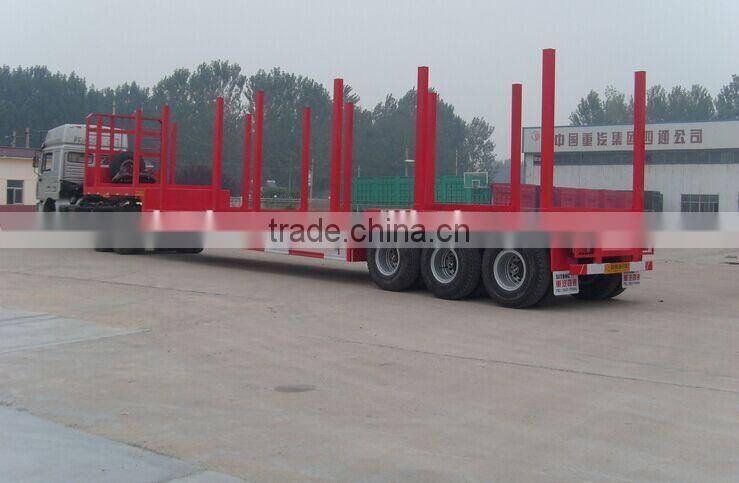

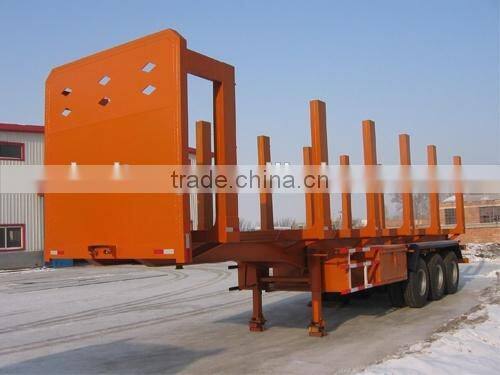

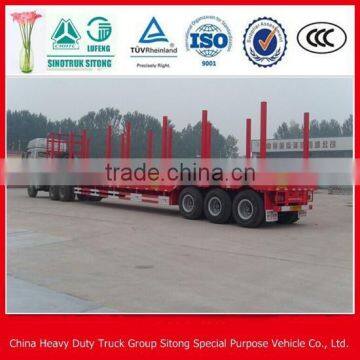

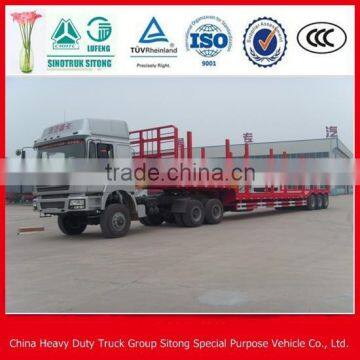

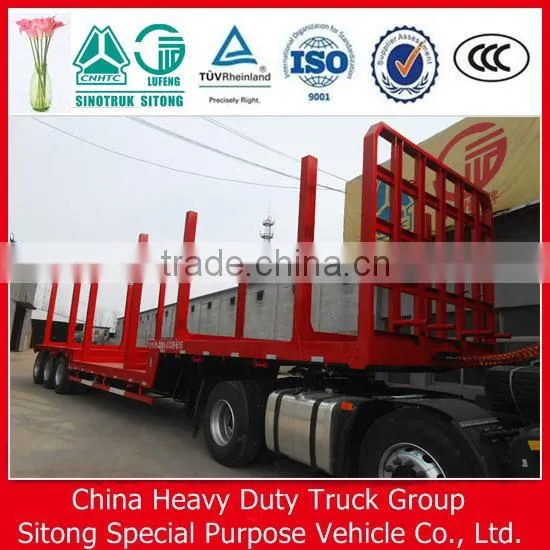

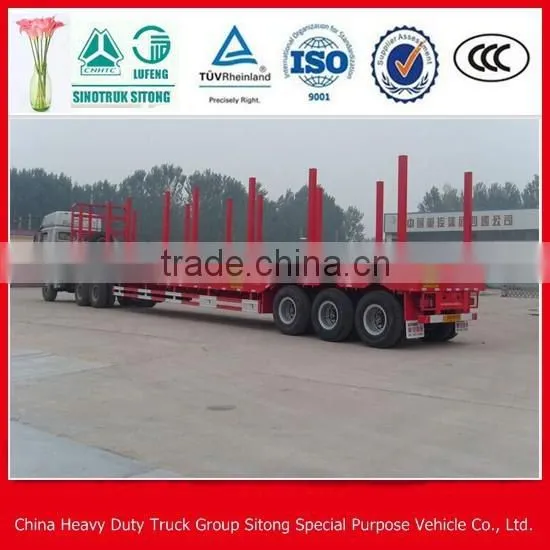

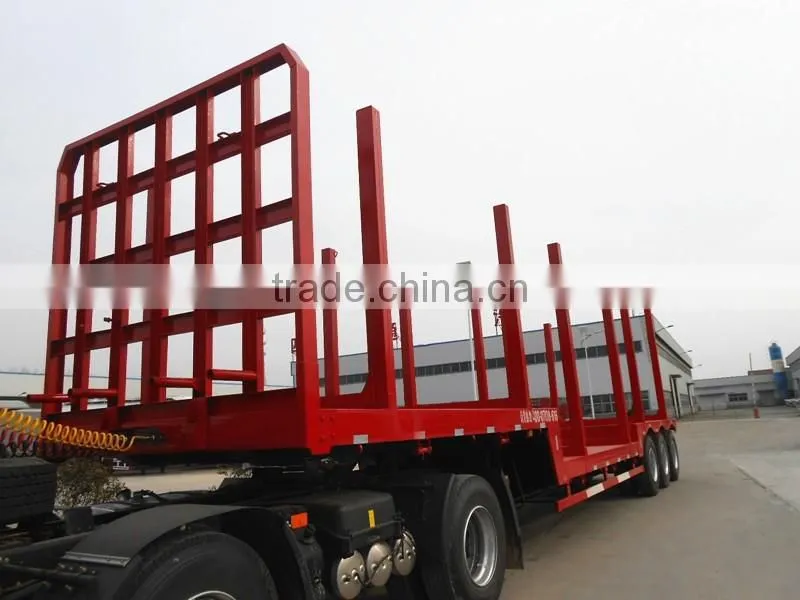

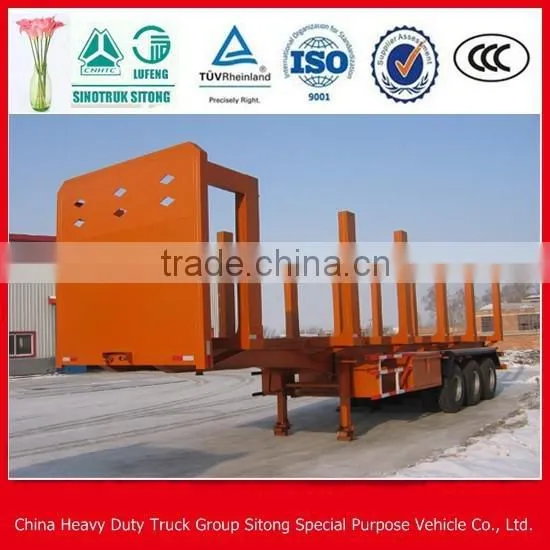

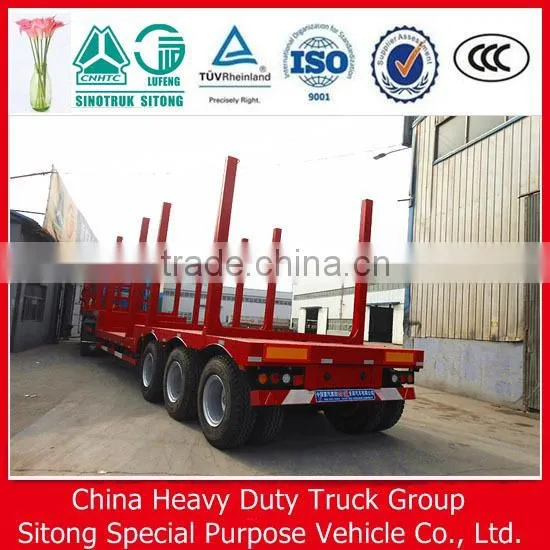

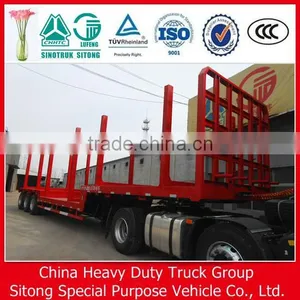

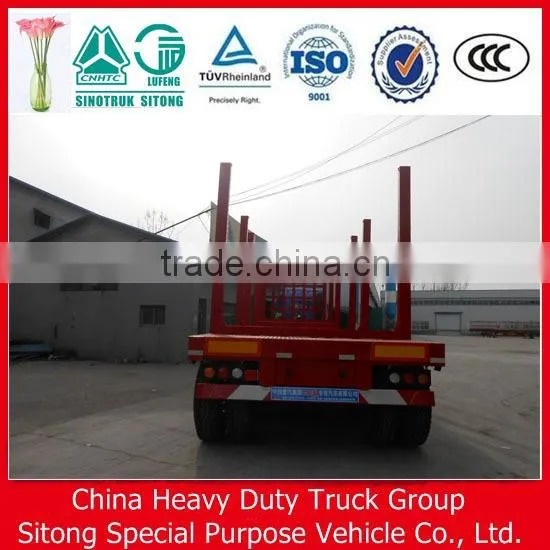

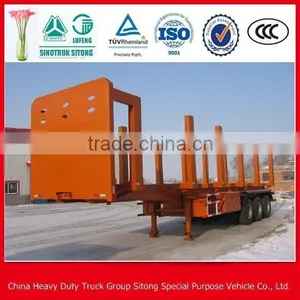

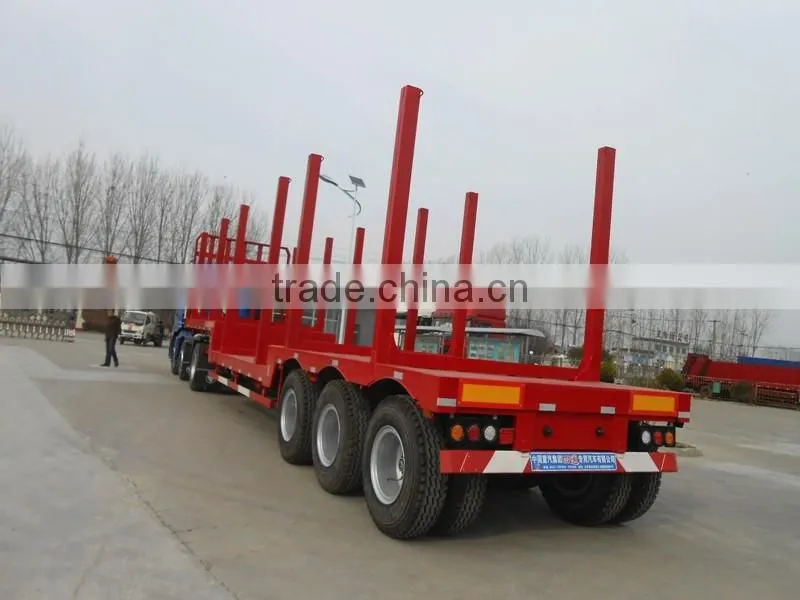

timber semi truck trailer / log loader trailer
the factory is in liangshan which is chinese semi trailer production base
specification for timber semi truck trailer / log loader trailer
product | Log loader semi trailer |
Tare Weight | About 6.8-8.6T |
dimension | 13000mm*2490mm*2860mm(outside dimension) 12800*2300*1800mm(inside dimension) |
Loading Capacity | ≤60T |
Axle | 13T/16T,FUWA/BPW/Huajing Brand |
Wheel Rim | 9.00-22.5 |
Tire | 12.00R22.5/315 80R22.5 |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW Brand) |
Spring leaf | 90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12 |
King pin | Jost brand 2.0 0r 3.5 inch bolts type or welding type |
Suppot leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height:500mm,upon plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel |
Side beam | 16mm or 18mm channal steel (Material is Q235steel) |
Brake chamber | WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber |
ABS | Optional |
Twist Locks | Four,Eightor Twelve pieces(Lifting type or Twist Screw Type) |
Valve | WABCO valve |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways(7 wire harness) |
Tool box | One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint |
Shipping term | Transport by bulk cargo carrier,RORO or 40HQ container |
main product: semi trailer, flatbed trailer, container trailer, skeleton trailer, low bed trailer, fuel tanker trailer, cement bulker, rear tipping trailer or dumper, stake cargo trailer, side wall semi trailer, car carrier trailer, wood transport trailer, full trailer, HOWO truck

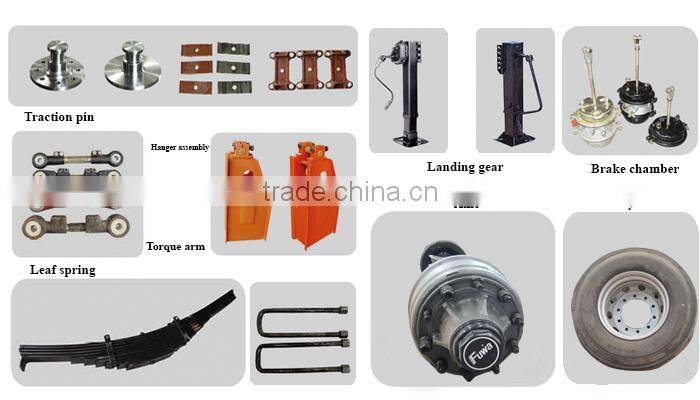

Truck semi trailer parts:
main product: semi trailer, flatbed trailer, container trailer, skeleton trailer, low bed trailer, fuel tanker trailer, cement bulker, rear tipping trailer or dumper, stake cargo trailer, side wall semi trailer, car carrier trailer, wood transport trailer, full trailer, HOWO truck
Our sales market for truck semi trailer:
main product: semi trailer, flatbed trailer, container trailer, skeleton trailer, low bed trailer, fuel tanker trailer, cement bulker, rear tipping trailer or dumper, stake cargo trailer, side wall semi trailer, car carrier trailer, wood transport trailer, full trailer, HOWO truck
item: timber semi truck trailer / log loader trailer
package : wax painting
shipping way: RORO or bulk ship
contact information for truck semi trailer
main product: semi trailer, flatbed trailer, container trailer, skeleton trailer, low bed trailer, fuel tanker trailer, cement bulker, rear tipping trailer or dumper, stake cargo trailer, side wall semi trailer, car carrier trailer, wood transport trailer, full trailer, HOWO truck
Contact information for timber semi truck trailer / log loader trailer
Contact: Polaris Chen
director of international trade department
sitong03 at outlook com
skype: cindy.golden
Tel: 0086 537 2882988
Fax: 0086 537 2882988
Mobile: 0086 15053741628

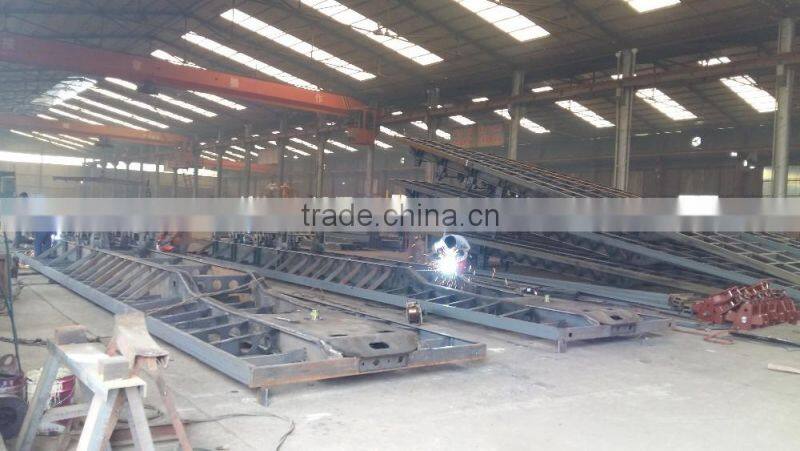

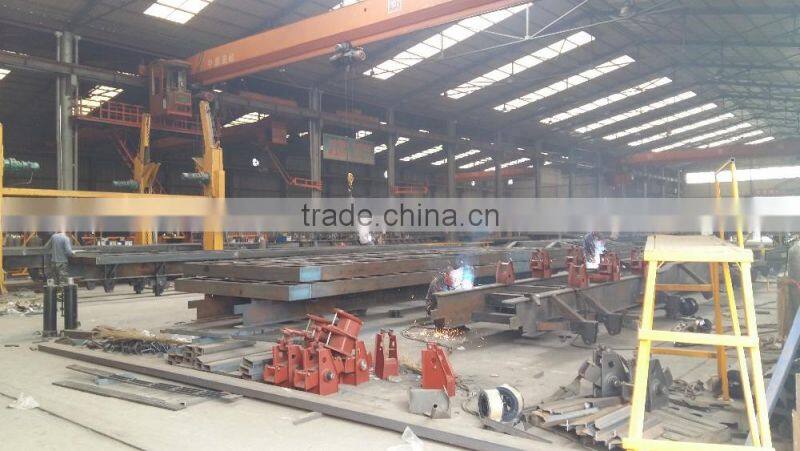

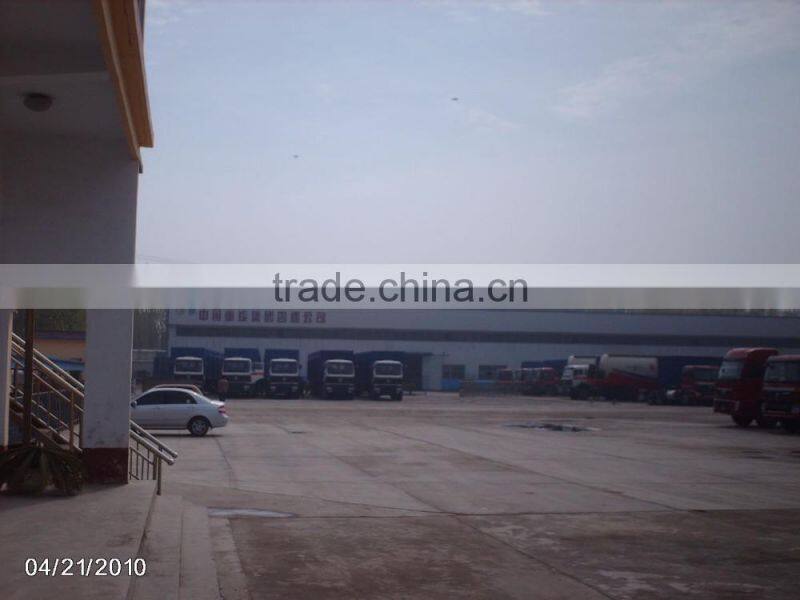

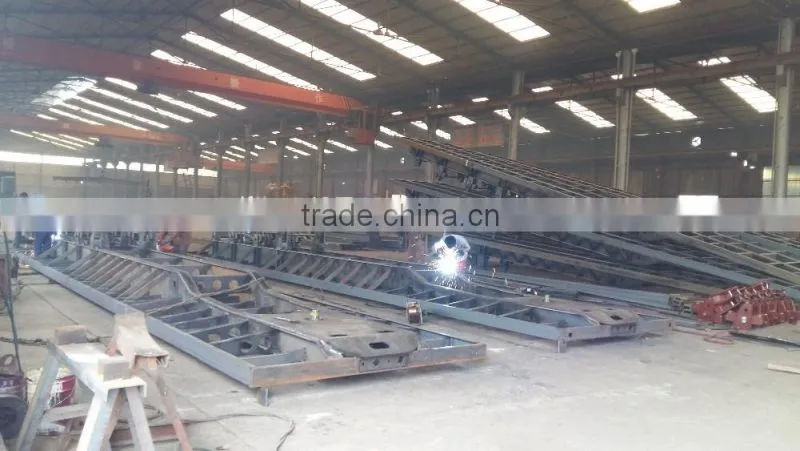

factory photo for truck semi trailer
Main product: semi trailer, flatbed trailer, container trailer, skeleton trailer, low bed trailer, fuel tanker trailer, cement bulker, rear tipping trailer or dumper, stake cargo trailer, side wall semi trailer, car carrier trailer, wood transport trailer, full trailer, HOWO truck
