we are one of the largest semi trailer factory
in semi trailer production base
cattle transport utility stak fence cargo trailer for sale
specification for cattle transport utility stake fence cargo trailer for sale
|
|
Product type |
stake semi trailer |
Outside dimension(mm) |
Length:13000,12500 width:2500 height:3200,3400,3600,3800 |
Inside dimension(mm) |
Length:12850,12350 width:2340 height:1800 |
Gross weight(kg) |
40000-70000 |
Tare weight(kg) |
6500 |
Wheelbase(mm) |
6850+1310+1310,6550+1310+1310 |
Loading capacity(kg) |
33500-63500 |
Axles |
3 13T |
ABS system |
Optional |
|
Maximum loading capacity of semi trailer saddle(kg) |
16000 |
Front/rear suspension(mm) |
-/2230,-/2030 |
Approach/departure angles(°) |
-/15,-/13 |
The number of spring leaves (front/rear) |
-/10/10/10,-/8/8/8,-/4/4/4 |
Rim |
8.25×22.5/9.00×22.5 China brand |
King pin |
JOST 2.00 or 3.5 |
Support legs |
28tons or according to the requirement of the buyer |
The material of main beam |
The height of the beam is 500 mm,upper plate is 14 mm, down plate is 16 mm,middle plate is 8 mm, made of Q345steel |
Brake Chamber |
6 double-chambers |
Electrical System |
24V,7 wire harness |
Tool box |
One piece or according to the requirement of the buyer |
Painting |
Compete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime,2 coats of final paint |
Rear wheeltrack(mm) |
1840/1840/1840 |
Tires |
12 Triangle or othe brand |
Tire specification |
11.00R20 12PR,12R22.5 12PR |
Reflective warning signage |
Manufacturer: Changzhou Hua R Sheng Reflective Material Co., Ltd. Brand:TONGMING Product Type:TM1200-1 |
|
Others
|
1.The length from platform floor to the top of the stake is: 1800mm, 2000mm, 2200mm,2400mm 2. ABS system: type: HNABS4S/4M. Manufacturer: Liangshan Haina Electronic Technology Co., Ltd. 3. Under-run protector: with the material of Q235B,be welding with the main body 4. Rear under-run protector: the height above the ground is 500mm, section:150mm*55mm. |
Shipping terms |
By bulk cargo carrier,RORO |

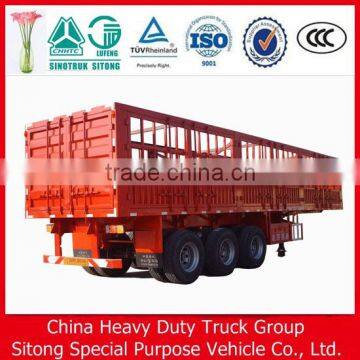

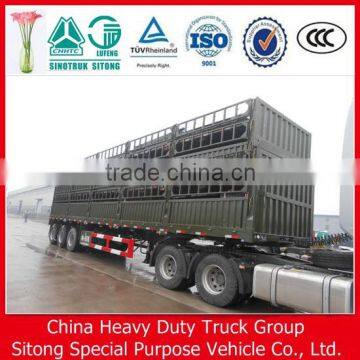

photos for cattle transport utility stake fence cargo trailer for sale
Item: cattle transport utility stake fence cargo trailer for sale
shipping way: RORO, bulk ship, container
package: wax painting
we supply utility cattle transport utility stake fence cargo trailer for sale
production time: 15 days
product range:
Low bed trailer
Flatbed trailer
Skeleton semi trailer
Fuel tanker trailer
Bulk cement trailer
Stake semi trailer
Side wall semi trailer
Rear tipping semi trailer
Box / container semi trailer
Car transport semi trailer
Wood transport semi trailer
Concrete mix truck
Full trailer
HOWO truck head
production line for truck semi trailer
China Heavy- Duty Car Group Liangshan Sitong Special Purpose Vehicle Co., Ltd.
We are one of the largest semi trailer manufacturer in China, our factory was established in 2002, so we have been in semi trailer business line for more than 14 years, and we are the cooperative enterprise with Sino Truck Group.
Our factory is located in Quanpu Industrial Zone, Liangshan, Jining city, Shandong province, China (Mainland). We own 76, 000 square meters production base with 20,000,000 registered capital 130,000,000 fixed assets, and our annual production capacity can reach 6,000 sets semi trailer. In our factory, there are 750 workers, 63 technologists and four engineers.
The following are our main products:
Low bed semi trailer
Flatbed semi trailer
Skeleton semi trailer
Fuel tank semi trailer
Bulk cement tank semi trailer
Stake semi trailer
Side wall semi trailer
Rear tipping semi trailer
Box / container semi trailer
Car transport semi trailer
Wood transport semi trailer
Concrete mix truck
Full trailer
HOWO truck head
Our products have been exported into Vietnam, South Africa, Mozambique, Pakistan, Brazil, Australia, Algeria and so on. We have owned certificates including ISO9001:2008 and CCC.
Warmly welcome all of friends and customers to visit our factory!
Contact: Polaris Chen
director of international trade department
sitong03 at outlook com
skype: cindy.golden
Tel: 0086 537 2882988
Fax: 0086 537 2882988
Mobile: 0086 15053741628
1.Are you manufacture?
Yes. We are one of leading manufacturers for Kinds of pneumatic torque
wrench with many new production line.
2.What's your guarantee?
On the product of "Three Guarantees".
The main components of the warranty period(See table):
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
3.Is OEM available?
Yes, OEM is available.
